SuperLogics SL-LCD-10A-RTOUCH-SUN-1 10" Industrial Touchscreen Display Monitor for RYDM

$1,161.00
SKU SL-LCD-10A-RTOUCH-SUN-1

SuperLogics SL-LCD-10A-RTOUCH-SUN-1 10" Industrial Touchscreen Display Monitor for RYDM

Description

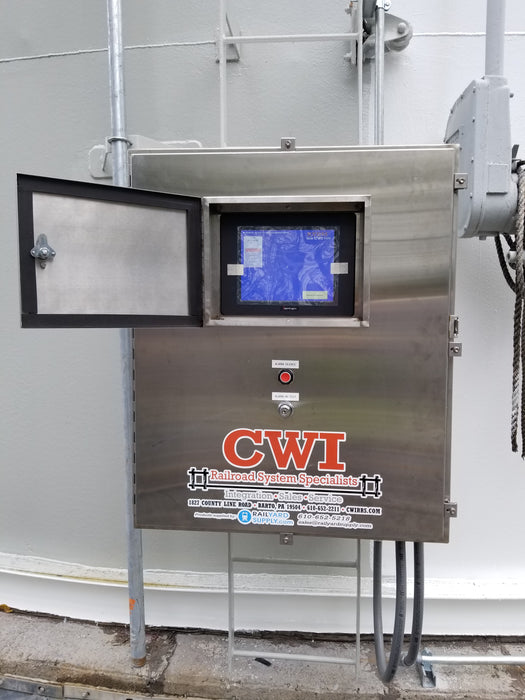

Touchscreen user interface for RYDM (Rail Yard Data Management systems).  10" LED Industrial display stands up to rugged and harsh IP65 NEMA4 (front panel) environments.

Quick Specs

  • Screen Size (inches): 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 1000
  • Ports: VGA Port In, DVI-I In
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

Technical Specifications

Display
  • Screen Size (inches): 10
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 1000
  • Display Area (H): 211.2mm
  • Display Area (V): 158.4mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 256 K
  • Contrast Ratio: 500:1
  • Backlight: LED
  • Viewing Angle(U) : 60
  • Viewing Angle(D) : 60
  • Viewing Angle(L) : 50
  • Viewing Angle(R) : 50
Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

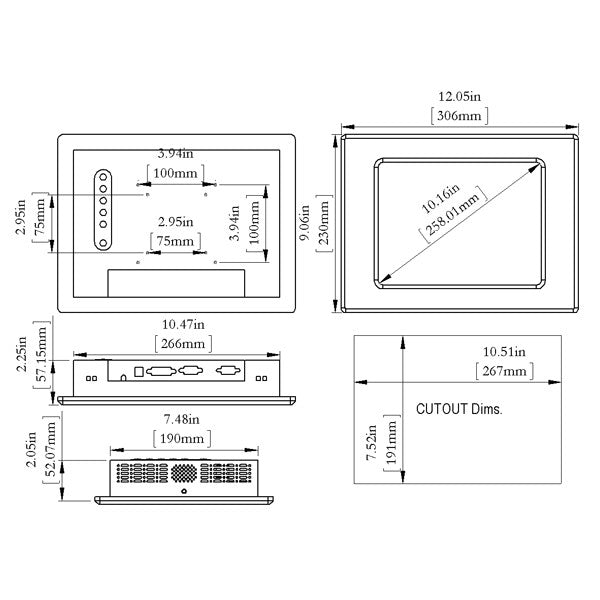

  • Suggested Cut-Out Dimension (Width): 268mm
  • Suggested Cut-Out Dimension (Height): 191mm
Physical
  • Width: 12.1inches
  • Height: 9.2inches
  • Depth: 2.26inches
  • Depth (Inches): 2.26
  • Unboxed Weight: 6lbs
  • Shipping Weight: 25lbs
Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 70C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 70C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 8.3Watts
Compliance of Component
  • CE
  • CCC
Warranty
  • Warranty: 1 year
Features
  • Screen Size: 10"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 1000
