Morrison Bro. Fig 9095SA Overfill Prevention Valve - SA Series
Item Series:
Morrison Bro. Fig 9095SA Overfill Prevention Valve - SA Series
Downloadable Resources:
FIG 9095SA SPECIFICATION SHEET
FIG 9095SA INSTALLATION INSTRUCTIONS
SPILL CONTAINMENT AND CORRESPONDING OVERFILL PREVENTION VALVES

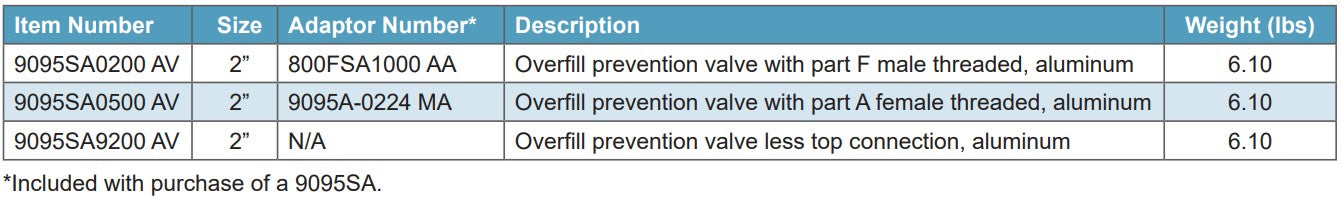

Product Ordering Information:
Products Description & Features:
Description:
The 9095SA Overfill Prevention Valve is installed at the fill port of a storage tank. Used in a pressurized tight fill application, the valve helps prevent tank overfills by closing when the liquid level reaches a pre-set warning level (90-95% full). The valve is installed on a standard 2” NPT male connection and has a built-in bleed hole that allows the fill hose pressure to be relieved after the valve closes. This bleed hole also provides anti-siphon protection for the valve. When installed to manufacturer requirements, the Morrison 9095SA Overfill Prevention Valve can eliminate hazardous liquid spills.
For use on clean product only. Not recommended for motor oil based on viscosity of 300 centistokes.
Features and Details:
Direct Fill Installations • Installs on tank top by threading onto a 2 inch male NPT riser
• Installs inside 2” Morrison Model 516 or 518 tank top spill container Remote Fill Installations • Valve has 2” female NPT inlet threads for installation piping to remote fill
point • Field adjustable shutoff range between 2” to 12” • Full flow until shutoff point
• Designed for fuel not requiring a drop tube • Integral pressure relief.
Materials Of Construction:

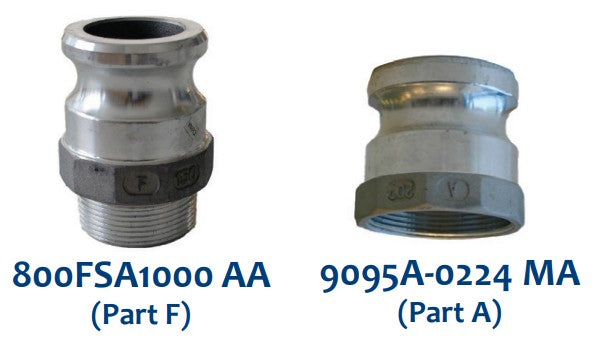

Direct fill adaptor: Aluminum (Part A or Part F), Body and piston: Passivated aluminum, Upper float rod: Stainless steel, Lower float rod: Passivated aluminum, Float: Polypropylene, Float guard: Polypropylene.
Operational Criteria:
• Minimum 5 PSI flow requirements • Maximum operating pressure is 100 PSI

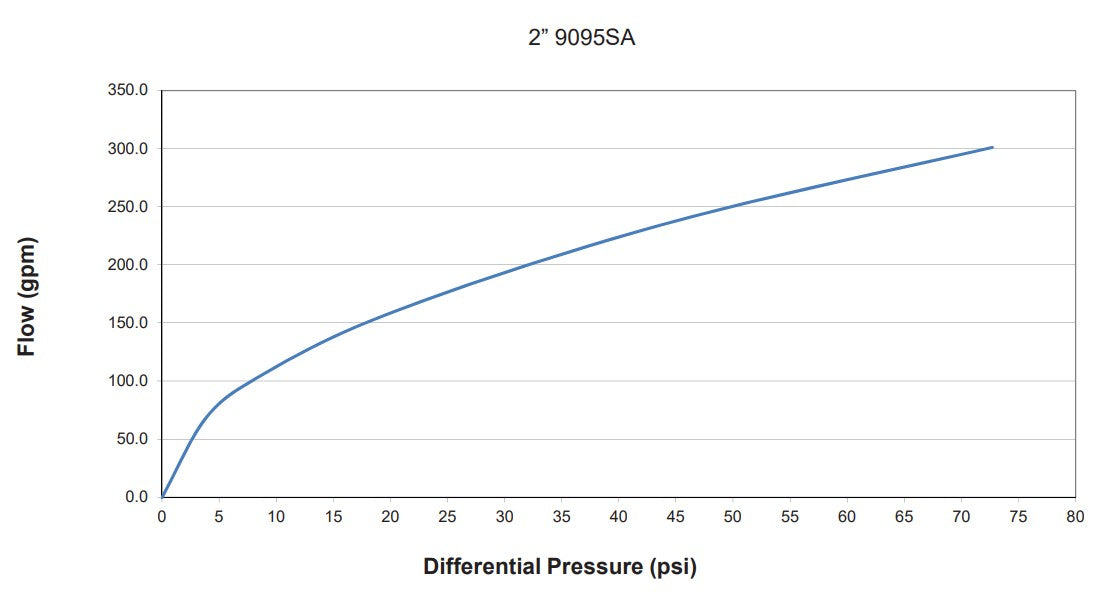

• Maximum viscosity of 300 centistokes • A tight fill connection is required for the valve to operate • The estimated flow rate is 110 GPM at 10PSI pressure drop. (See flow curve.)
Code Compliance:
UL 2583 listed, NFPA 30, 30A, UFC, IFC, PEI/RP 200, PEI/RP 600, and Florida DEP EQ-858.
Fluid Compatibility:
Diesel fuel, Biodiesel, and fuel oil. (Other fluids may also be compatible with further review).
