Ashcroft 50-EL60R-040 5" Bi-Metal Thermometers

$130.00
SKU 50-EL60R-040

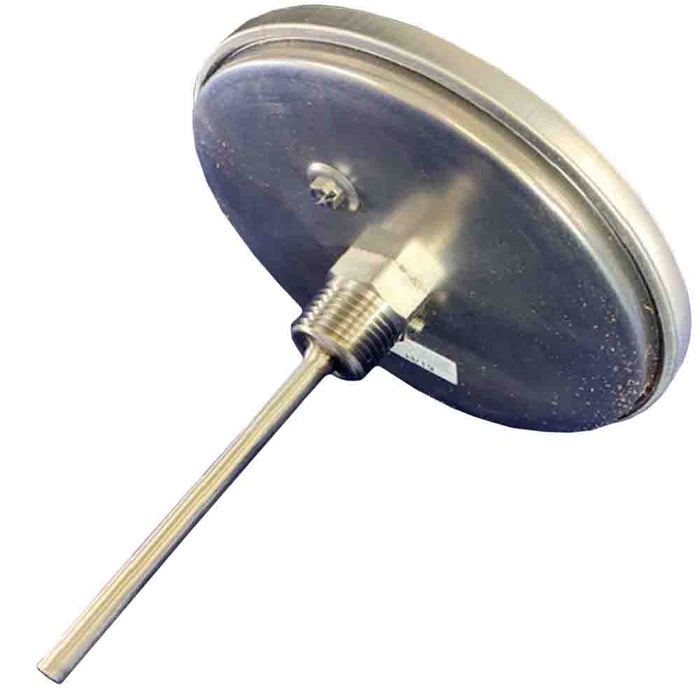

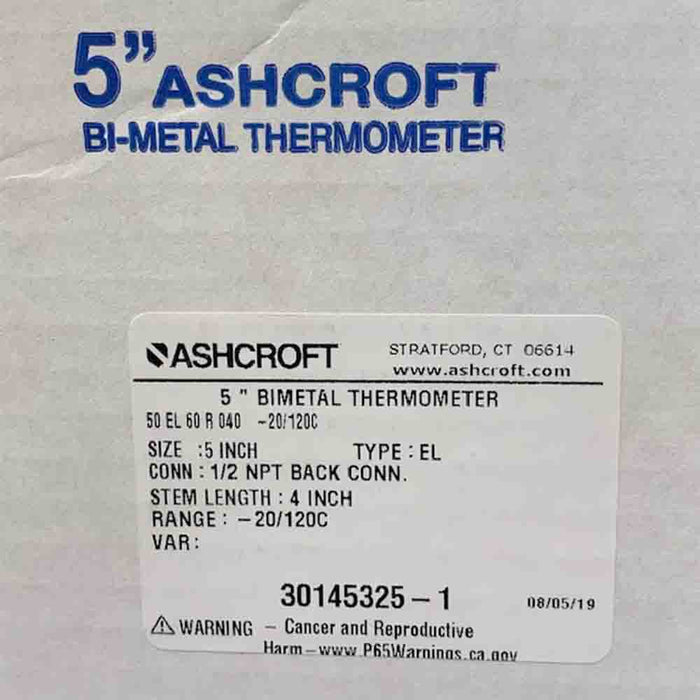

Ashcroft 50-EL60R-040 5" Bi-Metal Thermometers

Downloads

Data Sheet

Installation Manual

P/N Cross Reference

Description

The Ashcroft EL bimetal thermometer provides high quality and performance measurement.  This product is ideal for temperature measurement when vibration is present.

Key Features

  • Robust, hermetically sealed case
  • External adjustment allows quick, limited span adjustments; reduces
    maintenance and recalibration costs
  • Maxivision® dial for easy readability and parallax elimination
  • Everyangle provides almost 360-degree dial positioning

Specifications

  • Accuracy: ±1% full scale ASME B40.200 (B40.3 Grade A)
  • Dial size: 5"
  • Stem Length: 4"
  • Process Connection: 1/2" NPT
  • Temperature Range: 0-120 deg F
  • Mount Connection: Center Back
  • NEMA 4X / IP66 Enclosure
  • Approvals: RoHS
  • Liquid Filled

Applications

Process Market:
  • Offshore Oil Rigs
  • Chemical and Wastewater Pressure Control
  • Pulp and Paper
  • Refineries
  • Power
Industrial Market:
  • General Industrial
  • HVAC
  • Equipment Skids
Medical and Life Sciences:
  • Pharmaceutical / Biotech
  • Food and Beverage
