898020-601-00R Portable High Speed Derails, Yellow, Right Hand Throw, Flag Not Included
$2,660.00
SKU 898020-601-00R
898020-601-00R Portable High Speed Derails, Yellow, Right Hand Throw, Flag Not Included
Downloads
Specifications
- Model #: 898020-601-00R
- Derail Color: Yellow
- Derail Direction: Right Hand Throw
- Flag/Staff Color: Not Included
- Weight: 60 lbs.
- Speed Rating: 20.8mph
Features
- Patent Pending #16/556,053
- Covers 75-141lb Rail
- TTCI Testing Derailed Locomotive at 20.8 mph
- Easy Installation
- Can be Padlocked to Rail Head
- Made from High Strength Steel
- Sits 2-7/8” Above Railhead

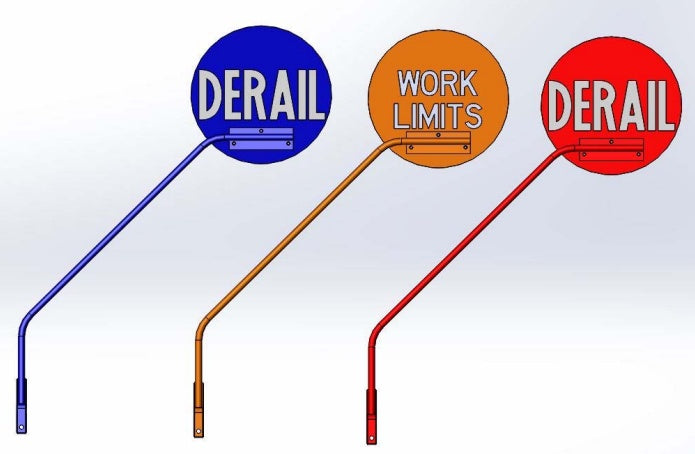

- Complete with Flag and Staff
- Other Derail Colors Available Upon Request
Description

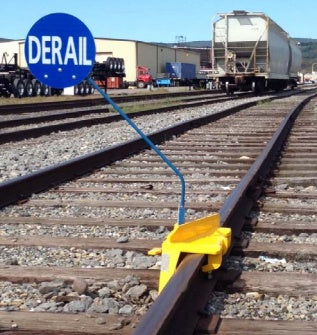

A derail is a device that will derail any railroad rolling stock, including mainline locomotives. Employees working on or around the track with nearby rolling stock, must be protected by a derail. As the flange of the train wheel comes in contact with the derail, it lifts the wheel and deflects it away from the rail head, and thus, the wheels are halted by becoming imbedded in the track ballast.
