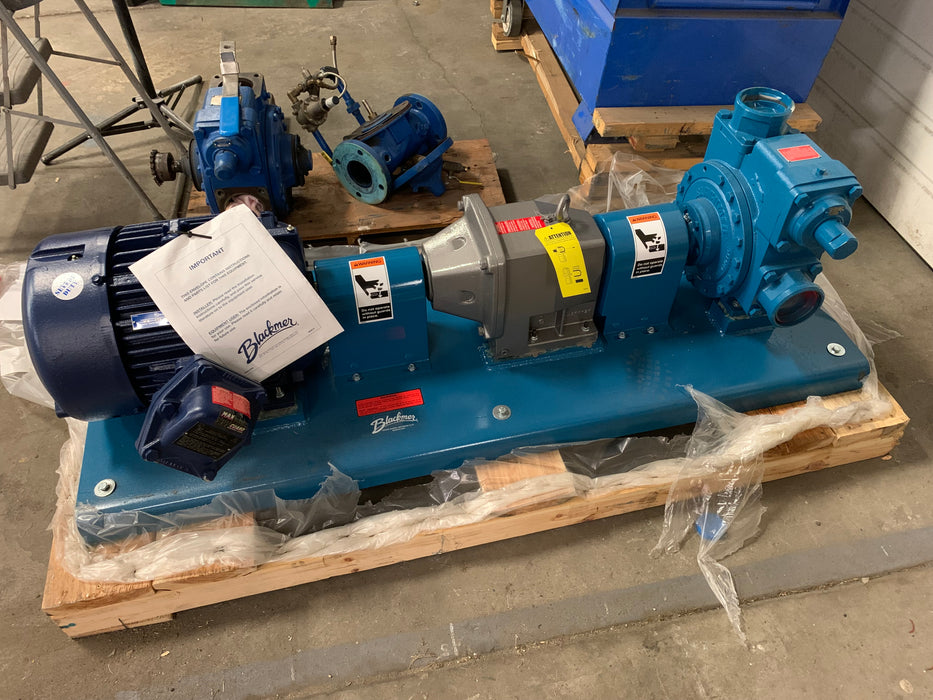

Blackmer XL4C Pump Skid, 4" Pump, Sliding Vane Positive Displacement
Blackmer XL4C Pump Skid, 4" Pump, Sliding Vane Positive Displacement, 15 hp Motor
Downloads:
Quick Specs:
- Size: 4"
- Model: XL4C
- Manufacturer: Blackmer
- Type: Rotary Vane, Sliding Vane, Positive Displacement
- Flow Rate: 104 - 345 gpm
- Motor: 15 HP
- Max Working Pressure: 350 psi
- Product String: XL4C/4/1R/S0/2/3/2/0/0/0/0/W/0/MT
/ZZ/ZZ/ZZ/MTRB/XP929232
Ask about CWI loading systems and skids! Designed and built in-house.
Pump Model XL4C Ductile Iron sliding vane pump
with a liner,
mechanical seals, external ball bearings, integral relief
valve, singleended-
keyed shaft, and flanged pipe connections.
4 Vanes - Duravane®
1R SE Keyed Rot/Shaft, RH Rot
S0 SVCV Seal (Sta: Steel / FKM Rot: Carbon / FKM)
2 Corrosion Resistant Relief Valve
3 51-75 PSI STE RV Spring
2 FKM Elastomers
W 4" Weld Flanges
High Speed Coupling Guard (BLKP31507)
Low Speed Coupling Guard (BLKP31508)
Nord Gear Reducer SK42W 3.02:1 Ratio (BLKP80327)
CPLG HALF C5018 W/ .3125 KEY 1.25" BORE
(BLKP91822)
CPLG HALF C5018 W/ .500 KEY 1.875" BORE
(BLKP91823)
CPLG HALF L150 LVJY 1 1/2" B (BLKP91824)
(4) STUD 3/8-16 X 2.00" STEEL (BLACK OXIDE)
(BLKP92072)
(4) STUD 1/2-13 X 2.00" STEEL (BLACK OXIDE)
(BLKP92073)
BENT METAL BASE WELDED PADS
XL4-SK42W-254T (BLKP99327) XP929232 15 HP
1800 rpm 60 Hz 3 ph 230/460 Volt 254T Expl. Proof
Motor
