Morrison Bros Fig. 603ALC, 603ALF, 603ALV Tank Truck Emergency Valves
Item Series:
Morrison Bros Fig. 603ALC, 603ALF, 603ALV Tank Truck Emergency Valves
Downloadable Resources:
FIG 603 MANUAL SPECIFICATION SHEET

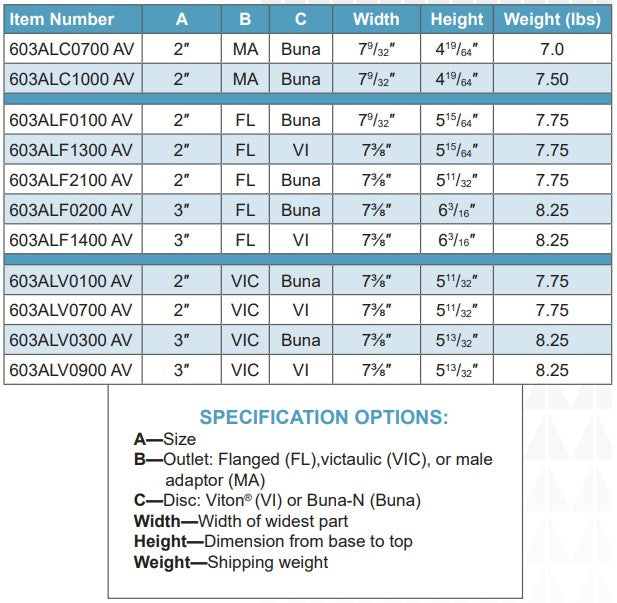

Product Ordering Information:
Products Description & Features:
Description:

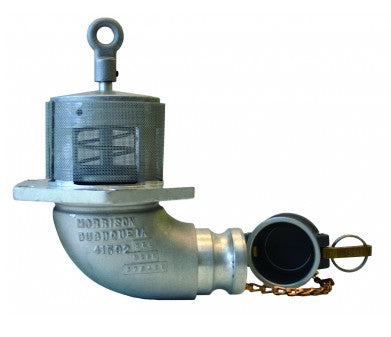

FIG 603ALC - Emergency Valve - Male Adapter Outlet With Screen

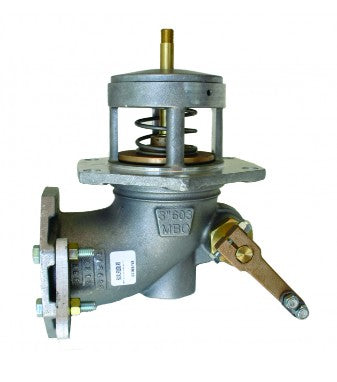

FIG 603ALF - Tank Truck Emergency Valve - Flanged

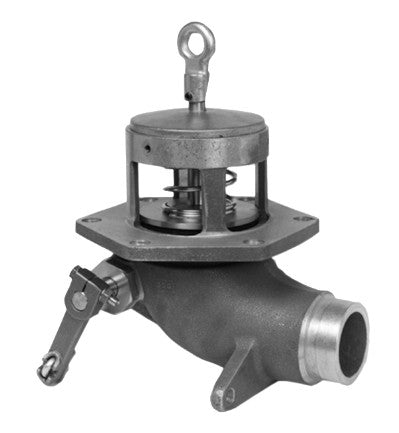

FIG 603ALV - Tank Truck Emergency Valve - Victaulic Outlet
Tank truck emergency valves provide flow control at the bottom of tank truck compartments. The normally closed valves are manually opened to gravity drop product transported to underground storage tanks.
Standard Features and Details:
• 90° space saving design • Can be converted from left hand operation to right hand operation • Integrated shear section breaks upon impact, closing the valve and containing the product in the tank • Valve equipped with 250°F fusible plate that melts in the event of
a fire allowing the valve to close • Optional inlet screen keeps debris out of the valve seats
• Optional plunger bail available • Companion flanges available • 603ALC has male cam and groove outlet connection • 603ALF has flanged outlet connection • 603ALV has victaulic outlet connection.
Materials of Construction:
• Aluminum body and cap • Brass plunger • Buna-N or Viton® discs • Stainless steel spring.
Options:
• 2″, 3″, and 4″ inlet screen available and sold separately.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
