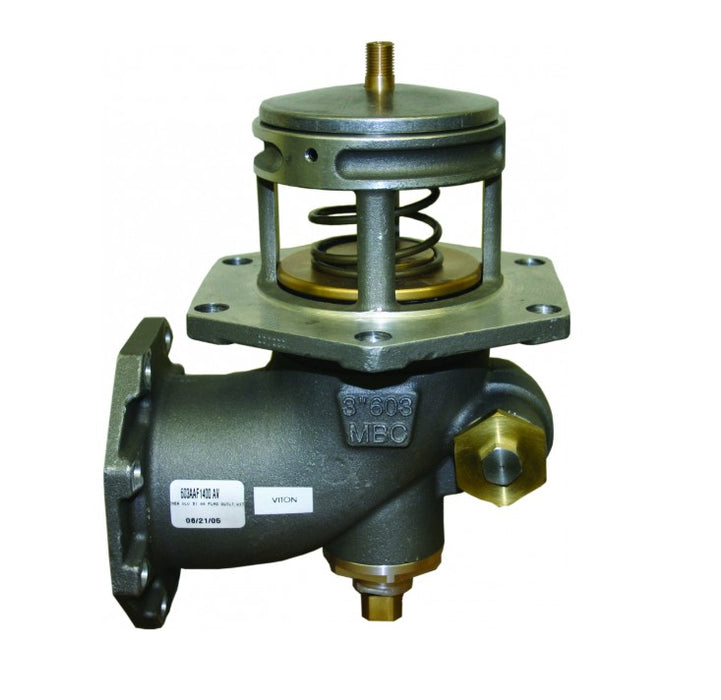

Morrison Bros Fig. 603AAF, 603AAV Tank Truck Emergency Valves - (Flanged & Victaulic) - Air - Actuated, 3"
Item Series:
Morrison Bros Fig. 603AAF, 603AAV Tank Truck Emergency Valves - (Flanged & Victaulic) - Air - Actuated, 3"
Downloadable Resources:
FIG 603 3-INCH AIR-ACTUATED SPECIFICATION SHEET

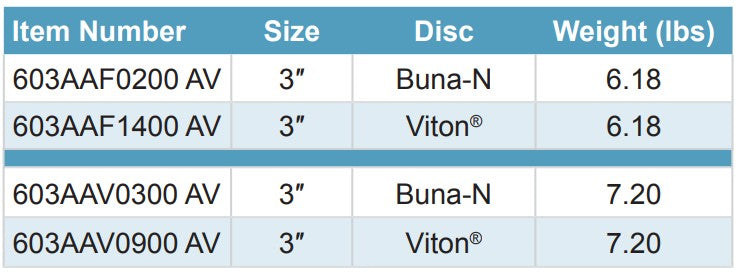

Product Ordering Information:
Products Description & Features:
Description:
Tank truck emergency valves provide a safe means of flow control of in the outlet of tank truck compartments. The normally closed valves are opened and closed by compressed air.
Standard Features and Details:
• Field replaceable Bimba® pneumatic cylinder • Redundant (manual override) jackscrew allows product to be released in the event of an air system failure • Tapered seat for positive seal • 212°F fusible port supplied • ⅛″ NPT air ports to accept common size airlines • Mates with standard TTMA sumps • 603AAF has flanged outlet connection
• 603AAV has Victaulic™ outlet connection.
Construction Details:
• Body and cap… Aluminum • Plunger… Brass • Discs... Buna-N, Viton®, or Flourosilicone
• Air cylinder sleeve seals… Viton®.
