Morrison Bro. Fig 9095DS, 9095DSB Overfill Prevention Valve - DS Series
Item Series:
Morrison Bro. Fig 9095DS, 9095DSB Overfill Prevention Valve - DS Series
Downloadable Resources:
FIG 9095DS SPECIFICATION SHEET
FIG 9095DS INSTALLATION INSTRUCTIONS

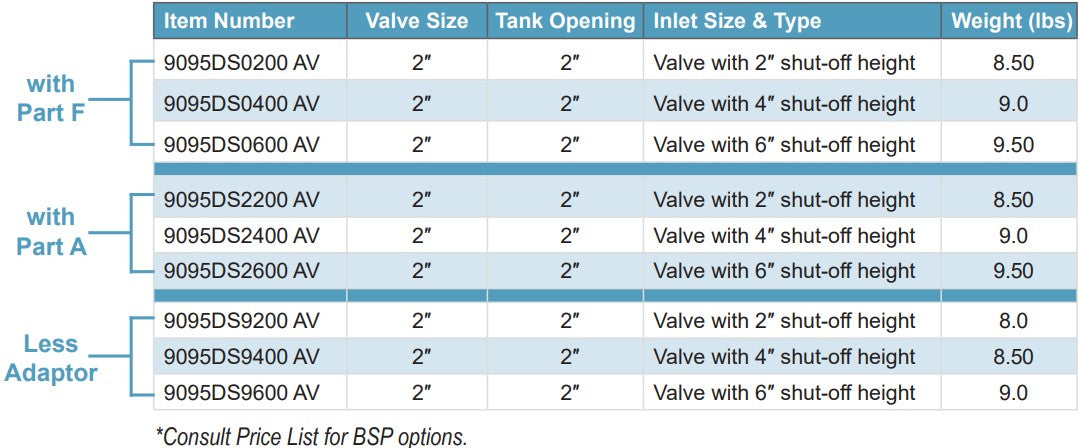

Product Ordering Information:
Products Description & Features:
Description:
The 2” Morrison Overfill Prevention Valve is designed for use on low profile top loading storage tanks that require a high level shut-off. Once the product reaches the preset level the valve will close and allow minimal liquid to pass through to relieve the fill line pressure. The valve can be retrofitted on existing tanks and fits into a 2” opening. This valve accepts a 1½” male threaded drop tube (not included).
For use on clean liquids only. Not suitable for motor oil.
Features and Details:
• Fits a 2” opening and accepts a drop tube.• Integral mechanical test mechanism. • The valve design allows for a full flow up until the shut-off height. • The valve shut-off height is factory preset and is measured from the bottom of the attachment threads.
• Minimum shut-off height is 2” from top of tank.
Materials Of Construction:
Adaptor: Anodized aluminum (Part A or Part F), Body: Passivated aluminum, Float: Gasoline and diesel compatible, Plunger and dashpot: Brass, Shut-off mechanism: Brass.
Product Warnings And Caution:

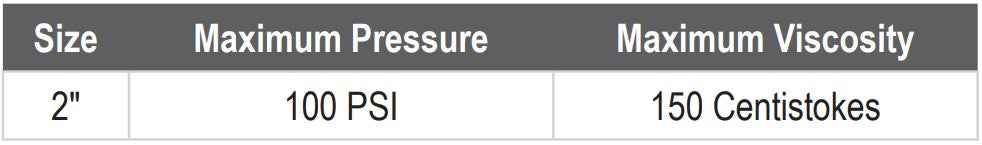

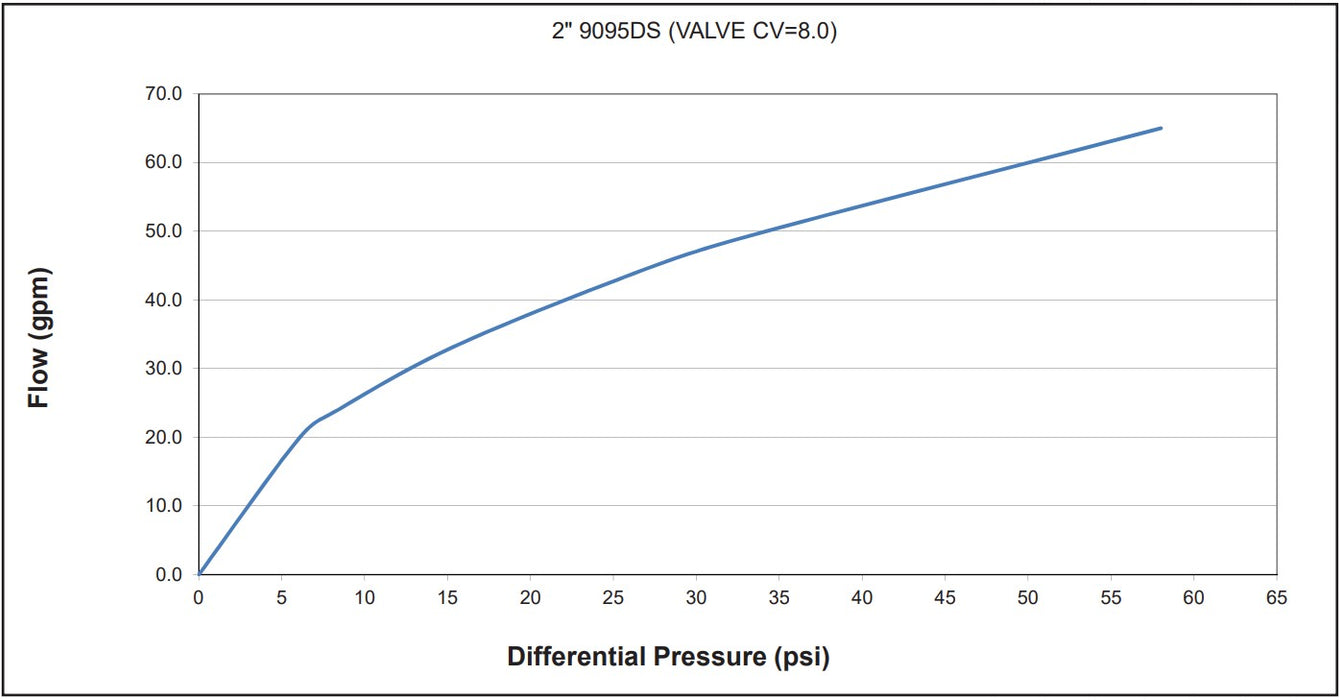

• A pressurized tight fill connection is required for operation • 10 PSI is the minimum pressure and flow requirements for valve operation. Valve will NOT function in gravity fill applications. • The maximum fluid viscosity is 150 centistokes • The maximum operating pressure is 100 PSI • The valve flow rate is 60 GPM at 60 PSI pressure drop • The valve flow rate is 26 GPM at 10 PSI pressure drop • 2” 305C Locking Cap is sold separately
• Consult Morrison Bros. Co. for product compatibility with the valve.
Installation Information:
The valve can be installed in various tank configurations:
• Installed directly onto a 2” female threaded opening in the tank top.
• Installed between a Morrison 516M, 517, or 518M Spill Container and the tank top.
Code Compliance:
Florida DEP EQ-1007, NFPA 30, 30A, UFC, IFC, PEI/RP 200, and PEI/RP 600
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
