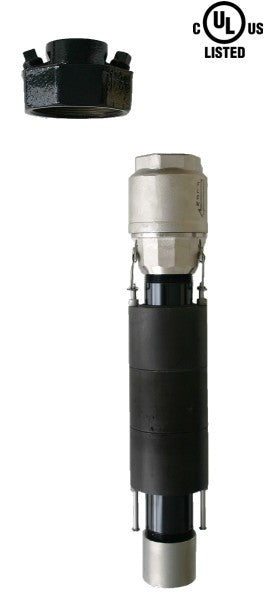

Morrison Bro. Fig 9095AM Overfill Prevention Valve - AM Series (Methanol)

by Morrison Bros Co
$1,829.92
SKU 9095AM3200 AV

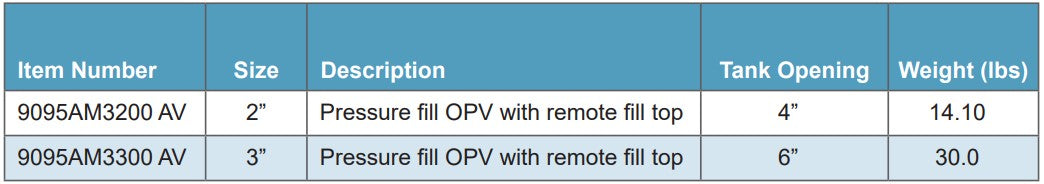

Item Numbers

Item Series:

Morrison Bro. Fig 9095AM Overfill Prevention Valve - AM Series (Methanol)

Downloadable Resources:

FIG 9095AM SPECIFICATION SHEET

FIG 9095AA (2") INSTALLATION INSTRUCTIONS

Product Ordering Information:

Products Description & Features:

Description:

The 9095AM series overfill prevention valve is designed to prevent overfilling
storage tanks by providing a positive shut-off during a pressurized fill.

Standard Features:

• Installs directly onto a 4” or a 6” riser or top mounted spill container • Minimum shut-off height is 2” from the tank top • 2.35” of float height adjustment • Full flow to shut-off point, cushioned closure eliminates shock • Integral pressure relief • Integral anti-siphon function.

Materials Of Construction:

Remote adaptor: ductile iron, powder coated, Body: nickel plated aluminum, Drop tube coupler: stainless steel, Lower pipe nipple: e-coated steel, Shaft, linkage and hardware: stainless steel.

Operational Criteria:

    Minimum 5 PSI flow requirements, Maximum operating pressure is 100 PSI, Maximum viscosity of 300 centistokes, A tight fill connection is required for the valve to operate, Use methanol-compatible threaded pipe (not supplied: drop tube nor upper pipe), The estimated flow rate for the 2” model is 230 GPM at 10 PSI pressure drop. The estimated flow rate for the 3” model is 560 GPM at 10 PSI pressure drop

    Code Compliance:

    UL 2583 listed, NFPA 30, 30A, UFC, IFC, PEI /RP200, PEI/RP 600, and Florida DEP EQ-895

    Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
