Morrison Bro. Fig 9095AA Overfill Prevention Valves - AA Series (3")
Item Series:
Morrison Bro. Fig 9095AA Overfill Prevention Valves - AA Series (3")
Downloadable Resources:
FIG 9095AA (3”) SPECIFICATION SHEET
FIG 9095AA (3”) INSTALLATION INSTRUCTIONS
SPILL CONTAINMENT & CORRESPONDING OVERFILL PREVENTION VALVES
Product Ordering Information:

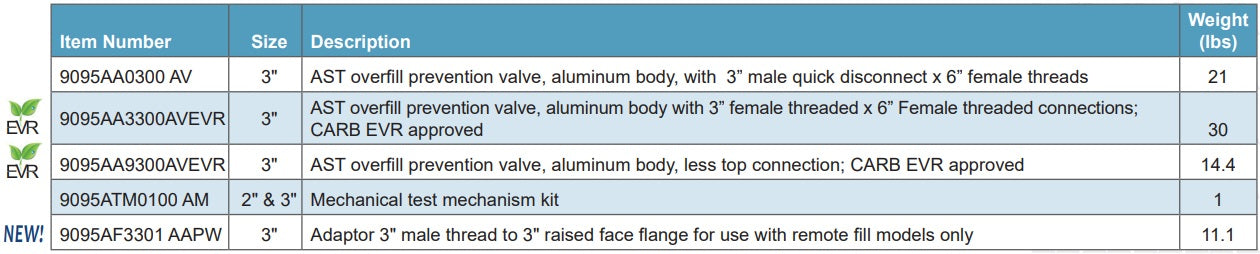

9095AA (3") Item Numbers Chart and Information
Product Video:
9095 SERIES OVERFILL PREVENTION VALVE
Products Description & Features:
Description:

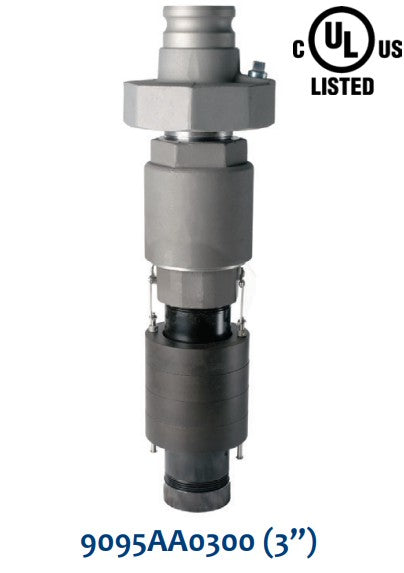

The 9095AA (3") valve is installed at the fill port of a storage tank. Designed for use in pressurized fill systems and requires a tight fill connection. The valve installs in a standard 6” NPT male riser connection and can be set to the desired 90% or 95% shut off level by using standard length pipe nipples.
When installed to the manufacturer’s specifications, the overfill prevention valve can help eliminate hazardous spills. A mechanical test mechanism is available and sold separately. The test mechanism allows a technician to pull the test line at any time during the filling process to actuate the float and stop the fill. This allows a technician to verify the valve is working properly. For use on clean liquids only.
Standard Features:

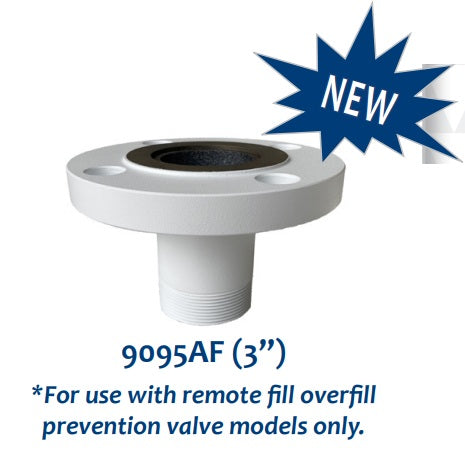

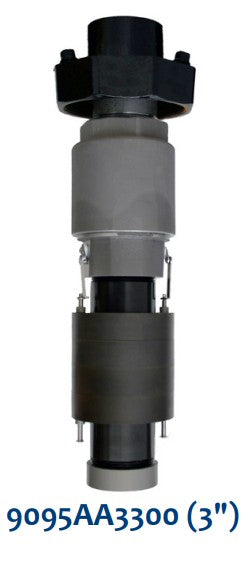

• Installs on tank top by threading onto a 6" male NPT riser • Direct fill adaptor has 3" male quick disconnect • Remote adaptor has 3" female NPT inlet threads for piping to remote fill point • Full flow until shut-off point • 1.23” of float height adjustment
• Integral pressure relief • Integral anti-siphon function • Optional test mechanism
• Drop tube adaptor accepts 3" drop fill tubes (Morrison 419).
Construction Details:
Quick disconnect adaptor: Passivated aluminum. Remote adaptor: E-coated ductile iron, Shaft, linkage, and hardware: Stainless steel, Lower pipe nipple: E-coated steel, Drop tube adaptor: Passivated aluminum.
Operational Criteria:

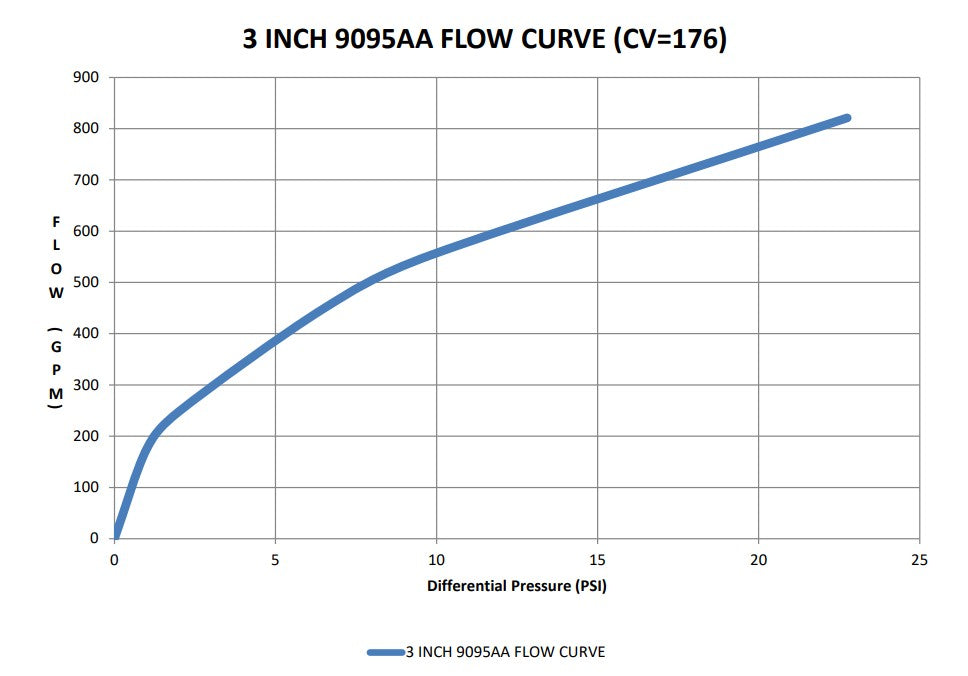

Minimum 5 PSI flow requirements, Maximum operating pressure is 100 PSI, Maximum viscosity of 300 centistokes, A tight fill connection is required for the valve to operate, The estimated flow rate is 560 GPM at 10 PSI pressure drop.
Code Compliance:
UL 2583 listed, NFPA 30, 30A, UFC, IFC, PEI /RP200, PEI/RP 600, Florida DEP EQ-851, and California EVR models available.
