Morrison Bro. Fig 9095AA Overfill Prevention Valves - AA Series (2")
Item Series:
Morrison Bro. Fig 9095AA Overfill Prevention Valves - AA Series (2")
Downloadable Resources:
FIG 9095AA (2") SPECIFICATION SHEET
FIG 9095AA (2") INSTALLATION INSTRUCTIONS
SPILL CONTAINMENT & CORRESPONDING OVERFILL PREVENTION VALVES

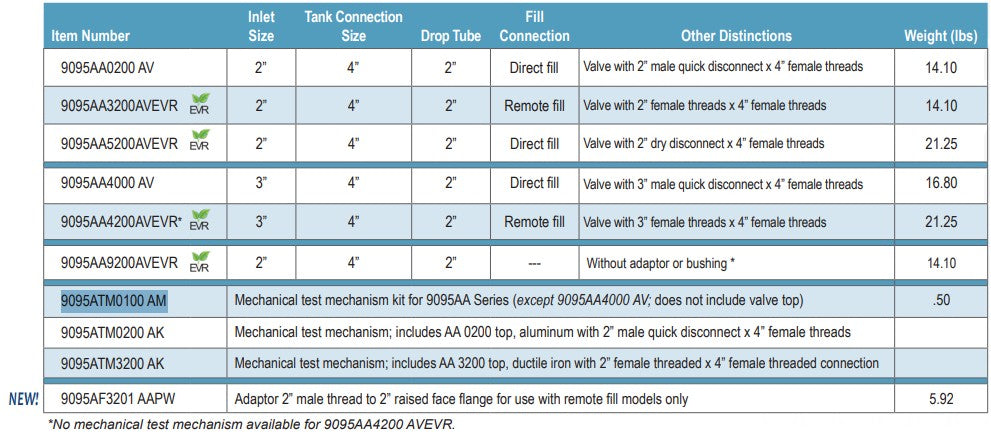

Product Ordering Information:
Product Video:
9095 SERIES OVERFILL PREVENTION VALVE
Products Description & Features:
Description:

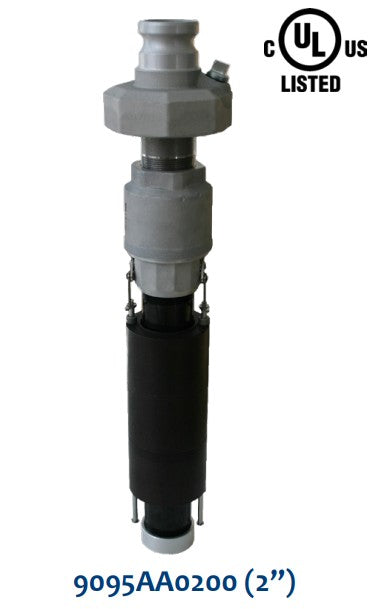

The 9095AA 2” series overfill prevention valve is designed to prevent overfilling
storage tanks by providing a positive shut-off during a pressurized fill.
NOTE: For use on clean liquids only.
Standard Features:

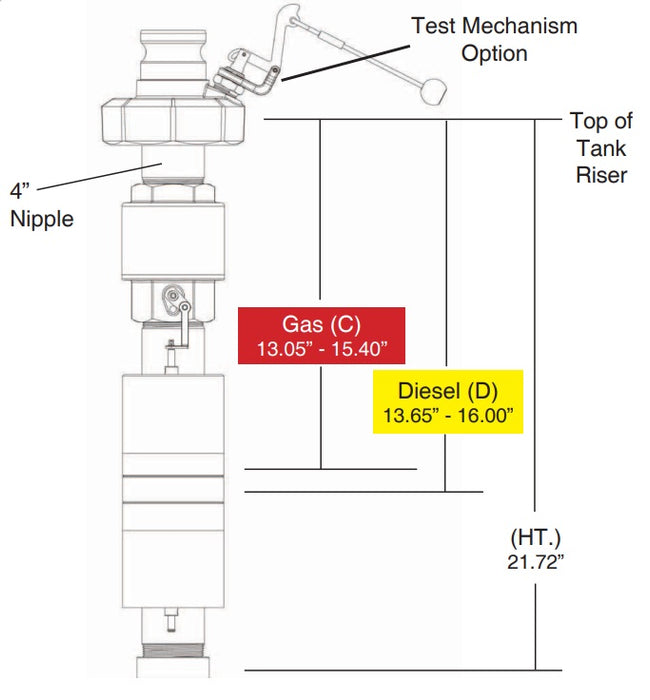

• Installs directly onto a 4” riser or top mounted spill container • Minimum shut-off height is 2” from the tank top • 2.35” of float height adjustment • Drop tube adaptor accepts 2” drop fill tubes (Morrison 419) • Full flow to shut-off point, cushioned closure eliminates shock • Integral pressure relief • Integral anti-siphon function • Optional test mechanism.
Materials Of Construction:
• Direct fill adaptor...passivated aluminum • Remote adaptor...ductile iron, powder coated
• Shaft, linkage and hardware...stainless steel • Lower pipe nipple...e-coated steel • Drop tube adaptor...passivated aluminum • Body...passivated aluminum.
Operational Criteria:

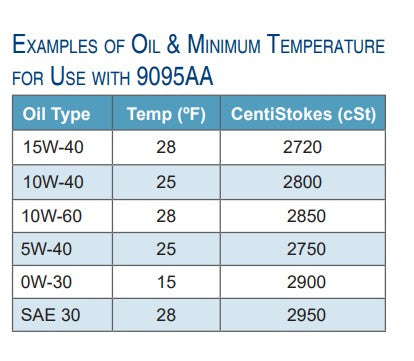

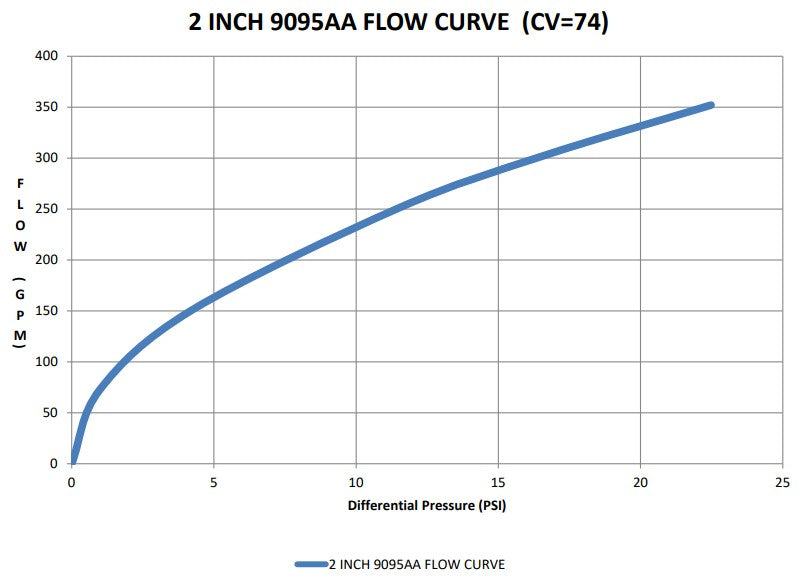

• Minimum 5 PSI flow requirements • Maximum operating pressure is 100 PSI • Maximum viscosity of 3000 centistokes (See examples on next page) • A tight fill connection is required for the valve to operate • The estimated flow rate is 230 GPM at 10 PSI pressure drop (See flow curve).
Code Compliance:
UL 2583 listed, NFPA 30, 30A, UFC, IFC, PEI /RP200, PEI/RP 600,
Florida DEP EQ-851, and California EVR models available.
