752 in. lbs. Torque Electric Actuator, Failsafe Closed Battery Backup, 561085E-5610E-BSR-NC, Valworx

by Valworx
$1,645.00
SKU 561085E-5610E-BSR-NC

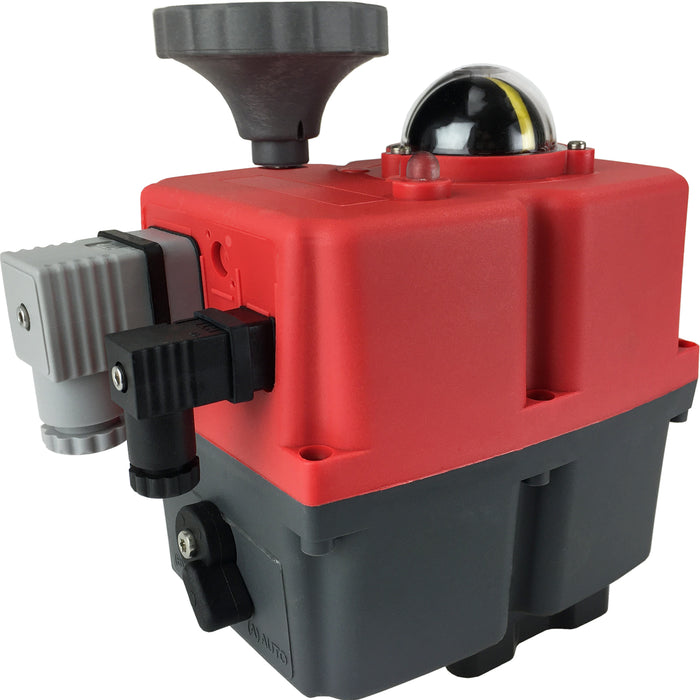

752 in. lbs. torque electric actuator with installed failsafe closed battery backup

Downloads:

Data Sheet

IOM Manual

Quick Specs:

  • Part Number:  561085E-5610E-BSR-NC
  • Manufacturer:  Valworx
  • Type:  On-Off with DPS Positioner and BSR Failsafe options available
  • Working Rotation:  90° (quarter turn)
  • Max Run Torque:  752 in lbs (85Nm)
  • Max Break Torque:  796 in lbs (90Nm)
  • Voltage:  24 to 240 Volts AC or 24 to 135 Volts DC (1 ph, auto-voltage sensing)
  • Current Rating:  0.33A @ 110VAC, 0.18A @ 240VAC, 1.50A @ 24VAC, 1.22A @ 24VDC (full load amps)
  • Cycle Time:  29 seconds per 90° rotation (no load, +/- 10%)
  • Duty Cycle:  75%
  • Enclosure:  Anti-corrosion polyamide, UV protection, SS fasteners
  • Enclosure Protection:  IP67 weatherproof
  • Manual Override:  Polyamide knob
  • Motor Type:  Brushless
  • Motor Protection:  Electronic over-torque
  • Temperature Range:  -4 to +158 °F (-20 to +70 °C)
  • Position Indicator:  Highly visual dome style
  • Position Confirmation:  2 x SPST limit switches 3A @ 125/250VAC, 30VDC resistive load
  • Anti-Condensation Heater:  4 watts thermostatically controlled

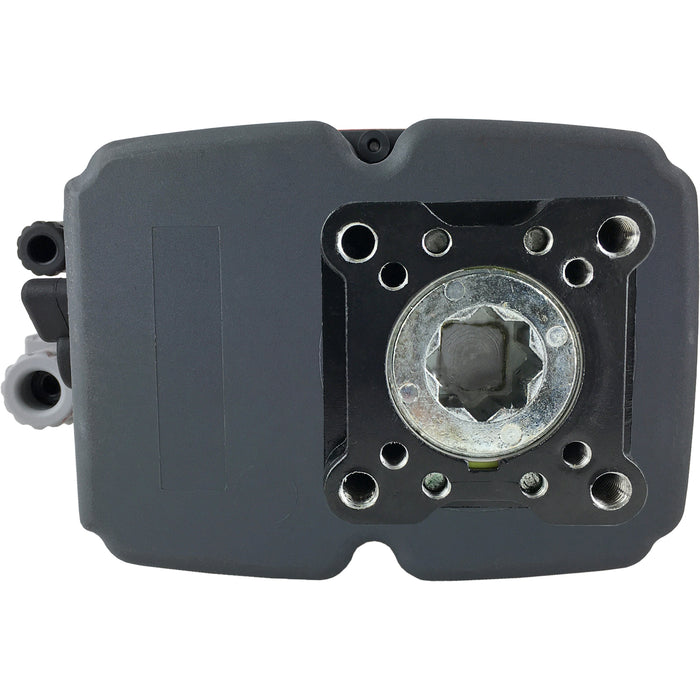

  • ISO5211 Mounting:  F05, FO7 (multi-flange)
  • Output Drive:  17mm double square (female)
  • Electrical Connections:  DIN plugs with cable entry (optional 1/2" conduit plugs or prewired cable)
  • Approvals:  CE Mark

Description:

  • Brushless motor
  • Quarter turn operation
  • External LED diagnostic light
  • Multi-voltage capable with auto-voltage sensing
  • Electronic torque limiter - protects against valve jams
  • Anti-condensation heater
  • Manual override
  • Highly visual dome style position indicator
  • Electrical connections by DIN plug connectors
  • Two auxiliary limit switches to confirm open and closed position
  • Standard ISO5211 multi-flange valve mounting
  • Anti-corrosion resistant IP67 weatherproof enclosure
Valworx 561085E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
