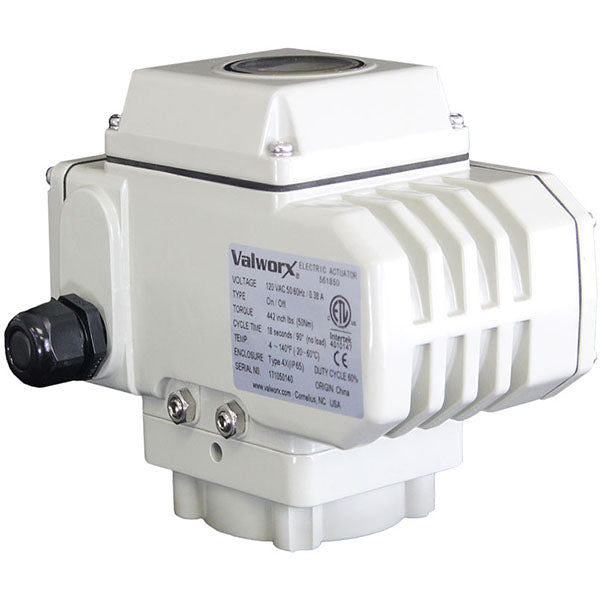

561850C Valworx Electric Valve Actuators

by Valworx
$675.00
SKU 561850C

Valworx Electric Valve Actuator for RYDM Equipped Automated Fueling Systems.

Part #: 561850C

Series: 5618
Quarter turn operation with mechanical limits
Rugged Type 4X weatherproof aluminum alloy enclosure

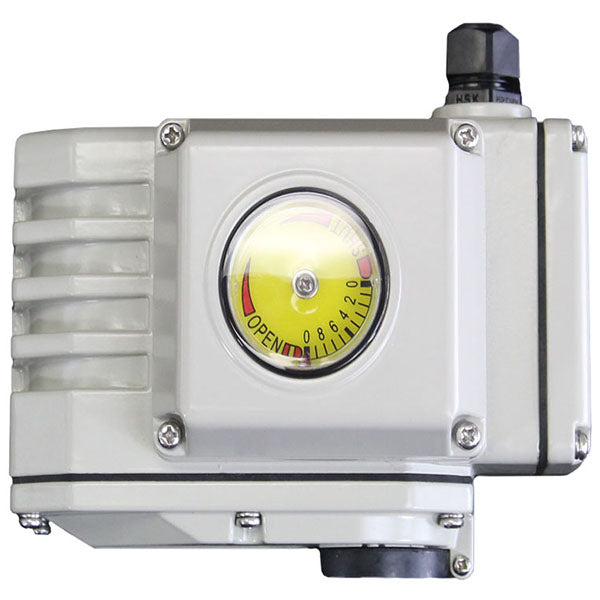

Visual valve position indicator
Manual override
Heavy duty motor with overload protection
Thermostatically controlled anti-condensation heater
Two auxiliary limit switches to confirm valve position
Self-locking all metal gear drive, no additional brake required

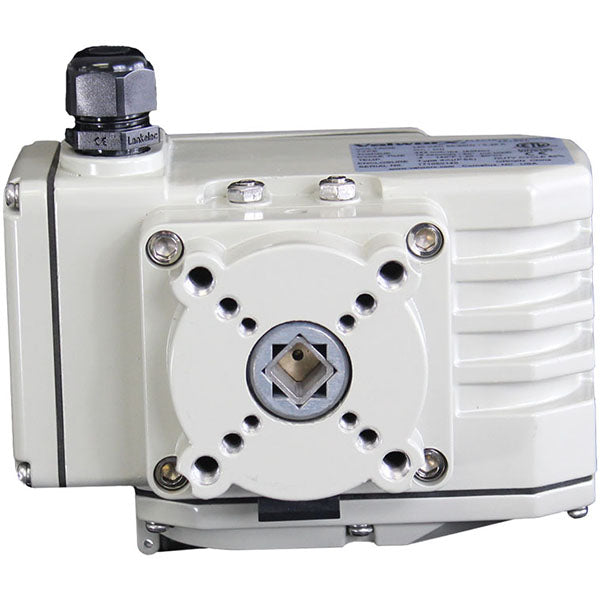

Standard ISO5211 multi-flange valve mounting
CSA Listed per UL429 and CSA C22.2, CE mark
Type: on/off
Working Rotation: 90 degree
Max Torque: 442 in lbs
Voltage: 110 VAC
Current Rating: 0.27A
Cycle Time: 20 sec per 90 degree rotation (no load)
Duty Cycle: 60%
Enclosure: Aluminum Alloy, Polyester Paint
Temp Range: -22-140 degree F
Output Drive: 14 mm double square (female)

Ask about professional installation services and advice.
