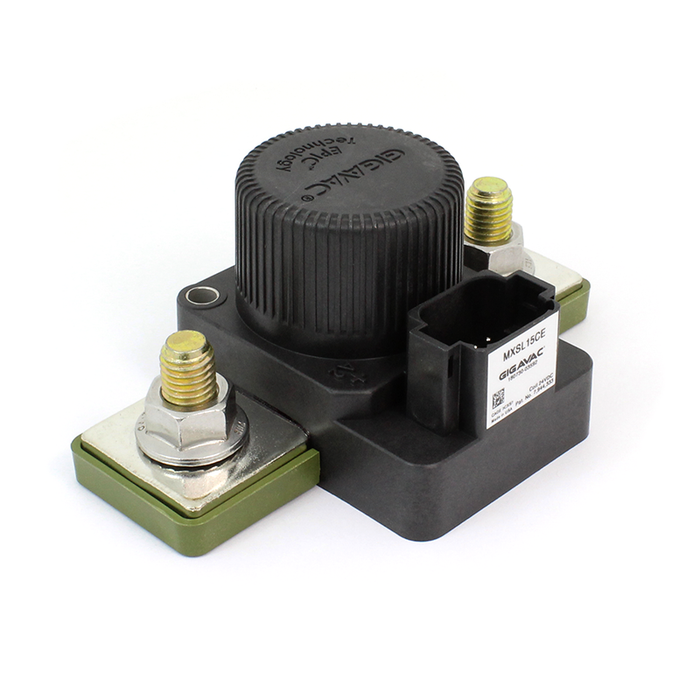

MXSL15BE Sealed Automatic Low Voltage Disconnect, 12VDC, 350A
Downloads:
Quick Specs:
- Series: MXSL15
- Part Number: MXSL-15BE
- Manufacturer: Gigavac
- Nominal Voltage: 12 VDC
- Time Delay: 0 msec to 50 msec
- Current Rating: 350 Amp
Overview:
The LVD is installed between the battery and all loads. If the voltage drops below the setpoint voltage for a pre-determined period of time, the LVD will open, disconnecting all loads including the LVD itself, thus protecting the batteries from any further discharge. Once the LVD has opened, the close pin can be activated, forcing the LVD to close which allows the vehicle/system to be restarted.
- The hermetically sealed chamber ensures that coil, contacts, and electronics are shielded from all outside environmental factors
- Gigavac's MX Series sealed DC Contactors are designed to meet MIL-R-6106 and are especially suited for heavy-duty applications
- Gas filled hermetic chamber protects key components
- Exceeds IP69K standard
