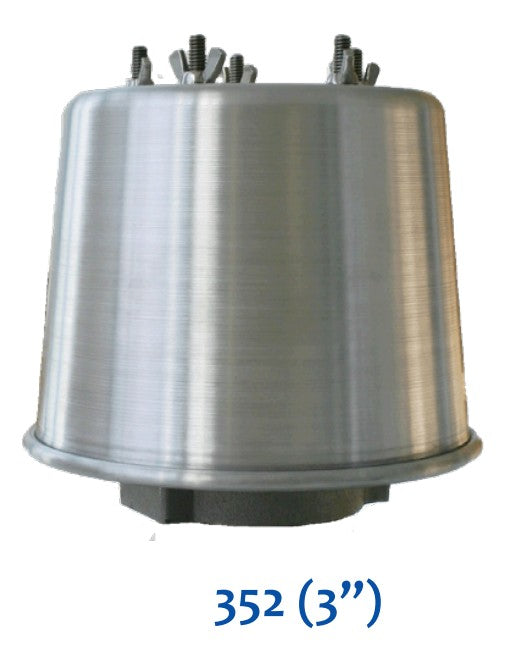

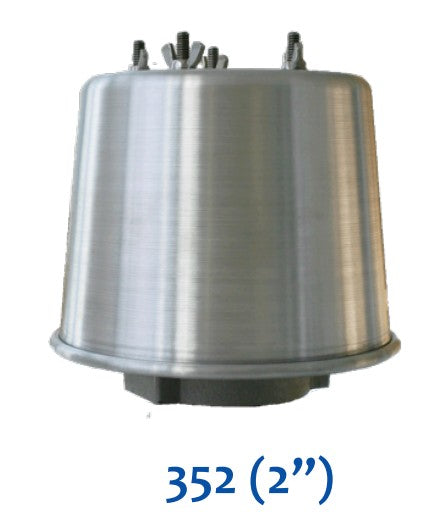

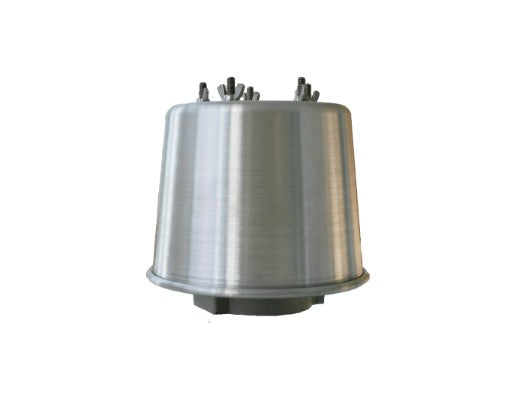

Morrison Bros Fig. 352 End-Of-Line, Open Air Deflagration Flame Arrester
Item Series:
Morrison Bros Fig. 352 End-Of-Line, Open Air Deflagration Flame Arrester
Downloadable Resources:
FIG 352 INSTALLATION INSTRUCTIONS
Product Ordering Information:
Products Description & Features:
Description:
End-of-Line flame arresters are designed to be installed at the end connection of a tank vent line. The flame arrester provides a protection barrier that deters a flame generated from a source outside of the tank from flashing through the vent into the vapor space of the tank.
NOTE: For petroleum storage tanks containing Group D* fluids.
*NFPA 70, the National Electrical Code, lists or defines hazardous gases, vapors, and dusts by “Groups.” Consult these resources for information on Group D fluids.
Standard Features:
• 304 stainless arrester plates provide long term corrosion resistance and durability
• Easy access for visual inspection and periodic maintenance • Full 2” and 3” NPT vent line air flow capacity • Water-resistant cover sheds water away from the vent line.
Construction Details:
Base: 356 tempered aluminum, Cover: Aluminum, Arrester plates: 304 stainless steel, Threaded hardware: 18-8 stainless steel.
Certifications & Listings:
UL 525 Listed–Standard for Flame Arresters–Edition 8.
