Item Series:
Morrison Bros Fig. 419E Drop Tube Extender
Downloadable Resources:
FIG 419E 2-INCH INSTALLATION INSTRUCTIONS
FIG 419E 3-INCH INSTALLATION INSTRUCTIONS
FIG 419E 4-INCH INSTALLATION INSTRUCTIONS
Product Video:

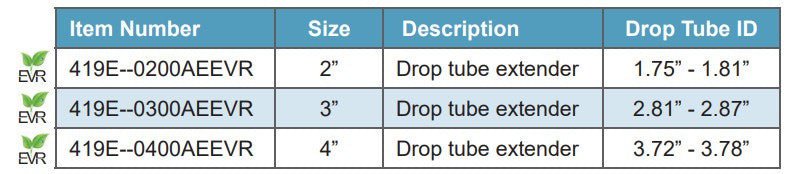

Product Ordering Information:
Products Description & Features:
Description:

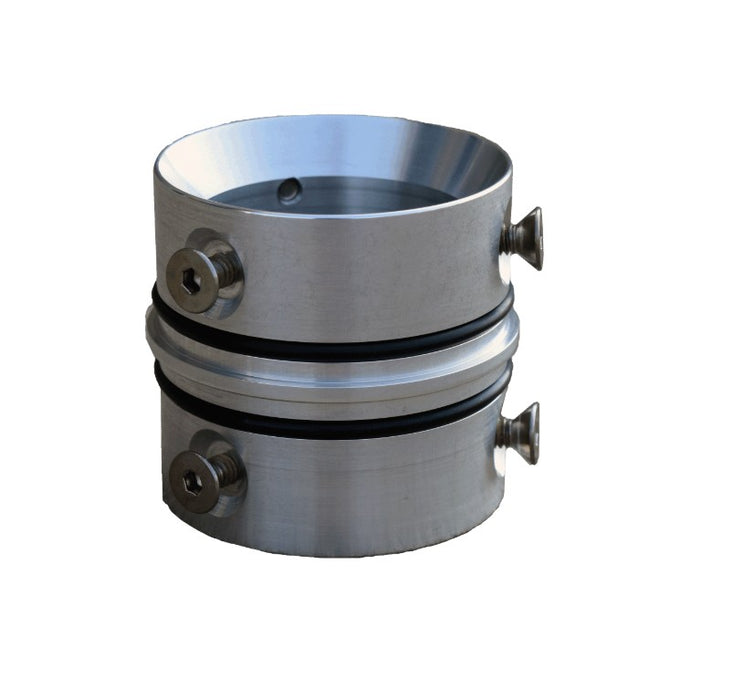

The 419E drop tube extender connects two sections of the same size drop tube end-to-end without disrupting the flow of liquid through the drop tubes. Stock these extenders to eliminate having multiple drop tube lengths in inventory. The 419E drop tube extender is also ideal for use with damaged drop tubes. Simply cut off the damaged sections and connect using the 419E. Drop tube extenders are for use with FILLING APPLICATIONS ONLY. They are not for use in gauging applications.
Standard Features and Details:

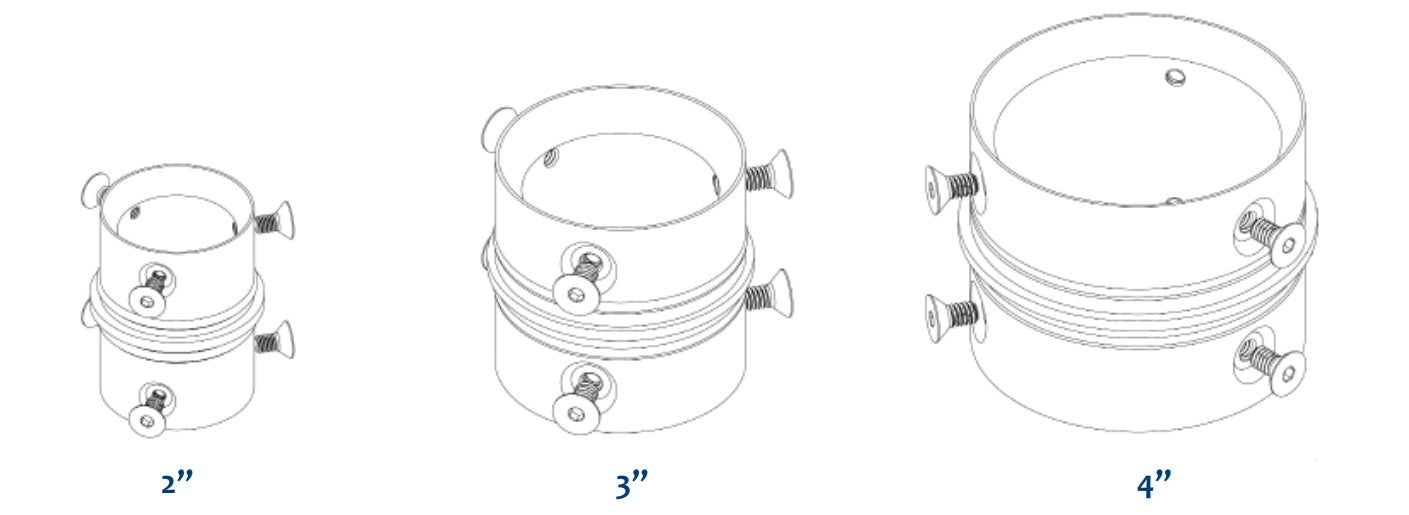

• Available in 2”, 3”, and 4” sizes • Allows for combining up to 50 feet of drop tube
• 2” and 3” models can be used with 9095AA overfill prevention valves as
well as most 9095X and 9095C models • For use in fill applications only.
Materials of Construction:
Machined components: Aluminum 6061, Seals: FKM, Fasteners: Stainless steel.
Certifications & Listings:
California Air Resource Board (CARB) Phase 1 Enhanced Vapor Recovery (EVR) AST Certified Products (VR-402).
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
