Item Series:
Morrison Bros Fig. 419 Standard Drop Tube
Downloadable Resources:
INSTALLATION DIAGRAMS - DIRECT FILL FEMALE THREADED
INSTALLATION DIAGRAMS - DIRECT FILL MALE THREADED

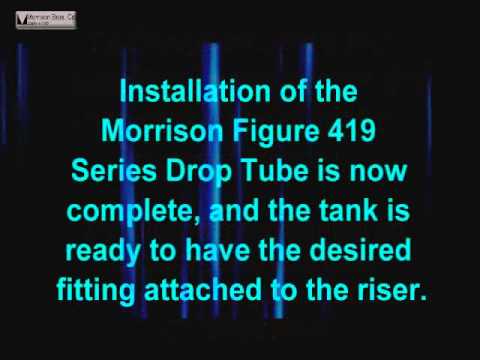

Product Video:

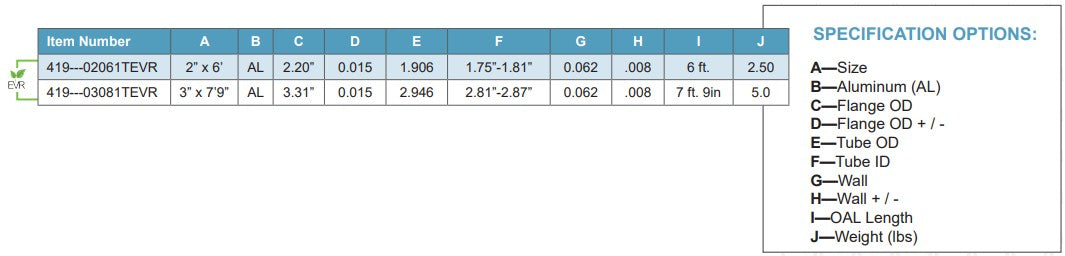

Product Ordering Information:
Products Description & Features:
Description:
Drop tubes are installed in the riser at the fill connection or attached to the bottom of overfill prevention valves to direct product flow from the fill point to within 6 inches of the tank bottom.
Standard Features and Details:
• All Morrison drop tubes are extruded aluminum • The 2” and 3” drop tubes can also be attached to the Morrison Fig. 9095AA AST overfill prevention valve as well as most 9095C and 9095X models • EVR approved models available.
Facilitates a submerged fill when properly installed, Improves flow efficiency, Reduces the build-up of vapors in the tank, .062 wall thickness for durability, Compatible with Morrison 539 diffusers, Compatible with Morrison 9095A, 9095A-AV, 9095AA, and 9095C series overfill prevention valves.
Materials of Construction:
Tube: Aluminum, Gaskets: Buna-N.
Certifications & Listings:
CARB 95-19 (3″ and 4″ models), VR-402 (2″ and 3″ models).
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
