Morrison Bros Fig. 323, 323B, 323C Vapor Recovery Adaptors and Caps
Item Series:
Morrison Bros Fig. 323, 323B, 323C Vapor Recovery Adaptors and Caps
Downloadable Resources:
FIG 323 - 323C SPECIFICATION SHEET

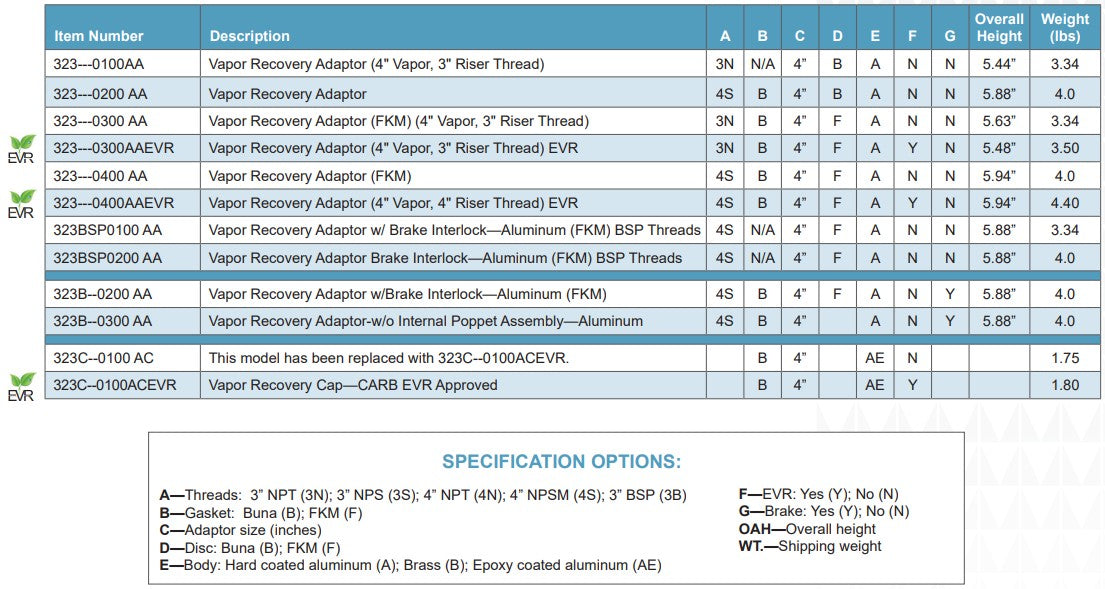

Product Ordering Information:
Products Description & Features:
Description:

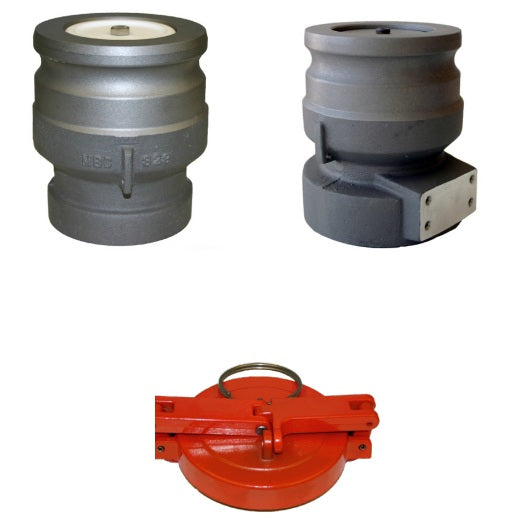

The 323 series adaptors are designed for installation on aboveground and underground storage tanks to mate with vapor recovery couplers and elbows. This connection allows the fuel vapors to be returned to the tank truck during the fuel delivery operation.
Standard Features and Details:

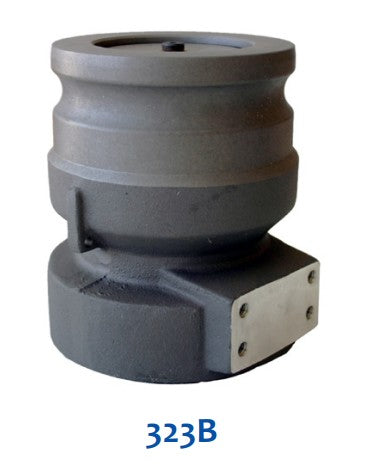

323SA...has a built in swivel. 323B...is equipped to accept brake interlock devices

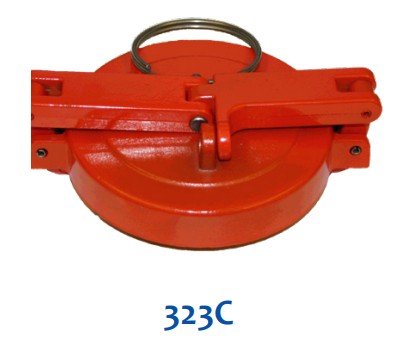

which lock the transport brakes while connected. 323C...provide a lockable vapor tight cover which protects the adaptor from dirt and debris.
Materials of Construction:
323B - Body: Anodized aluminum, Spring: Stainless steel, Disc: Buna-N or FKM, Stem: Stainless steel, Disc washer: Zinc plated steel, Poppet assembly: Stainless steel and PTFE (EVR model only).
323C - Body: Die cast aluminum, powder coated, Gasket: Buna-N, Hardware: Stainless steel.
Certifications & Listings:
323B - CARB 91-12, VR-402
323C - CARB 89-12, VR-101, VR-402.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
