Morrison Bros Fig. 539, 539TC, 539TO Diffusers (Telescopic Closed & Telescopic Open)
Item Series:
Morrison Bros Fig. 539, 539TC, 539TO Diffusers (Telescopic Closed & Telescopic Open)
Downloadable Resources:
FIG 539TC AND 539TO INSTALLATION INSTRUCTIONS
FIG 539AS 2-INCH INSTALLATION INSTRUCTIONS
FIG 539AS 3-INCH INSTALLATION INSTRUCTIONS
FIG 539AS 4-INCH INSTALLATION INSTRUCTIONS
FIG 539AT 2-INCH INSTALLATION INSTRUCTIONS
FIG 539AT 3-INCH INSTALLATION INSTRUCTIONS
Product Video:

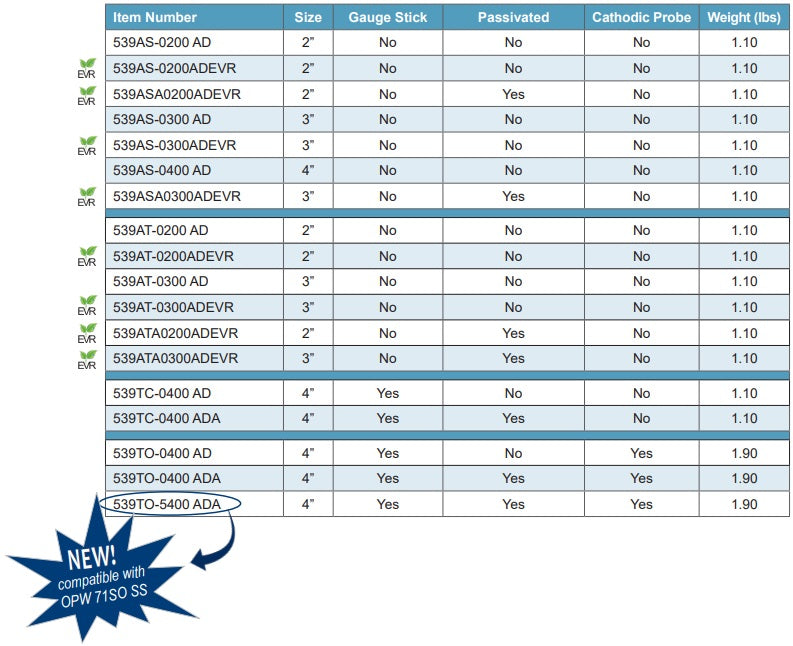

Product Ordering Information:
Products Description & Features:
Description:
The diffuser is designed for installation at the bottom of a drop tube to reduce turbulence and vapor loss during the filling operation.
Tank filling, manual sticking, water detection and cathodic protection (with certain models) can be accomplished without any change in procedure or routine. The diffuser will not restrict flow or cause any noticeable difference in filling.
Standard Features and Details:

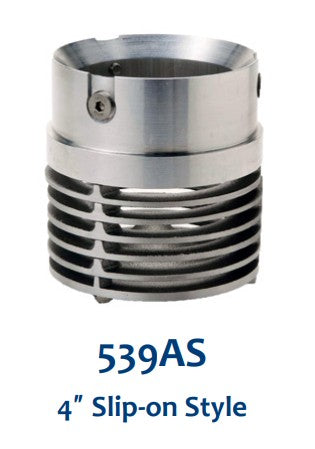

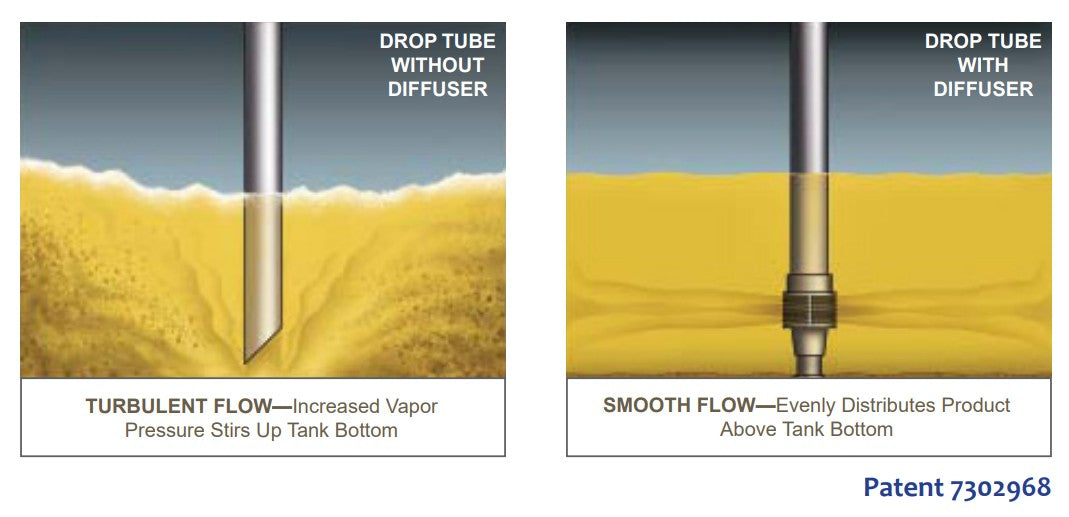

• Low turbulence—The diffuser dramatically reduces product turbulence when filling a tank through an open tube. Less turbulence will save fuel through reduced vapors. • Rag catcher—The diffuser will catch foreign objects such as rags that can shut down the filling operation at the time of the occurrence. It will block a rag from entering the tank which will cut the flow down enough to alert the driver of the problem. This allows the situation to be corrected immediately and will prevent a more costly crisis later such as when a rag wraps around the submersible pump intake long after the driver has left. • No change to normal operations—With certain models, tank filling, manual sticking, water detection, and even cathodic protection can be accomplished without any change in procedure or routine. The diffuser will not restrict flow or cause any noticeable difference in filling. • Easy installation—The diffuser can be installed in minutes on the bottom of a new or existing drop tube or threaded pipe. It is well suited to be incorporated into a routine tank maintenance and/or service program. • 539AS, 539TC, and 539TO are slip-on style

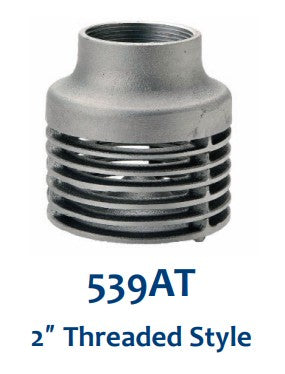

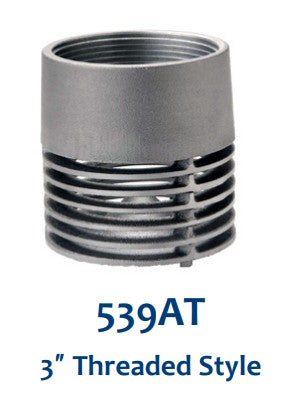

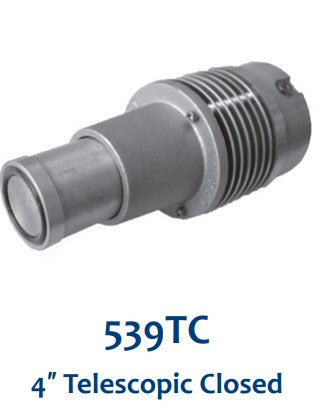

• 539AT is threaded style • 539TC has a telescoping closed bottom and strike plate

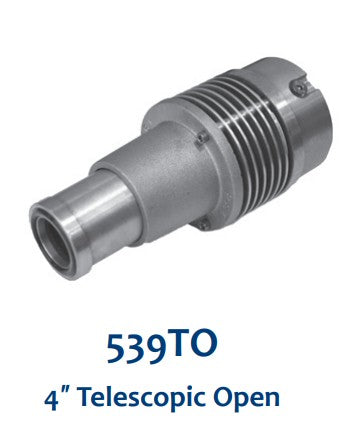

• 539TO has a telescoping open bottom.
Materials of Construction:
• Body... aluminum or passivated • O-ring... PTFE encapsulated FKM (telescoping models).
Certifications & Listings:
CARB EVR Executive Order VR-402.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
