Morrison Bros Fig. 305XP, 305XPA Tank Monitoring Cap/Adaptor Combination - 2 Inch & 4 Inch
Item Series:
Morrison Bros Fig. 305XP, 305XPA Tank Monitoring Cap/Adaptor Combination - 2 Inch & 4 Inch
Downloadable Resources:
FIG 305 AND 305XPA SPECIFICATION SHEET
FIG 305XPA 2-INCH INSTALLATION INSTRUCTIONS
FIG 305XPA 4-INCH INSTALLATION INSTRUCTIONS

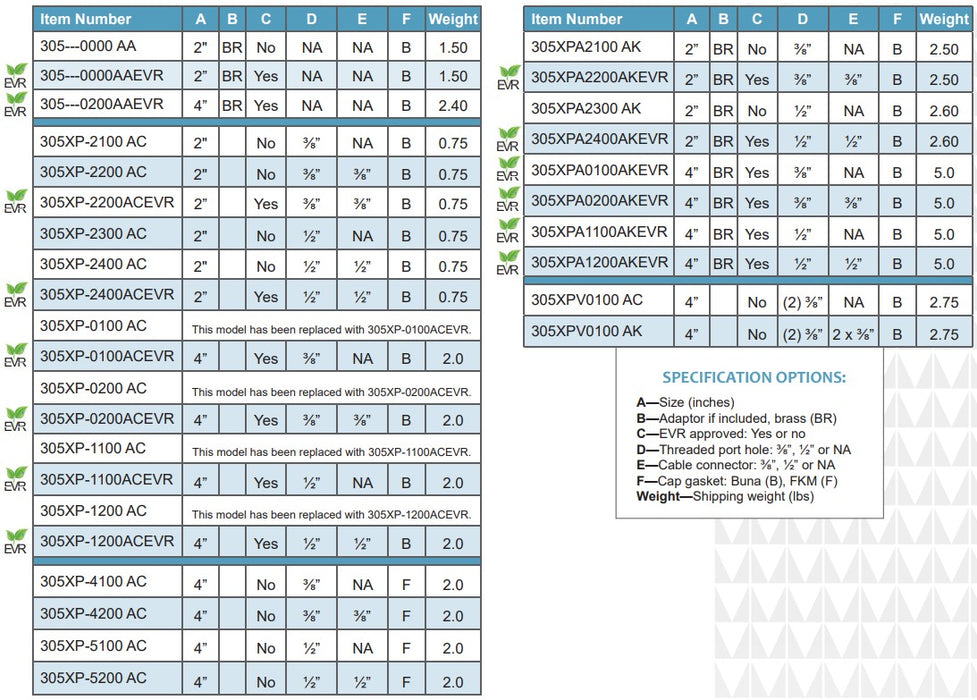

Product Ordering Information:
Products Description & Features:
Description:
Tank monitor caps and adaptors are installed on tank monitor riser pipes to keep water and debris out while providing a liquid tight opening for the probe wire to pass through.
Standard Features and Details:
• Keeps water, dirt, and debris out of the tank • Lockable with a padlock • Prevents vapors from escaping • Low profile models when space is limited • Easy to engage push-on
• Large easy-to-grip pull ring makes it fast and easy to remove.
Materials of Construction:
• Body (adaptor)… brass • Body (cap)... aluminum • Cam levers… aluminum (4″), brass (2″)
• Gaskets… Buna-N (FKM optional for 305XP) • Cable connector… plastic.
Certifications & Listings:
Some models are CARB Certified, VR-102; Some models VR-402, CARB VR-102 (XPA series).
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
