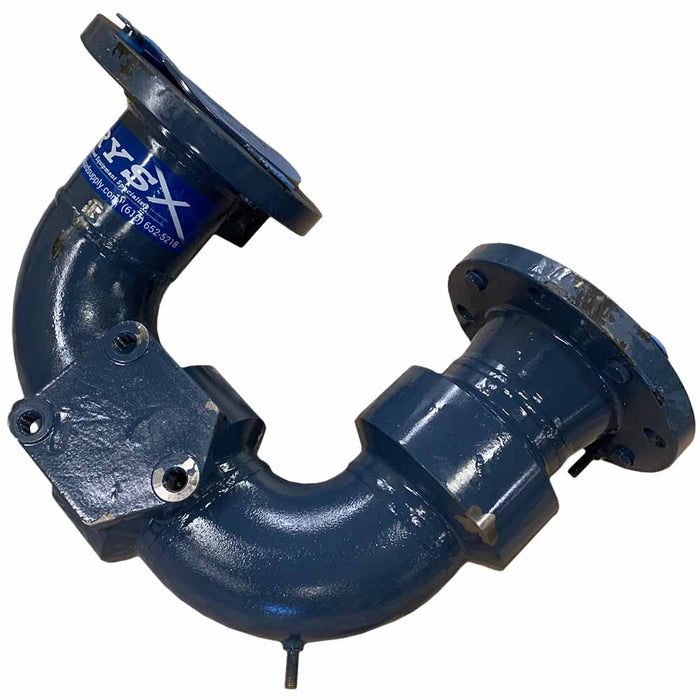

3458FSB-0402 4" Base Swivel Joint, Load Arm, Carbon Steel, ANSI x ANSI Flanges, OPW
Original price
$3,570.32
Current price
$2,721.61
SKU 3458FSB-0402
3458FSB-0402 4" Base Swivel Joint, Load Arm, Carbon Steel, ANSI x ANSI, OPW
Downloads:
how to order-load arm base swivels
how to order-load arm counterbalance springs
P/N Breakdown-OPW swivel joints
how to order-OPW swivel joints
A-frame load arms-OPW standardline
Quick Specs:
- P/N: 3458FSB-0402
- Style: 58FSB
- Size: 4"
- Manufacturer: OPW Engineered Systems
- Type: Upfeed, Right Hand, Loading Arm Base Swivel
- Application: Tank Truck Loading Arm Swivel Joints, Base Swivel
- Style: Double Swivel
- Material: Carbon Steel, Painted
- Ends: 150# ANSI Flange x 150# ANSI Flange
- Seals: Fluorocarbon (Viton)
- Includes brackets for mounting counterbalance springs
- Does not include counterbalance spring or cover
*When ordering as a replacement to an existing loading arm, take notice in end flange connections. Many loading arm base swivel joints feature 150# ANSI flanges x TTMA flanges (tank truck flanges), see P/N: 3458FFT-0402
