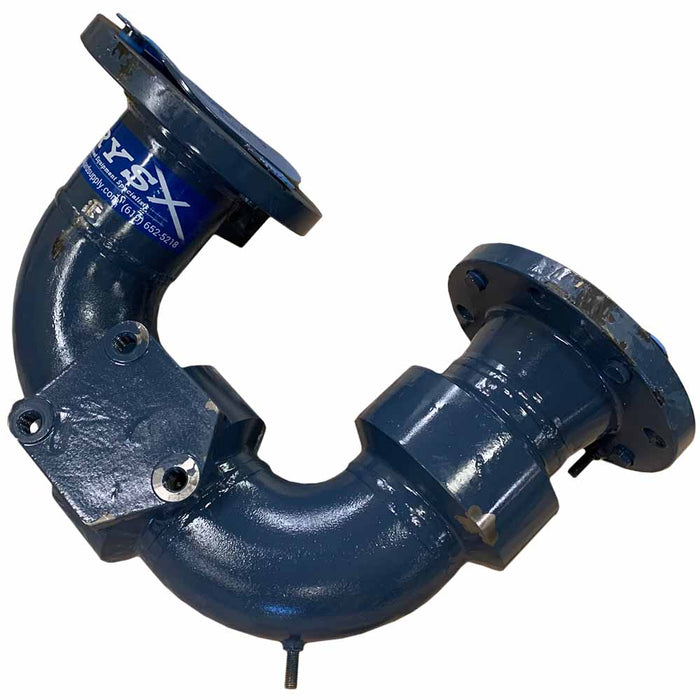

3458FFT-0402 4" Base Swivel Joint for Load Arm, Carbon Steel, ANSI x TTMA Flanges, OPW

OPW 3458FFT-0402 4" Base Swivel Joint for A-frame Loading Arms with 4" ANSI Flanges x 4" TTMA Flanges

Downloads:

how to order-load arm base swivels

how to order-load arm counterbalance springs

790 Series Counterbalance

P/N Breakdown-OPW swivel joints

how to order-OPW swivel joints

A-frame load arms-OPW standardline

Quick Specs:

• P/N:  3458FFT-0402
• Style:  58FFFT
• Size:  4"
• Manufacturer:  OPW Engineered Systems
• Type:  Upfeed, Right Hand, Loading Arm Base Swivel
• Application:  Tank Truck Loading Arm Swivel Joints, Base Swivel
• Style:  Double Swivel
• Material:  Carbon Steel, Painted
• Ends:  150# ANSI Flange x 150# ANSI Flange
• Seals:  Fluorocarbon (Viton)
• Includes brackets for mounting counterbalance springs
• Does not include counterbalance spring, cover, or gaskets

*When ordering as a replacement to an existing loading arm, take notice in end flange connections.  Many loading arm base swivel joints feature 150# ANSI flanges x 150# ANSI flanges (US standard flanges), see P/N: 3458FSB-0402
