Morrison Bros Fig. 715--TB2 Remote Fill Box, Bottom Connection
Downloadable Resources:
FIG 715 (BOTTOM CONNECTION) BROCHURE
FIG 715 (BOTTOM CONNECTION) SPECIFICATION SHEET

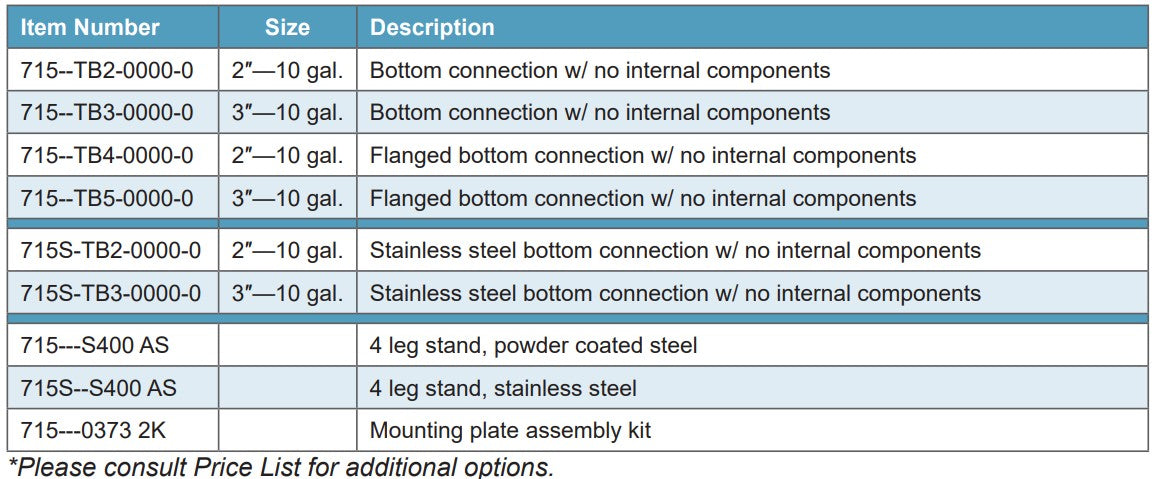

Product Ordering Information:
Products Description & Features:
Description:

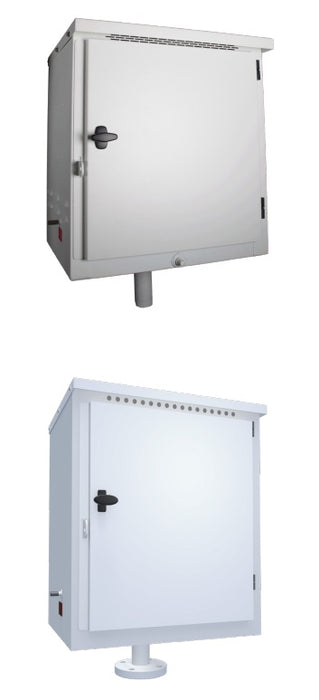

The 715 series remote fill box is a simple 10-gallon capacity cabinet that provides containment of small spills during tank filling operations.
*As of March 2018, please note that Bottom Connection models are now 10-gallon capacities instead of 7-gallon. Measurements have also changed.
Standard Features And Details:

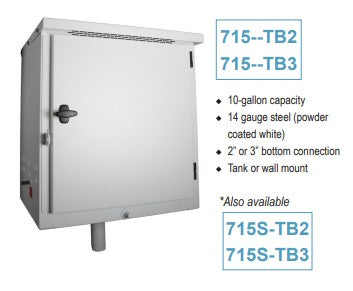

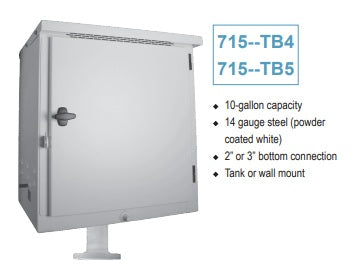

• 10-gallon (37.85 liter) • 14 gauge steel (powder coated white) • 2” or 3″ male NPT threaded or flanged bottom connection • Pad-lockable • Integral grounding stud
• Vapor recovery mounting brackets • Sloped bottom to drain • Drain located in front

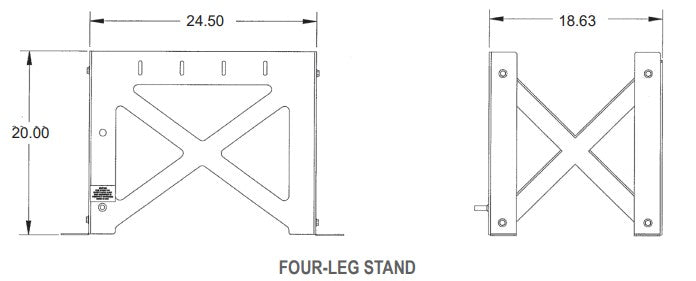

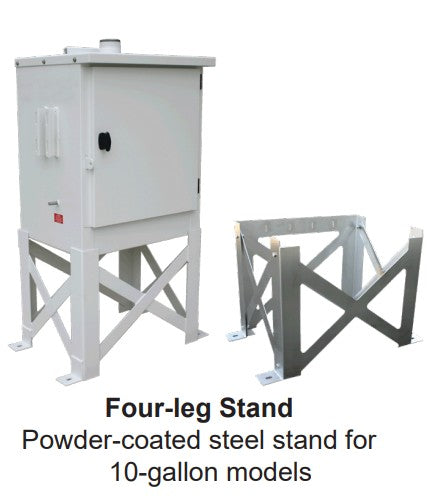

• Four-leg stands are also available in powder coated steel and stainless steel.
Construction Details:
• Box and door are 14-gauge steel, powder coated white, or 304 stainless steel (special order item with longer lead times) • Ball valve is Morrison 691 series brass or 691BSS series
stainless steel • Quick disconnect coupler and plug are aluminum, anodized
aluminum, or stainless steel • Quick disconnect adaptor and cap are anodized aluminum
• Dry disconnect adaptor and cap are aluminum, anodized aluminum, or stainless steel

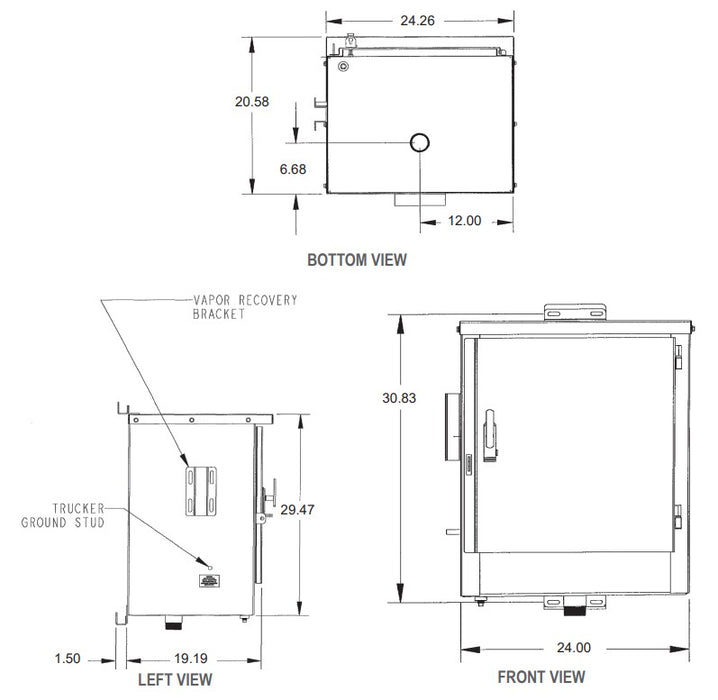

Box dimensions Width = 24.26″ Height = 29.47″ (Flange included = 35.35”)
Depth = 19.19″.
Approvals:
UL-2583; Florida DEP EQ-787.
