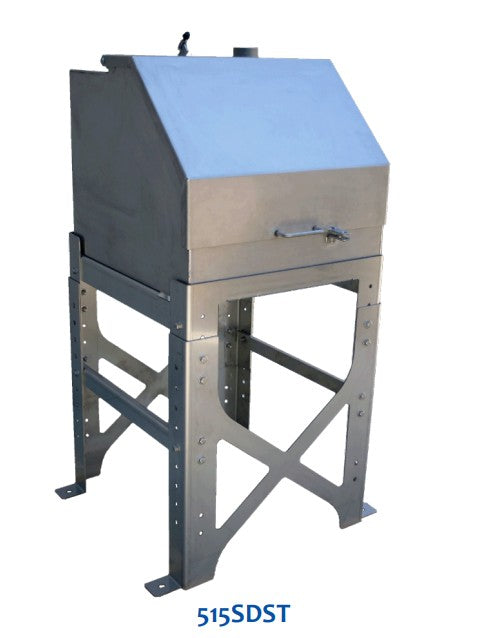

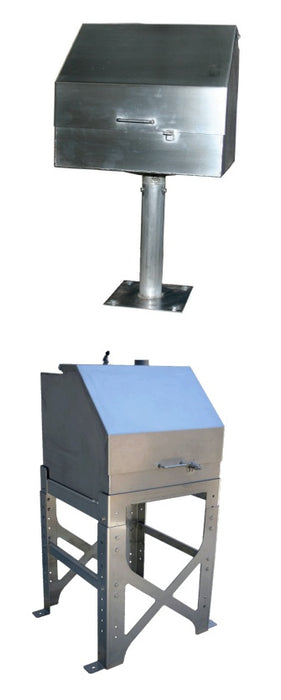

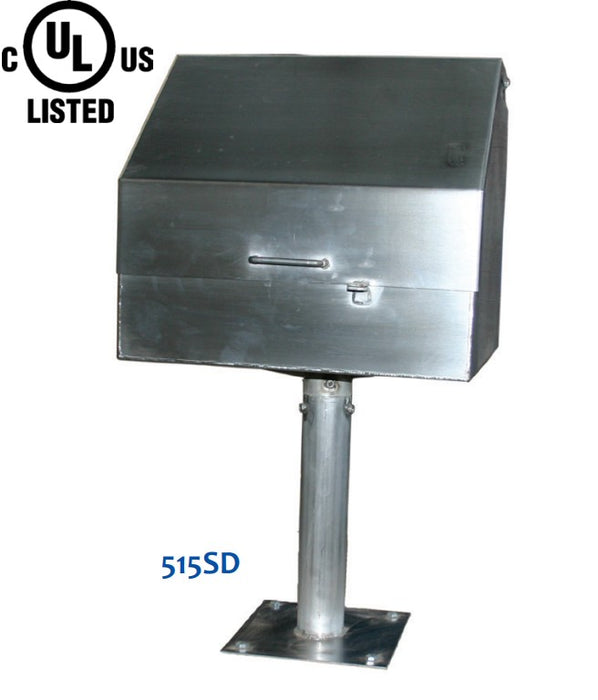

Morrison Bros Fig. 515SD, 515SDST AST Remote Spill Container - Female Threaded, Stainless Steel With Sump Drain
Item Series:
Morrison Bros Fig. 515SD, 515SDST AST Remote Spill Container - Female Threaded, Stainless Steel With Sump Drain
Downloadable Resources:
FIG 515 INSTALLATION INSTRUCTIONS

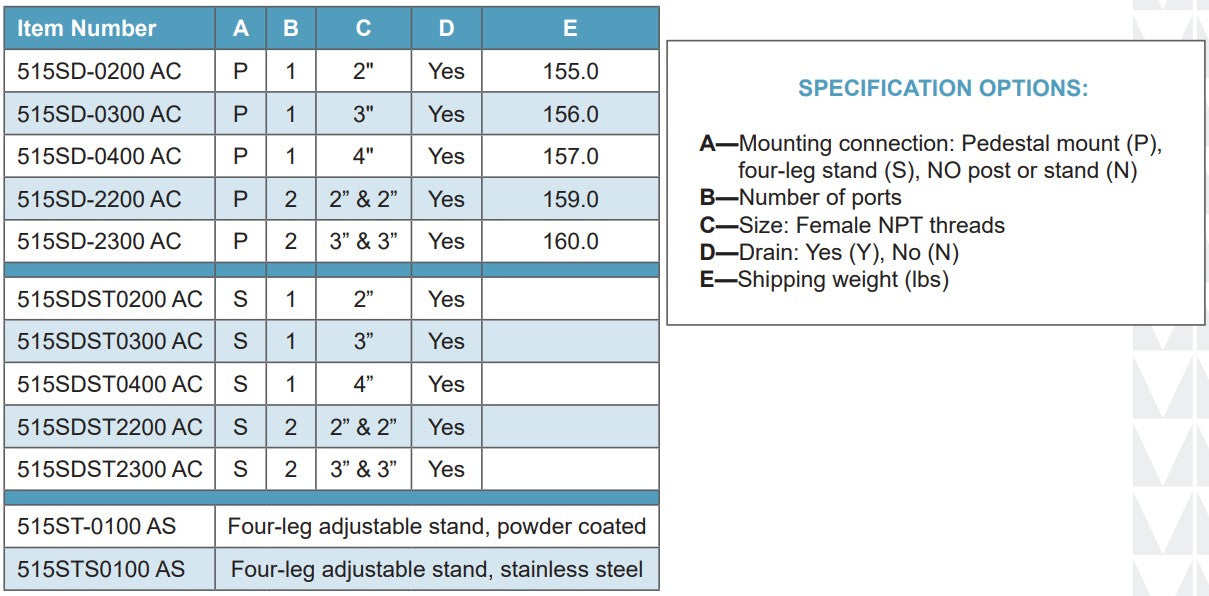

Product Ordering Information:
Products Description & Features:
Description:
Remote fill containers provide containment for small spills that may occur at the fill point during remote filling operations.
Standard Features And Details:

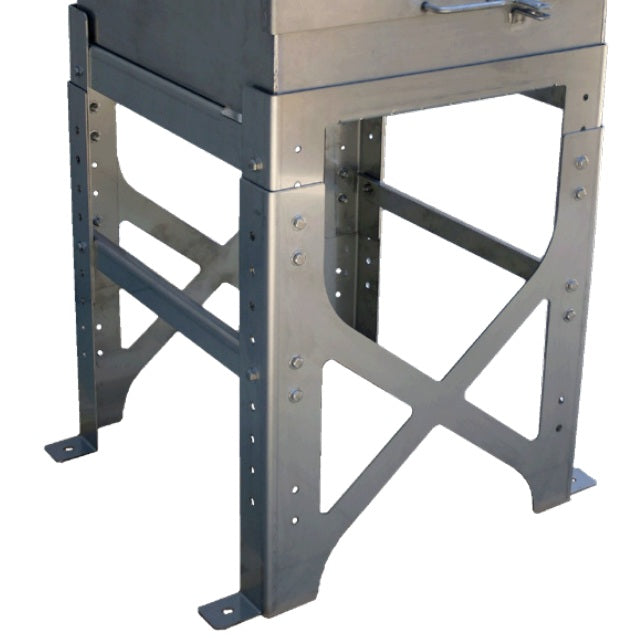

• Single connections in 2", 3" or 4" female threads • Dual connections in 2" or 3" (may be combined) • 15-gallon capacity • Gas spring cylinder holds the lid in the up position when fueling • Lockable with a padlock • Weather-tight enclosure • Vented cover
• 2" female threaded return pump connection • Integrated sump drain with ½" with locking ball valve • Four-leg stand ships knocked down and requires minimal
assembly.
Construction Details:
• Container and lid... 14 gauge stainless steel • Pipe connection... stainless steel
• Pedestal mount... schedule 40 stainless steel pipe • Adjustable four-leg stand... 10 gauge stainless steel • Ball valve... stainless • Flange connection gasket... Teflon®
Code Compliance:
UL 2583 Listed; Florida DEP EQ 535.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
