Morrison Bros Fig. 515, 5050EM AST Remote Spill Containers (Wall Mounted & Pedestal Mounted)
Item Series:
Morrison Bros Fig. 515, 5050EM AST Remote Spill Containers (Wall Mounted & Pedestal Mounted)
Downloadable Resources:
FIG 515 INSTALLATION INSTRUCTIONS

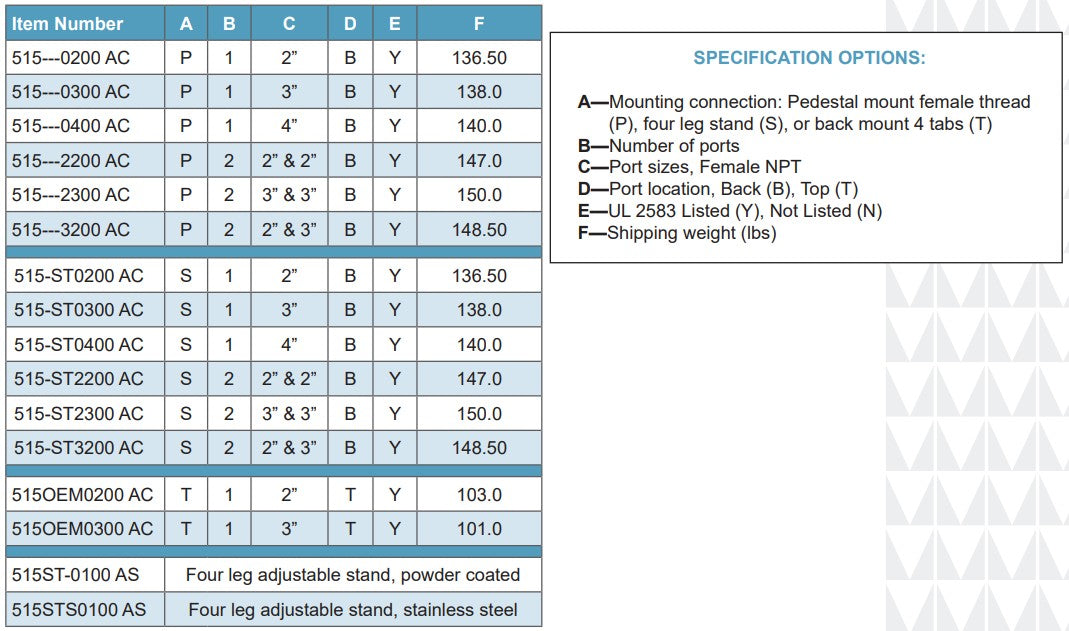

Product Ordering Information:
Products Description & Features:
Description:
Remote fill containers provide containment for small spills that may occur at the fill point during remote filling operations.

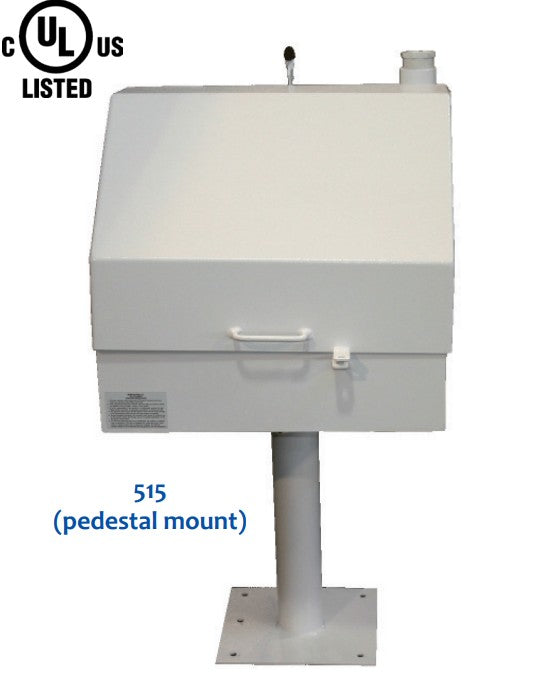

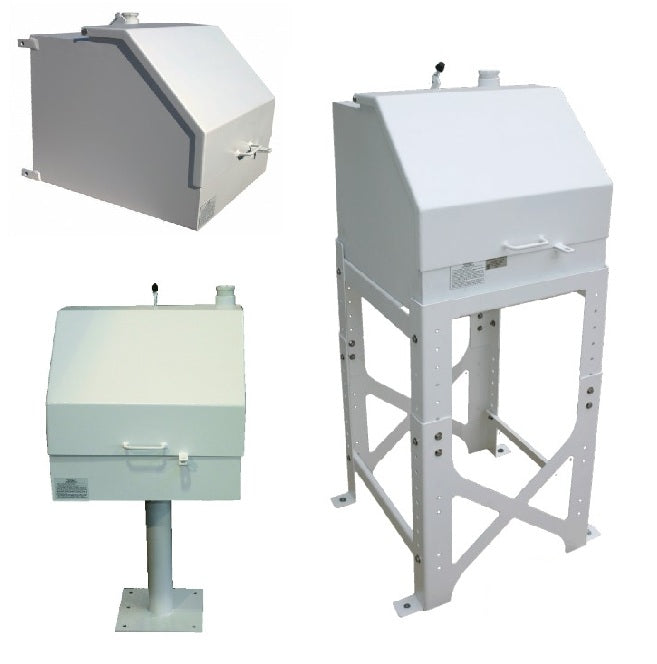

FIG 515 - AST Remote Spill Container
FIG 515OEM - Wall Mount AST Remote Spill Container
Standard Features And Details:
• Single connections in 2”, 3” or 4” female threads • Dual connections in 2” or 3” (may be combined) • 15 gallon capacity • Gas spring cylinder holds the lid in the up position when

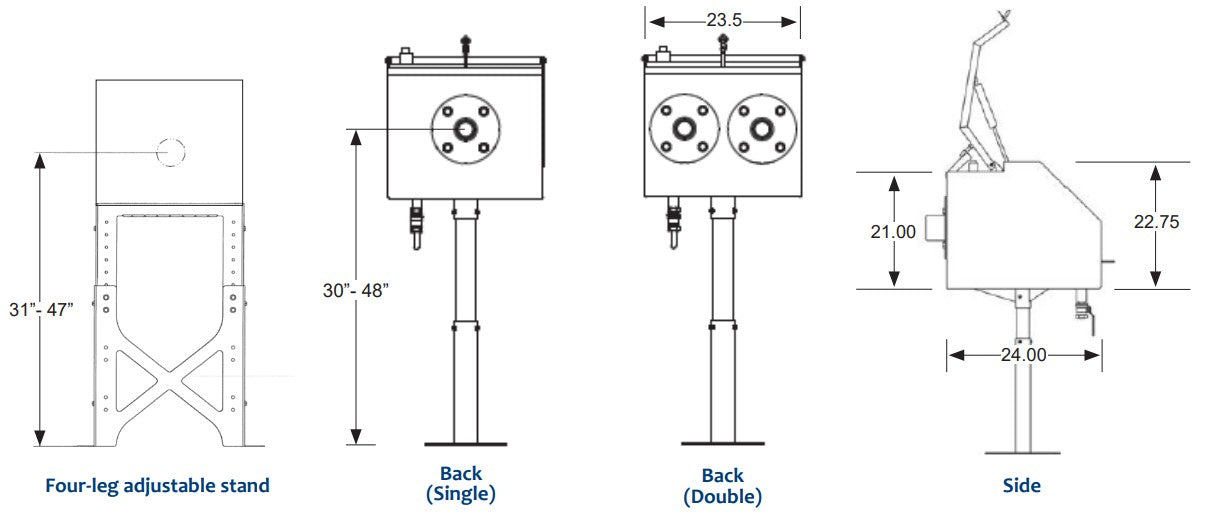

fueling • Lockable with a padlock • Weather-tight enclosure • Vent cover • 2 Inch female threaded return pump connection • 1” NPT drain with locking ball valve • Base to centerline connection height 30” to 48” pedestal model • Base to centerline connection height 31” to 47” Four leg stand model • Four leg stand ships knocked down and requires minimal assembly.
Construction Details:
• Container and lid... 12 gauge steel, powder coated white • Pipe connection... powder coated steel • Pedestal mount... Schedule 40 steel pipe, powder coated steel white

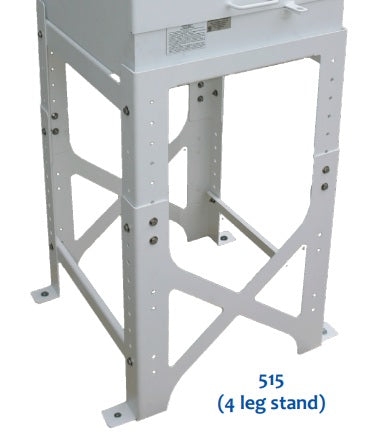

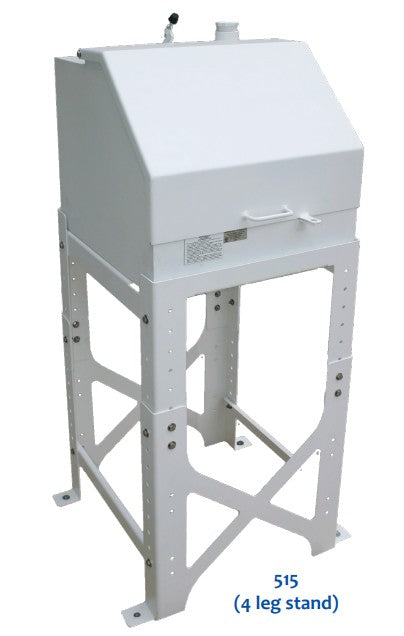

• Adjustable four-leg stand...10 gauge stainless steel or powder coated steel white
• Ball valve... brass • Gasket... Teflon.
Certifications and Listings:
UL 2583 Listed; Florida DEP EQ 535
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
