Item Series:
Morrison Bros Figs. 918DP, 918DPF Dual Point Clock Gauges
Downloadable Resources:
FIG 918DP INSTALLATION INSTRUCTIONS

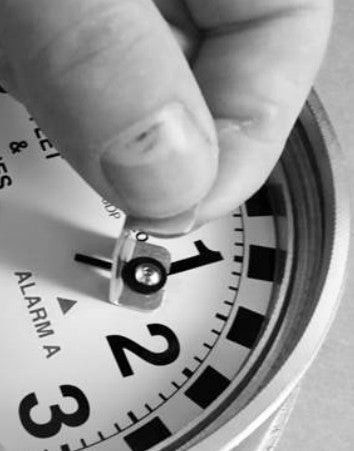

FIG 918DP HAND TOOL INSTALLATION INSTRUCTIONS
Products Description & Features:
Description:

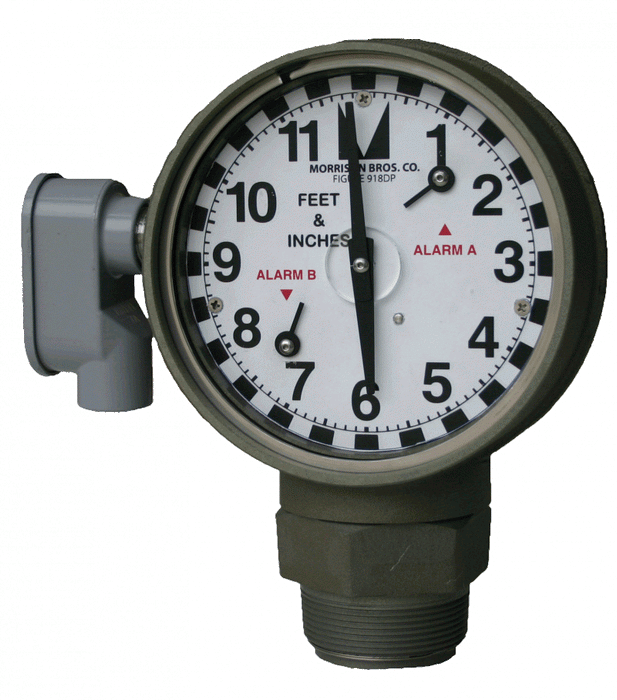

The 918DP “Dual Point” Clock Gauge displays the liquid level in a storage
tank while providing two alarm set points all within a single 2” tank opening.
Product Videos:
918DP - PART 1 - SETTING THE DISPLAY
918DP - PART 2 - SETTING THE HIGH LEVEL ALARM
918 DP - PART 3 - SETTING THE LOW LEVEL ALARM
Standard Features:
• Easy to install and calibrate • Liquid level displayed in feet and inches • Measures liquid level up to 12 feet • Two normally open switches can be set at desired alarm set points •Gauge is accurate to ⅛”• Vapor tight • Easy to read up to 30 feet • Can be paired with Morrison 918D or 918Q Battery Powered Tank Alarms and 918AC System Interface.
Approvals:
Florida DEP EQ-861

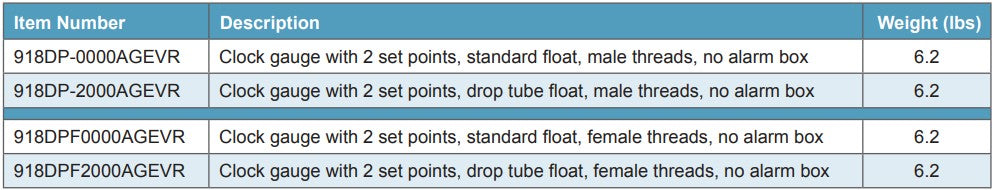

Product Ordering Information:
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
sales@railyardsupply.com
(610) 652-5218
