Item Series:
Morrison Bros Fig. 925, 925S Multi-Level Sensor
Downloadable Resources:
FIG 925 MULTI-LEVEL SENSOR ORDER FORM
FIG 925 INSTALLATION INSTRUCTIONS
MORRISON BROS. LIQUID LEVEL SENSORS_THIRD PARTY EVALUATION_FINAL REPORT
FIG 918AC/1218 ALARM AND SENSOR ACCESSORIES SPECIFICATION SHEET
GAUGING AND MONITORING SYSTEMS BROCHURE

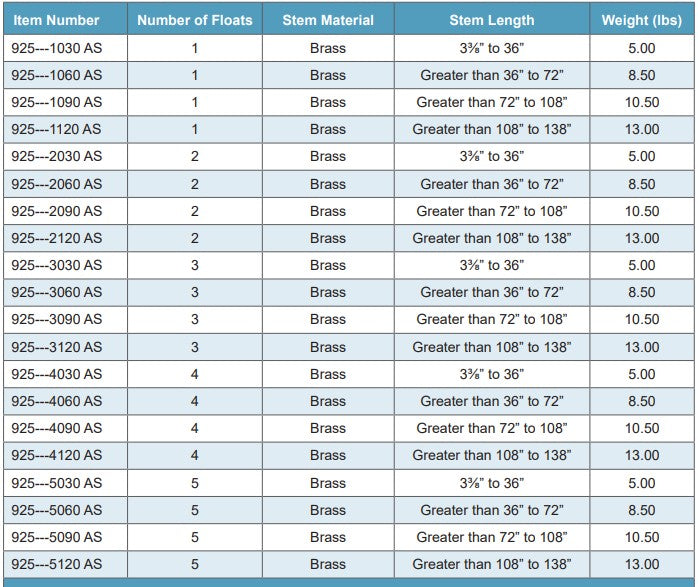

Product Ordering Information:
Products Description & Features:
Description:
Float-activated simple switch device capable of sensing liquid levels from 1
to 5 specified set points.
Features and Details:

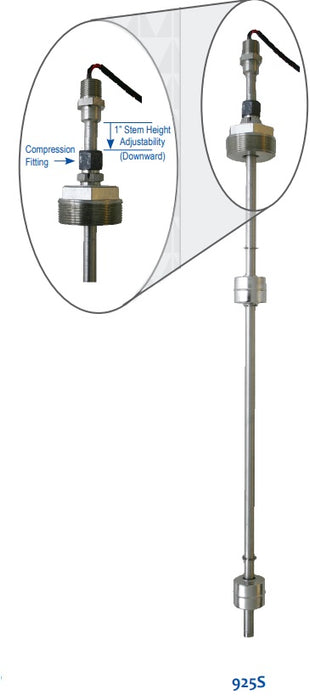

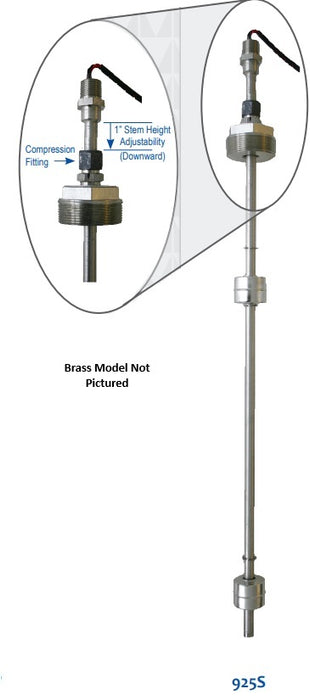

• 1 to 5 user-specified liquid level set points (1⅛” minimum to 135¾” maximum set point range) • 3” stem height adjustability (downward) to assist in desired set point
alignment • Installs into a 2” NPT female threaded opening • ½” NPT fitting at top of sensor • 24” lead wire length • Normally open or normally closed switch orientations available (specified at time of order) • Audible and visual alarm functionality when paired with Morrison 918AC System Interface or 918S/D/Q Tank Alarm.
Materials of Construction:
• Wires... PTFE jacketed wires • Floats... Nitrophyl®-M (925); 316 stainless steel (925S) • Stem... brass (925); 304 stainless steel (925S) • Bushing... 304 stainless steel (925S)
Operational Criteria—Electrical Switch Ratings:
• 50-watt resistive load, 300VAC - 700mA max / 350VDC - 1.0A max, SPST *Switch ratings are for resistive loads only. *Do not use for inductive loads.
Approved Use Locations:
UL/ULC Class I, Div 1, Group D (when used in conjunction with the model
918AC, model 918S/D/Q, and model 918SB).
Ordering:
To order, please complete the 925 Multi-Level Sensor Order Form and
send with your purchase order to Morrison Bros. Please note that each unit
is made to order specifically to the requirements on the order form; longer
lead times may apply.
Approvals:
National Work Group on Leak Detection Evaluations list
(www.nwglde.org); Florida DEP EQ-862.
