Morrison Bros Fig. 918TCP, 918TCPS High Or Low Level/Interstitial Alarm

Item Series:

Morrison Bros Fig. 918TCP, 918TCPS High Or Low Level/Interstitial Alarm

Downloadable Resources:

FIG 918TCP/TCPS INSTALLATION INSTRUCTIONS

FIG 918TCP SPECIFICATION SHEET

GAUGING AND MONITORING SYSTEMS BROCHURE

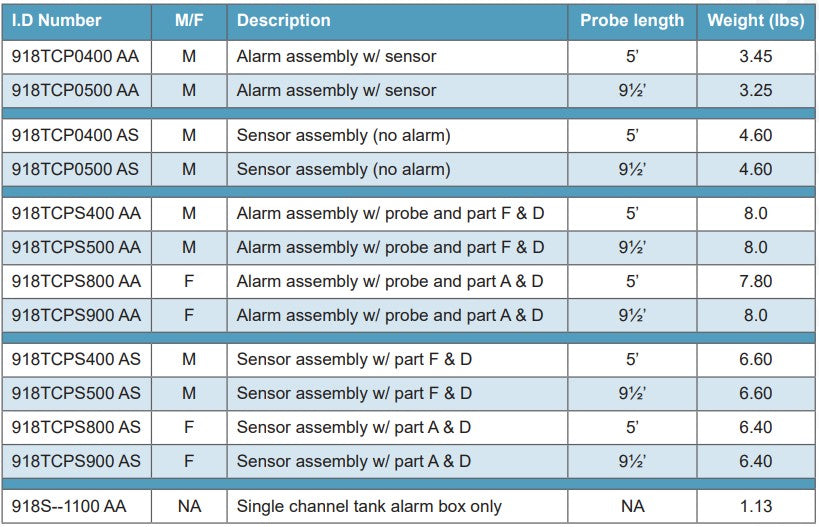

Product Ordering Information:

Products Description & Features:

Description:

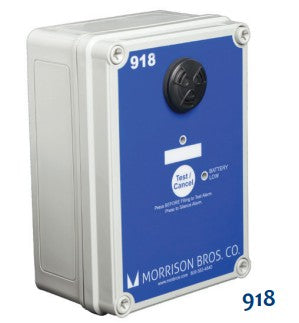

918TCP alarm and float level sensor can be set to provide an audible alarm for a high level, low level or serve as an interstitial alarm.

Features and Details:

• Alarm activation point is factory set and can be field adjusted • Intrinsically safe battery powered alarm can be mounted remote from the tank • The float sensor installs into a 2″ tank opening • Low level activation or interstitial alarm point can be set up to 113″

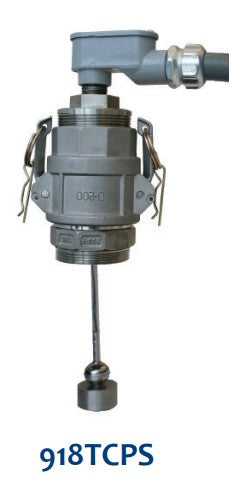

• 918TCPS coupler and adaptor assembly for easy sensor removal and inspection.

Materials Of Construction:

• Stainless steel float and weight assembly • Teflon® tubing enclosure • Stainless steel TCPS coupler, adaptor, and bushing

Certifications and Listings:

• Alarm unit is UL listed • 918 single channel alarm and clock gauge is Florida DEP EQ536

Electric Switch Ratings:

3 watt resistive load, 21VAC-210mA max / 30VDC-300mA max *Switch ratings are for resistive loads only. *Do not use for inductive loads.
