Morrison Bros Figs. 818, 818F, 818T, 818FT Clock Gauges
Item Series:
Morrison Bros Figs. 818, 818F, 818T, 818FT Clock Gauges
Downloadable Resources:
FIG 818 INSTALLATION INSTRUCTIONS
FIG 818 INSTALLATION INSTRUCTIONS (EVR)
Products Description & Features:
Description:

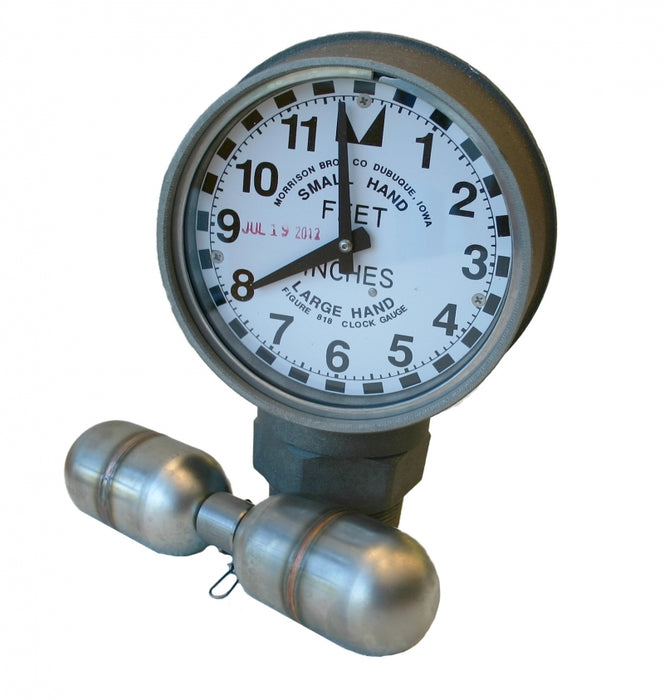

The Morrison clock gauge displays the liquid level reading of product stored in an aboveground tank. Measures the liquid level up to a maximum of 12 feet in height.
Standard Features:

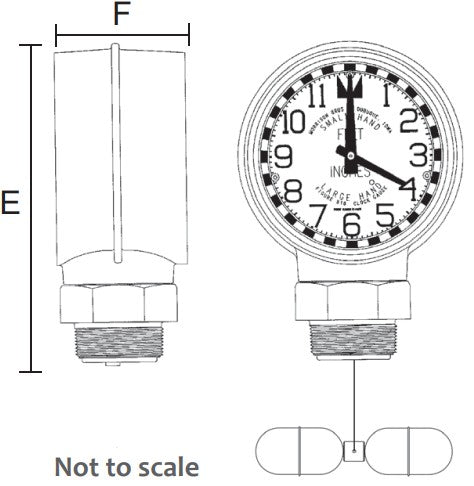

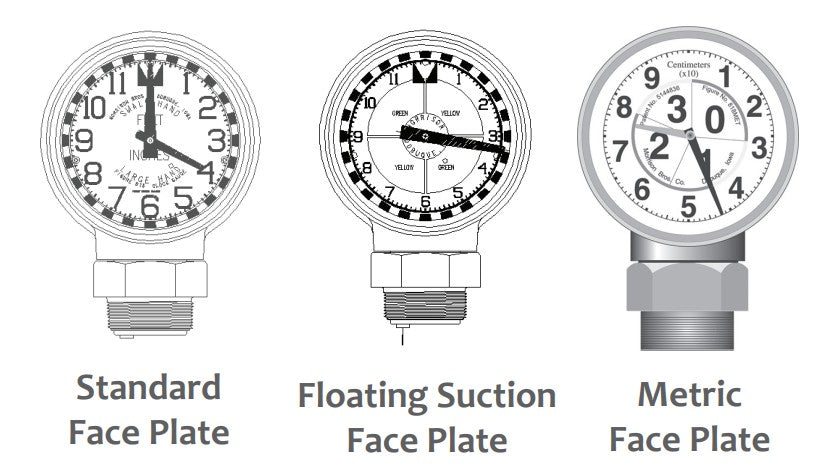

•Gauge readout in feet and inches: Hour hand (short hand) = feet Minute hand (long hand) = inches • Easy to install and calibrate in a 2″ tank top opening • Easily read from 30 feet away • Accurate to ⅛ of an inch • Vapor tight and fog-free construction • Gauge rotates 360° for placement in the desired orientation • Visual indicator decals for high level (red) and low level (green) are included with the dial face cover • Standard float fits through a 2″ schedule 40 pipe nipple; drop tube float fits through schedule 40 and schedule 80 pipe nipple • Optional drop tube style float for use with drop tube reduces the risk of float entanglement when turbulent tank conditions occur (compatible with Morrison
419 2” models) • 818T and 818FT series are compatible for use with Diesel Exhaust Fluid (DEF)
Construction Details:
818 & 818F, Body: Aluminum, Float: Stainless steel, Cable: Stainless steel, 818T & 818FT, Body: PTFE coated aluminum, Float: Stainless steel, Cable: Stainless steel
Certifications & Listings:
CARB EVR Executive Order VR-402; Florida DEP EQ-873

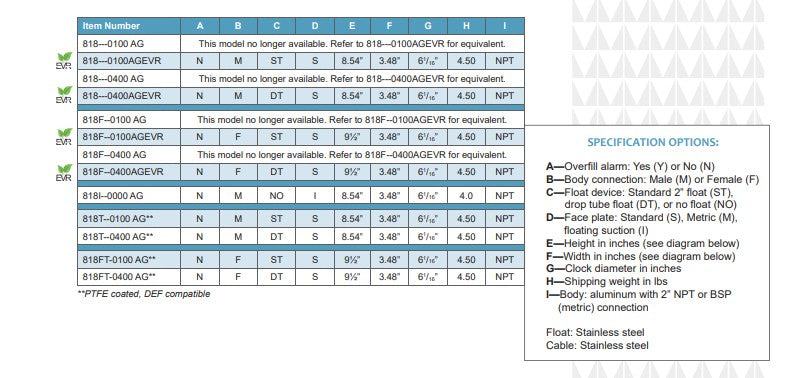

Product Ordering Information:
