Morrison Bros Fig. 718 Liquid Level Gauge
Downloadable Resources:
FIG 718 INSTALLATION INSTRUCTIONS
Product Ordering Information:
Products Description & Features:
Description:

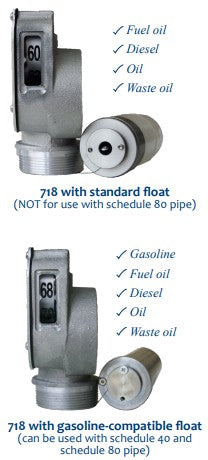

The Morrison 718 liquid level gauge is designed for measuring liquid
level in an aboveground storage tank. This gauge installs on top of the
tank and is activated by a float connected to a cable.
Features and Details:
(718) • Two models accommodate tank depths up to 72” and 108”• Measurement readout is inches to empty • 2” male NPT threads • Float installs through a 2” female threaded opening or a schedule 40 riser • Easy float length adjustment (1” or 2” increments)
• Vapor space sealed to prevent lens fogging • UV resistant liquid level tape
• Approximately 12” of extra cable to accommodate installations with riser pipes.
(718G) • Gallon models accommodate tanks of specific dimensions (see next page) •Measurement readout is gallons to empty.
(718M) • This model accommodates tank depths up to 275CM • Measurement readout is centimeters to empty • Easy float length adjustment (2.54CM or 5.08CM increments).
(718U) • This model measures ullage and accommodates tank depths up to 72”
• Measurement readout is inches to full.
Materials of Construction:
• Body... cast aluminum • Spring... 301 stainless steel • Shaft bushing... stainless steel
• O-ring... FKM • Cable... 30# braide microfilament • Float... Polypropylene and aluminum (standard float); aluminum (gas float) • Lens cover... Lexan.
