Morrison Bros Fig. 1618, 1618M (Mechanical/Metric Mechanical) Vertical Tank Gauges
Item Series:
Morrison Bros Fig. 1618, 1618M (Mechanical/Metric Mechanical) Vertical Tank Gauges
Downloadable Resources:
FIG 1618 INSTALLATION INSTRUCTIONS

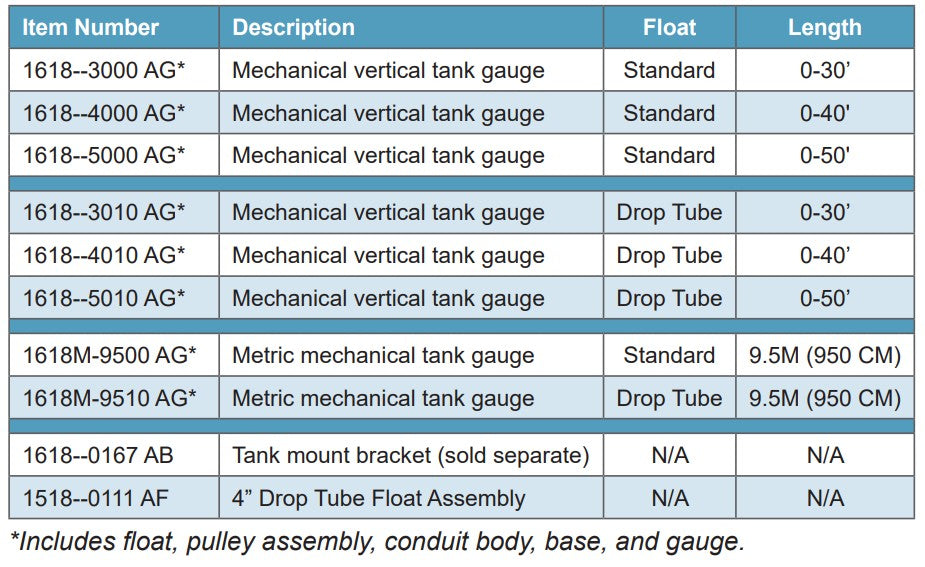

Product Ordering Information:
Products Description & Features:
Description:

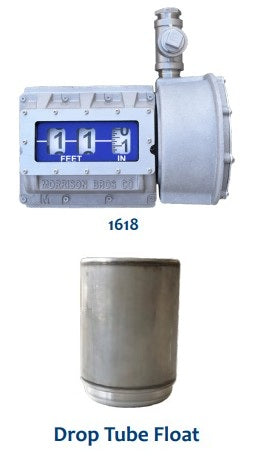

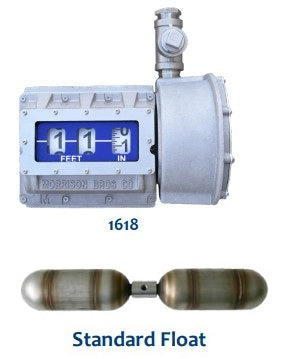

The 1618 mechanical tank gauge is designed for vertical tanks up to 50’ in
height and provides a readout in feet and inches at ground level.
Features and Details:
• 30’+ line of sight viewing distance • Easy to read from wide viewing angle • Easy to install with single vertical pipe connection • Easy to calibrate • Installs through 2” schedule 40 pipe or 2” tank bung (drop tube float models require a 4” tank opening) • Vapor is contained from the viewing area to prevent lens fogging • Mounting options ° Foot base

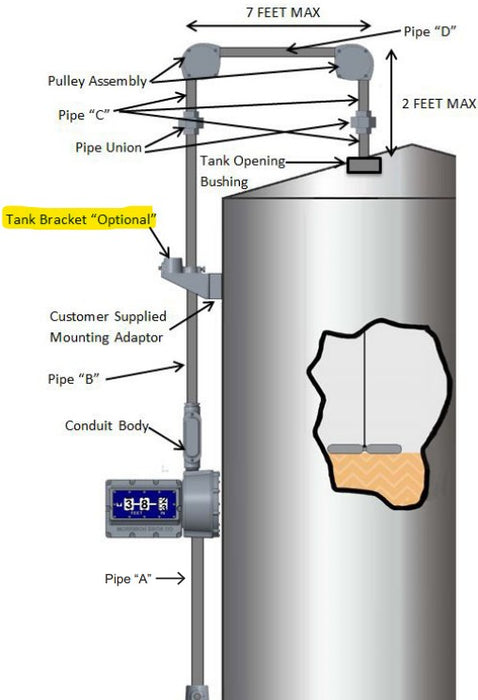

° Tank mount bracket for easy attachment to Uni-Strut Channel or other tank brackets

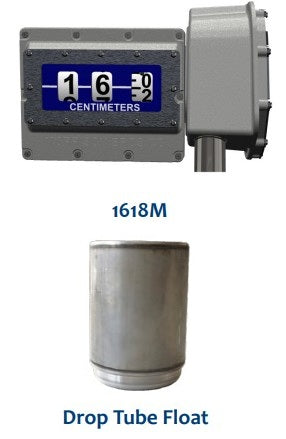

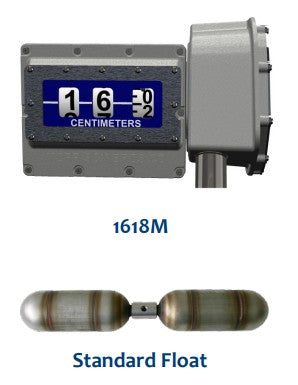

• 1618M...metric versions available for vertical tanks up to 9.5 meters (31’) in height, providing a readout in centimeters at ground level.
Materials of Construction:
• Body... Cast aluminum • Gears and gear cogs... Acetal • Hardware (including captive screws on front cover)... Stainless steel • Float... Stainless steel • Cable... Stainless steel • Pulleys... Cast aluminum • Spring... 301 stainless steel • Shaft bushing... Stainless steel • O-ring... FKM • Lens cover... Acrylic.
Code Compliance:
Florida DEP EQ-941
