Morrison Bros Fig. 1519, 1519M Mechanical Top Gauge With Level Alarm Relay Output
Item Series:
Morrison Bros Fig. 1519, 1519M Mechanical Top Gauge With Level Alarm Relay Output
Downloadable Resources:
FIG 1518 INSTALLATION INSTRUCTIONS

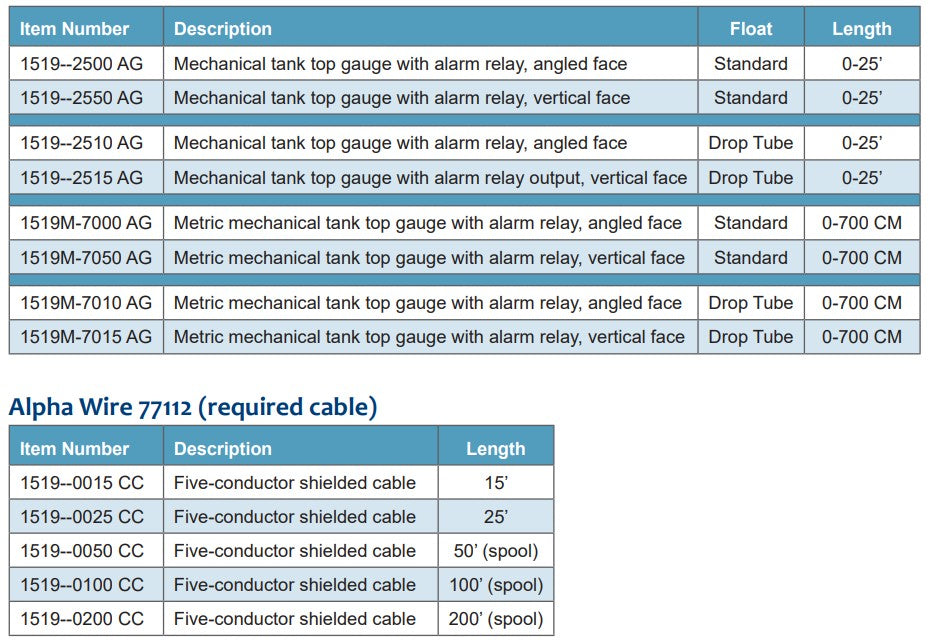

Product Ordering Information:
Products Description & Features:
Description:

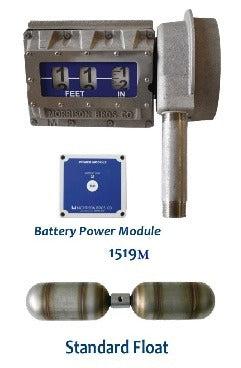

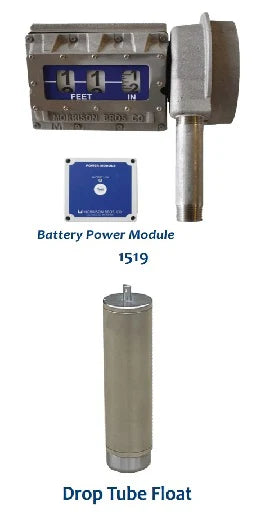

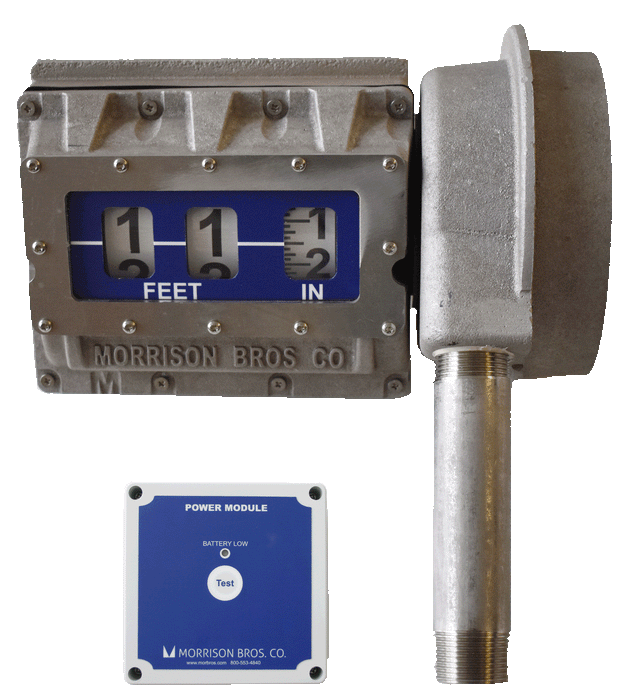

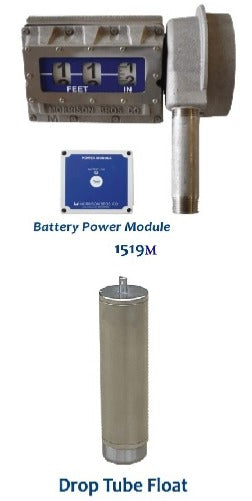

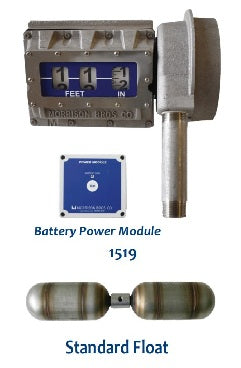

Designed for installation on top of horizontal and vertical tanks up to 25’
in height, the 1519 mechanical tank gauge provides a readout in feet and
inches and includes a single liquid level set point to activate an external
alarm box.
Features and Details:
• Viewable up to 25’ in tank height • Readout in feet and inches • Easy to read from wide viewing angle • Easy to install and calibrate • Installs through 2” schedule 40 pipe or 2” tank bung • Vapor tight to allow for standard tank pressure testing and sealing up
to 5 PSI • Vapor is contained from viewing area to prevent lens fogging • 1519M...metric versions available to mount on top of horizontal and vertical tanks up to 7 meters (23’) in height, providing readouts in centimeters.
Gauge with Relay Output:
• Desired alarm level is set within gauge head • Alarm level setting can be verified • The level alarm relay output wiring from the gauge has to be connected to an external alarm box (sold separately). Options include the 918 series and 918AC series alarm boxes.
Battery Power Module:
• Can be installed in any convenient location • One 3.6 volt lithium AA replaceable battery
• Anticipated battery life is 4 years • Low battery light indicator.
Alpha Wire 77112 (REQUIRED CABLE FOR CONNECTING GAUGE TO BATTER POWER MODULE)*:
• 5 Conductors • 22 AWG (7/30 Stranded) tinned copper • Foil shield with drain wire
• Temperature range: -50 to 150C. *Wire needs to be purchased to connect a 1519 gauge to the Battery Power Module. Separate wire is required from the gauge to external alarm. See external alarm specifications for wire requirements.
Materials of Construction:

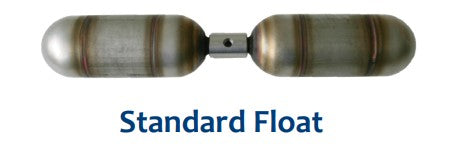

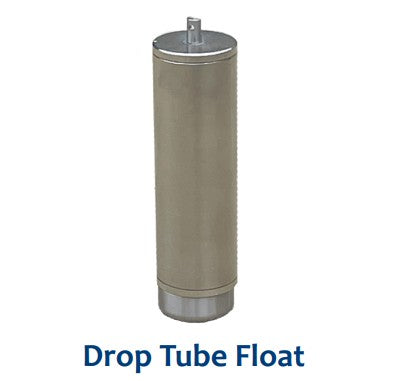

• Body... Cast aluminum • Gears and gear cogs... Acetal • Hardware (including captive screws on front cover)... Stainless steel • Float... Stainless steel • Cable... Stainless steel
• Spring... 301 stainless steel • Shaft bushing... Stainless steel • O-ring... FKM
• Lens cover... Acrylic • Power module enclosure... Polyester fiberglass.
Code Compliance:
UL/cUL 913; Florida DEP EQ-942
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
