Morrison Bros Fig. 1518, 1518M (Mechanical/Metric Mechanical) Tank Top Gauges
Item Series:
Morrison Bros Fig. 1518, 1518M (Mechanical/Metric Mechanical) Tank Top Gauges
Downloadable Resources:
FIG 1518 INSTALLATION INSTRUCTIONS

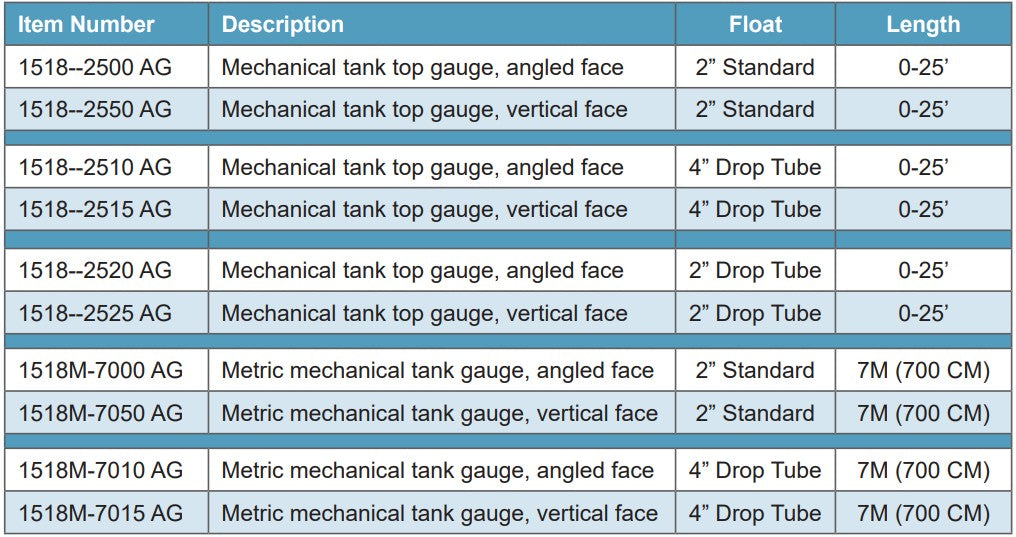

Product Ordering Information:
Products Description & Features:
Description:

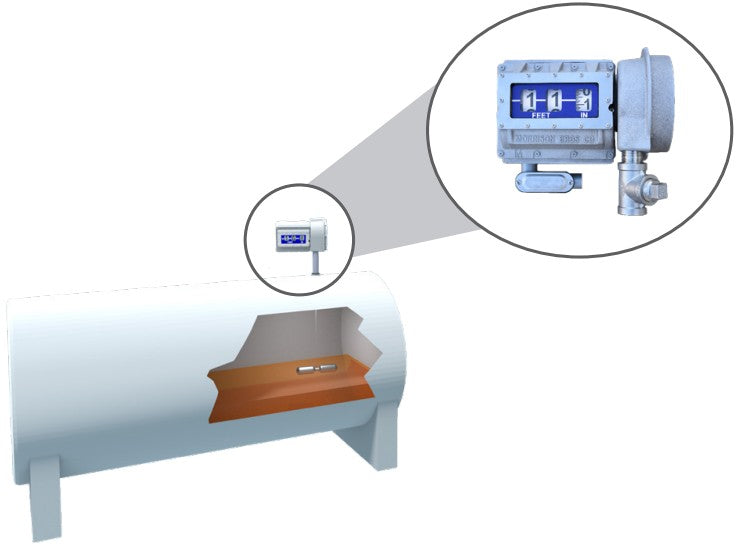

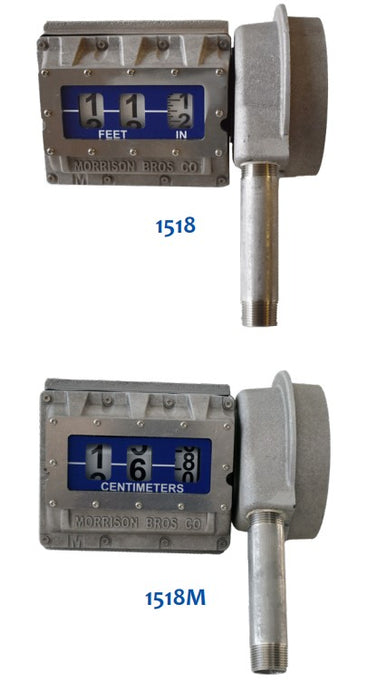

The 1518 mechanical tank gauge is designed to mount on top of
horizontal and vertical tanks up to 25’ in height and provides a readout in
feet and inches. (1” stainless steel pipe included).

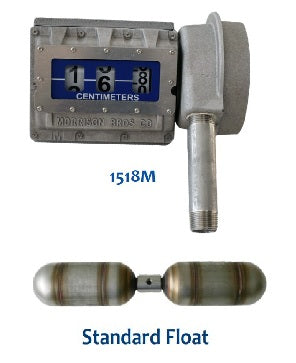

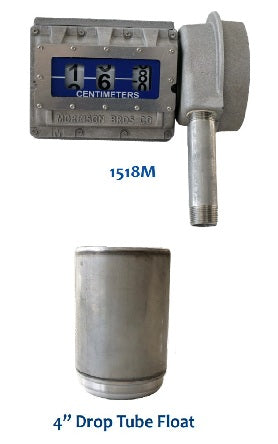

The 1518M metric mechanical tank gauge is designed to mount on top of horizontal and vertical tanks up to 7 meters (23’) in height and provides a readout in centimeters.
Features and Details:

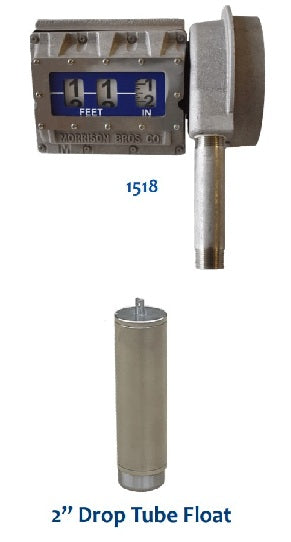

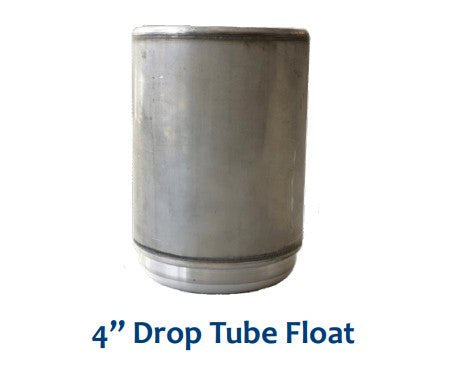

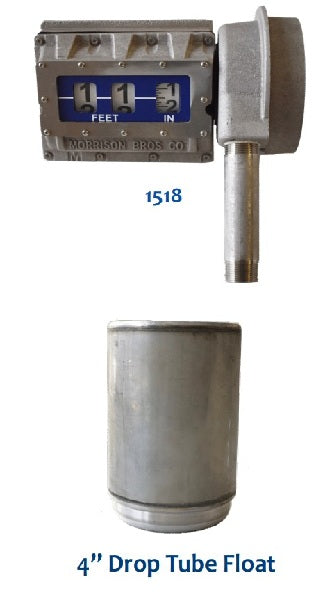

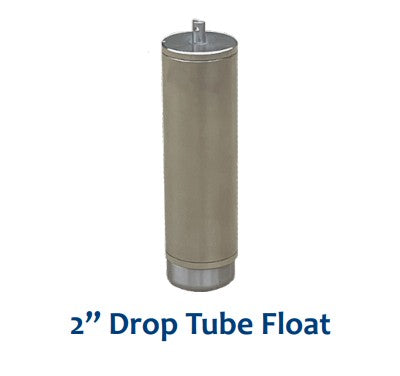

• Viewable up to 25’ in tank height • Easy to read from wide viewing angle • Easy to install and calibrate • Installs through 2” schedule 40 pipe or 2” tank bung (drop tube float

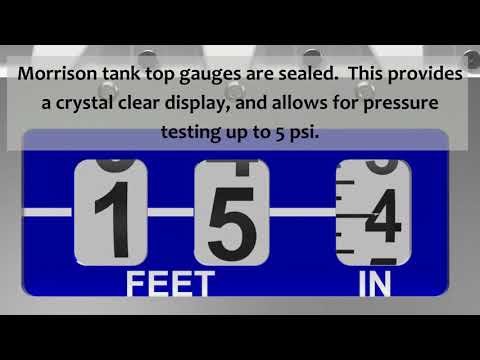

models require a 4” tank opening) • Vapor tight to allow for standard tank pressure testing and sealing up to 5 PSI. • Vapor is contained from viewing area to prevent lens fogging • 1518M...metric versions available to mount on top of horizontal and vertical tanks up to 7 meters (23’) in height, providing readouts in centimeters.
Materials Of Construction:
• Body... Cast aluminum • Gears and gear cogs... Acetal • Hardware (including captive screws on front cover)... Stainless steel • Float... Stainless steel • Cable... Stainless steel
• Spring... 301 stainless steel • Shaft bushing... Stainless steel
• O-ring... FKM • Lens cover... Acrylic.
Code Compliance:
Florida DEP EQ-942, UL/cUL 913; Florida DEP EQ-942.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
