Morrison Bros Fig. 1218C (1218 Electronic Tank Gauge External I/O Expansion)
Item Series:
Morrison Bros Fig. 1218C (1218 Electronic Tank Gauge External I/O Expansion)
Product Ordering Information:
Downloadable Resources:
FIG 1218C EXTERNAL I/O EXPANSION INSTALLATION INSTRUCTIONS
FIG 918AC/1218 ALARM AND SENSOR ACCESSORIES SPECIFICATION SHEET
FIG 1218C EXTERNAL I/O EXPANSION SPECIFICATION SHEET
Products Description & Features:
Description:

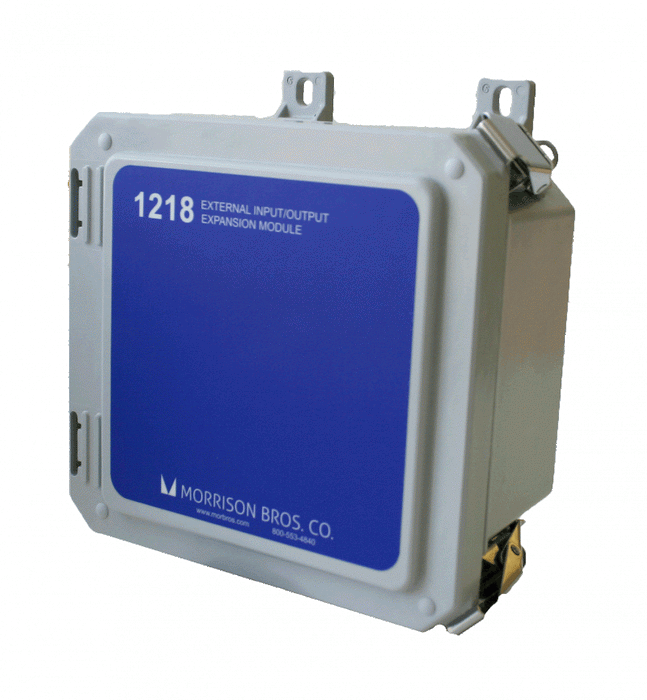

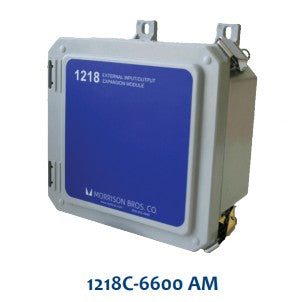

The 1218C External Input/Output Expansion Module provides an additional 6 digital inputs (OrdLoc) and 6 relay outputs (up to 2A and 250VAC) to the 1218C Electronic Tank Gauge. The expansion module inputs and outputs are configured from the 1218C web interface. The lockable enclosure is NEMA 4X indoor/outdoor weather protected.
Standard Features:
(Specifications) • Operating temperature range: -40°F to 140°F (-40°C to 60°C) • Humidity: 0% to 95% non-condensing • 100-240 VAC +/- 10%, 50/60 Hz.
(Materials Of Construction) • Console enclosure... Polyester fiberglass

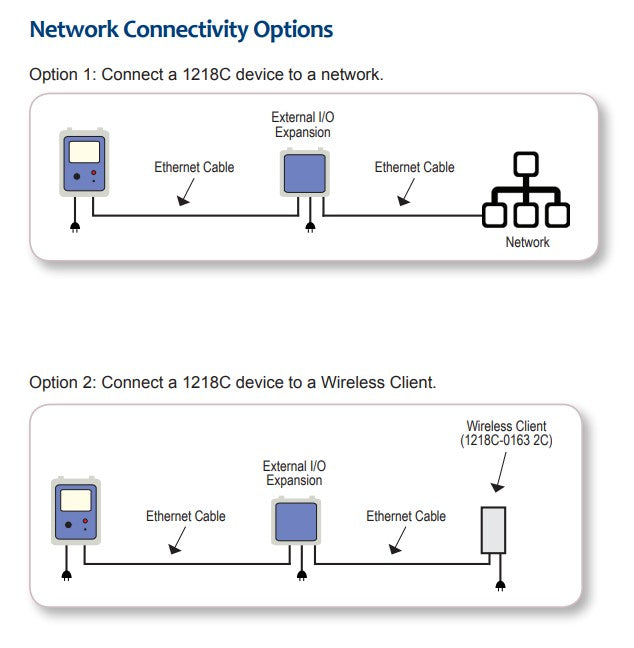

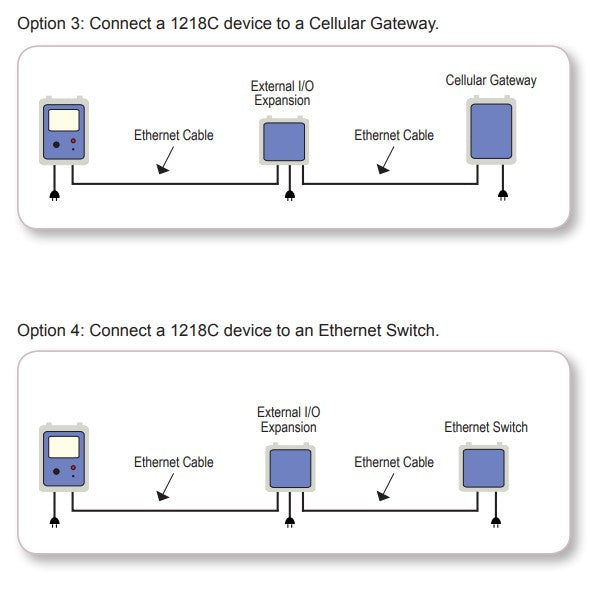

(Network Connectivity Options) • Option 1: Connect a 1218C device to a network • Option 2: Connect a 1218C device to a Wireless Client. • Option 3: Connect a 1218C device to a Cellular Gateway • Option 4: Connect a 1218C device to an Ethernet Switch. (See Photos For A Visual Description)
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
