Morrison Bros Fig. 1218C (1218 Electronic Tank Gauge Cellular Gateway)
Item Series:
Morrison Bros Fig. 1218C (1218 Electronic Tank Gauge Cellular Gateway)
Product Ordering Information:
Downloadable Resources:
FIG 1218C CELLULAR GATEWAY INSTALLATION INSTRUCTIONS
FIG 918AC/1218 ALARM AND SENSOR ACCESSORIES SPECIFICATION SHEET
FIG 1218C CELLULAR GATEWAY SPECIFICATION SHEET
Products Description & Features:
Description:
Provides a private internet connection (VPN) through 4G LTE cellular network (carrier can vary by location). The cellular gateway has a single Ethernet port which can be used to connect directly to a single device or to multiple devices through an Ethernet switch. The lockable enclosure is NEMA 4X indoor/outdoor weather protected and can support up to five 1218C consoles.
Components:
• Lockable NEMA 4X enclosure • Mounting bracket and connections for cellular device

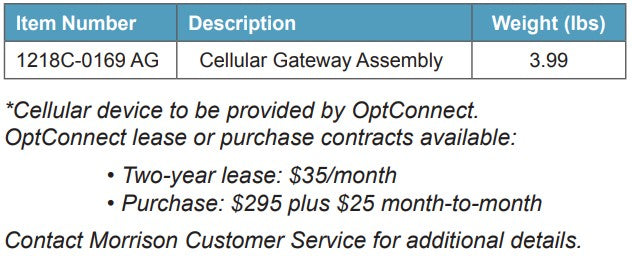

• Power supply for cellular device • Cellular device (provided by OptConnect; assembled by Morrison)• Two (2) 4G LTE antennas. *Cellular device to be provided by OptConnect.
OptConnect lease or purchase contracts available • Two-year lease: $35/month • Purchase: $295 plus $25 month-to-month. Contact Morrison Customer Service for additional details.
Specifications:
• Operating temperature range: -40°F to 140°F (-40°C to 60°C) • Humidity: 0% to 95% non-condensing • System console dimensions (H x W x D): 9⅜” x 7⅞” x 4⅝” • 100-240 VAC +/- 10%, 50/60 Hz • Supports up to five (5) 1218C consoles
Materials Of Construction:
• Console enclosure... Polyester fiberglass • Mounting bracket... zinc-coated steel (corrosion resistant)
Connectivity Options:
Option 1: Provide an internet connection to a single 1218C to allow email notifications and remote access. Option 2: Provide an internet connection to multiple 1218C devices at a single location.

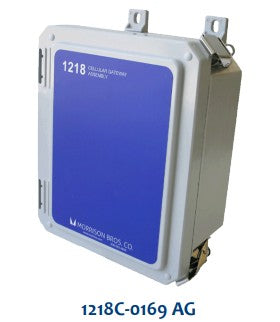

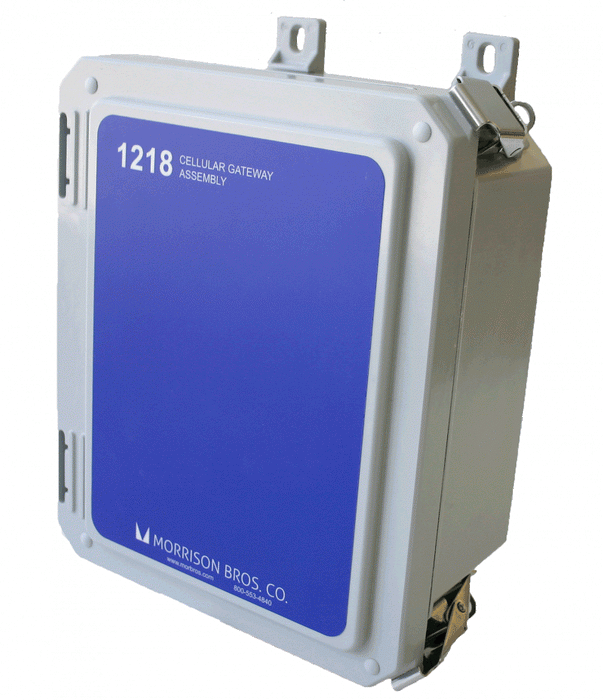

(Please See Photos For Visual Description)
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
