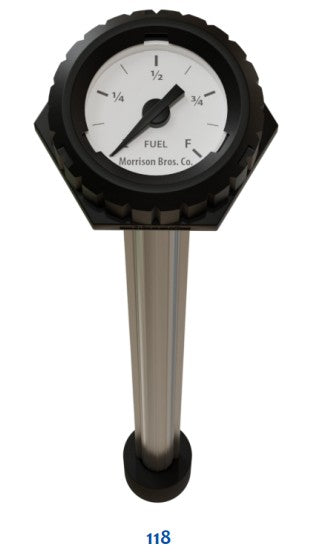

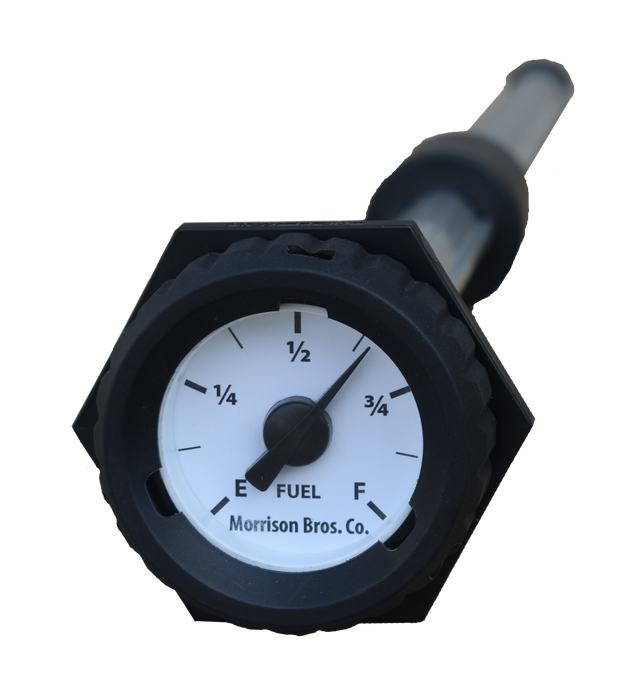

Morrison Bros Fig. 118 Mechanical Level Gauges

by Morrison Bros
$38.72
SKU 118---0725 1G

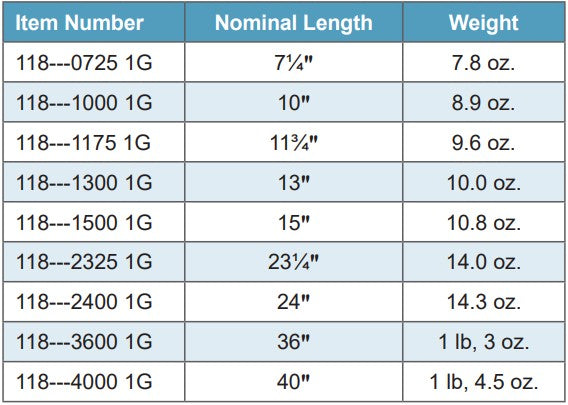

Item Numbers

Item Series:

Morrison Bros Fig. 118 Mechanical Level Gauges

Downloadable Resources:

FIG 118 SPECIFICATION SHEET

FIG118 INSTALLATION INSTRUCTIONS

Product Ordering Information:

Products Description & Features:

Description:

This mechanical level gauge is designed to monitor the tank liquid level. This gauge is intended for use in stationary or mobile fuel tanks as well as generator tanks containing fuels, oils, and water.

Features and Details:

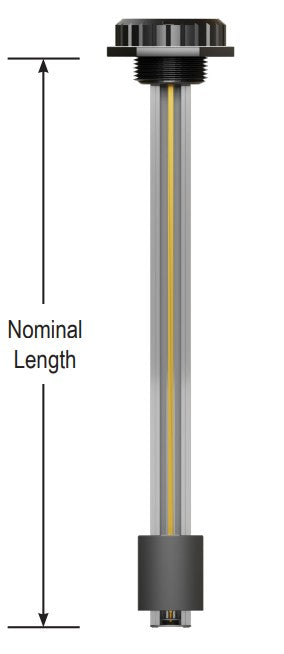

• 1½” male NPT connection• Available in a variety of gauge lengths from 7¼” to 40”
• Easy-to-read dial • Tight seal restricts vapor loss • Designed for harsh, high vibration environments as well as marine applications.

Materials Of Construction:

• Dial body... Engineered plastic • O-Ring... EPDM • Guide rail... Aluminum
• Shaft... Brass • Float... Engineered plastic.

Performance Specifications:

• Operating temperature -40°C to 60°C • Protection rating IP67

Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
