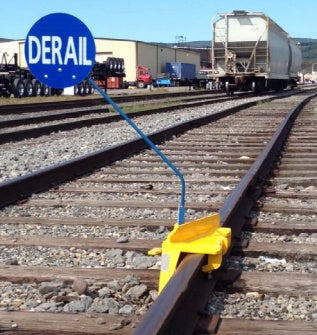

898020-201-01L Portable Derails, Yellow, Left Hand Throw, Blue Flag Included

$0.00
SKU 898020-201-01L

898020-201-01L Portable Derails, Yellow, Left Hand Throw, Blue Flag Included

Downloads

Spec Sheet

Specifications

  • Model #: 898020-201-01L
  • Derail Color: Yellow
  • Derail Direction: Left Hand Throw
  • Flag/Staff Color: Blue "Derail"
  • Weight: 47 lbs.

Features

  • Covers 75-141lb Rail
  • Easy Installation
  • Can be Padlocked to Rail Head
  • Made from High Strength Steel
  • Sits 2-7/8” Above Railhead
  • Complete with Flag and Staff
  • Other Derail Colors Available Upon Request

Description

A derail is a device that will derail any railroad rolling stock, including mainline locomotives. Employees working on or around the track with nearby rolling stock, must be protected by a derail. As the flange of the train wheel comes in contact with the derail, it lifts the wheel and deflects it away from the rail head, and thus, the wheels are halted by becoming imbedded in the track ballast.
