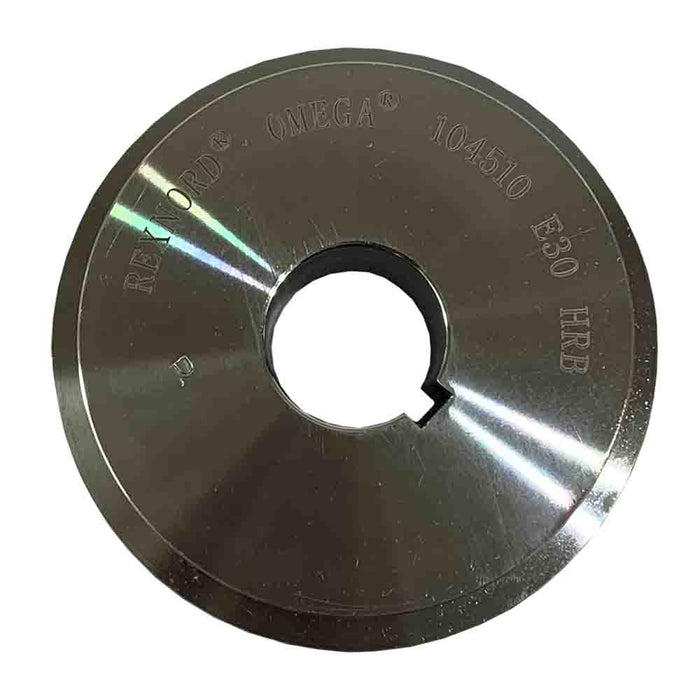

Rexnord Omega 7300665 30 HSB Hub Pump Coupler, 10287432, 2.250in. Bore

Rexnord Omega 7300665 30 HSB Hub Pump Coupler, 10287432, 2.250in. Bore (2-1/4")

Downloads:

Catalog

IOM Manual

Product Sheet

Quick Specs:

• Manufacturer:  Rexnord
• Brand:  Omega
• Part Number:  10287432
• Legacy Part Number:  7300665
• Coupling Size(s):  30, 30 HSB
• Coupling Type:  Elastomeric
• Hub Barrel Outside Diameter (Hub):  4.62 in
• Hub Bore Fit (Hub):  Clearance
• Hub Length (Hub):  2.310 in
• Hub Material (Hub):  Steel
• Hub Shoulder Diameter (Hub):  5.420 in
• Hub Straight Bore Diameter (Hub) [Max]:  2.2515 in
• Hub Straight Bore Diameter (Hub) [Min]:  2.2500 in
• Hub Straight Bore Diameter (Hub) [Nom]:  2.2500 in  (2-1/4")
• Hub Style (Hub):  Standard
• Keyway Depth (Hub):  0.2500 in
• Keyway Fit (Hub):  Commercial
• Keyway Width (Hub):  0.5000 in
• Number of Keyways (Hub):  1
• Number of Setscrews (Hub):  1

Description:

Rexnord E_ES_ES-R Series Straight Bore Style-Stock Bore (HSB) Hubs size(s) 30 with a 4.62-inch outside barrel diameter for elastomeric couplings.

*compatible with Blackmer X4BN pump systems- ask for more information on complete assemblies and individual hubs.
