Rexnord Omega 7300661 30 HSB Hub Pump Coupler, 10287428, 1.500in. Bore
$384.00
SKU 10287428
Rexnord Omega 7300661 30 HSB Hub Pump Coupler, 10287428, 1.500in. Bore (1-1/2")
Downloads:
Quick Specs:
- Manufacturer: Rexnord
- Brand: Omega
- Part Number: 10287428
- Legacy Part Number: 7300661
- Coupling Size(s): 30, 30 HSB
- Coupling Type: Elastomeric
- Hub Barrel Outside Diameter (Hub): 4.62 in
- Hub Bore Fit (Hub): Clearance
- Hub Length (Hub): 2.310 in
- Hub Material (Hub): Steel
- Hub Shoulder Diameter (Hub): 5.420 in
- Hub Straight Bore Diameter (Hub) [Max]: 1.5010 in
- Hub Straight Bore Diameter (Hub) [Min]: 1.5000 in
- Hub Straight Bore Diameter (Hub) [Nom]: 1.5000 in (1-1/2")
- Hub Style (Hub): Standard
- Keyway Depth (Hub): 0.1875 in
- Keyway Fit (Hub): Commercial
- Keyway Width (Hub): 0.3750 in
- Number of Keyways (Hub): 1
- Number of Setscrews (Hub): 1
Description:

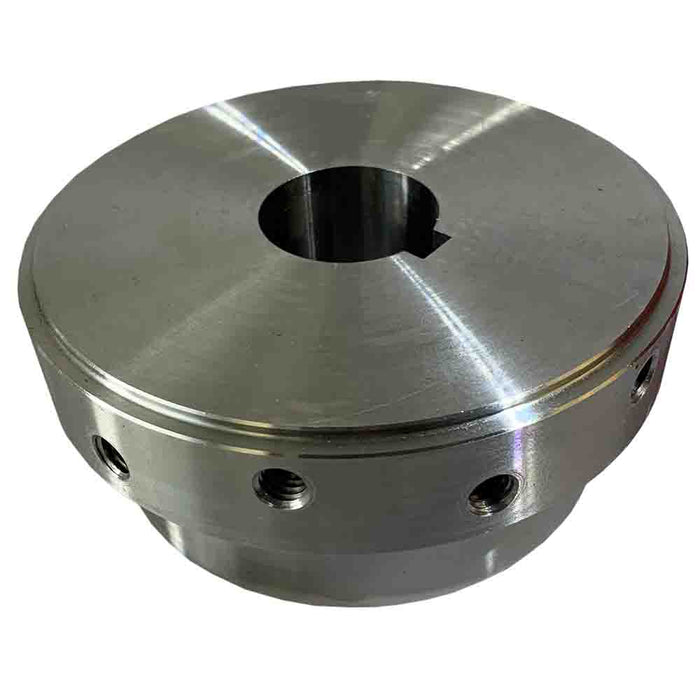

Rexnord E_ES_ES-R Series Straight Bore Style-Stock Bore (HSB) Hubs size(s) 30 with a 4.62-inch outside barrel diameter for elastomeric couplings.
*compatible with Blackmer XL4C, X4BN pump systems- ask for more information on complete assemblies and individual hubs.
