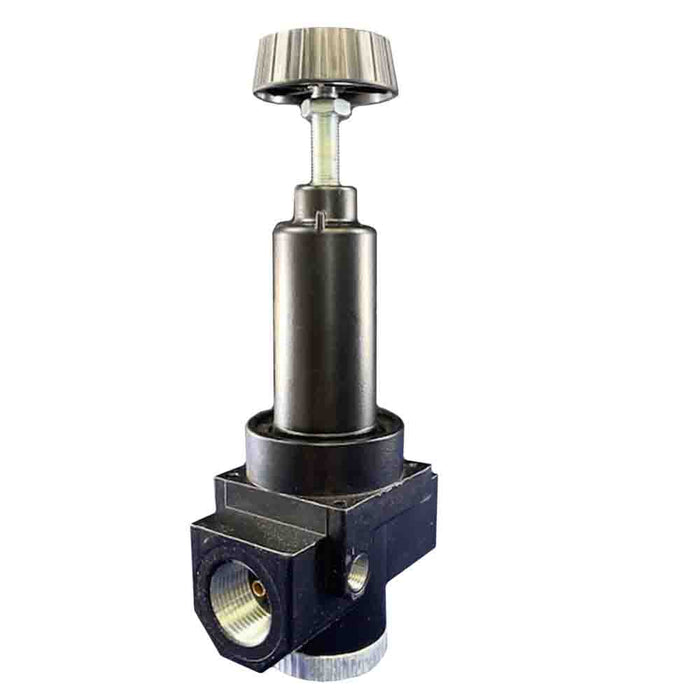

Dixon R40-0CR High Pressure High Flow 1-1/2" Pressure Regulators
Downloads
Specifications
- Part Number: R40-0CR
- Gauge Included: No
- Port Size: 2"
- Max Operating Pressure: 300 PSIG (20.7 Bar)
- Temperature Range: 32°F to 150°F (0°C to 65.5°C)
- Flow: 1200 SCFM
- Weight: 10.02 lbs.
Features
- 0-125 PSI adjusting range
- Self-relieving standard
- Piston operated
- Two 1/4" NPT gauge ports standard, can be used for additional outlet ports
Use
- To increase regulated pressure, pull adjusting knob up and turn clockwise.
- To reduce pressure, turn knob counter clockwise.
Safety
- FRL's are designed for air service only, unless otherwise indicated.
- SCFM ratings at 100 PSIG inlet pressure
