Dixon R40-0B-H00 High Pressure High Flow 1-1/2" Pressure Regulators R40-0BR

$475.00
SKU R40-0B-H00

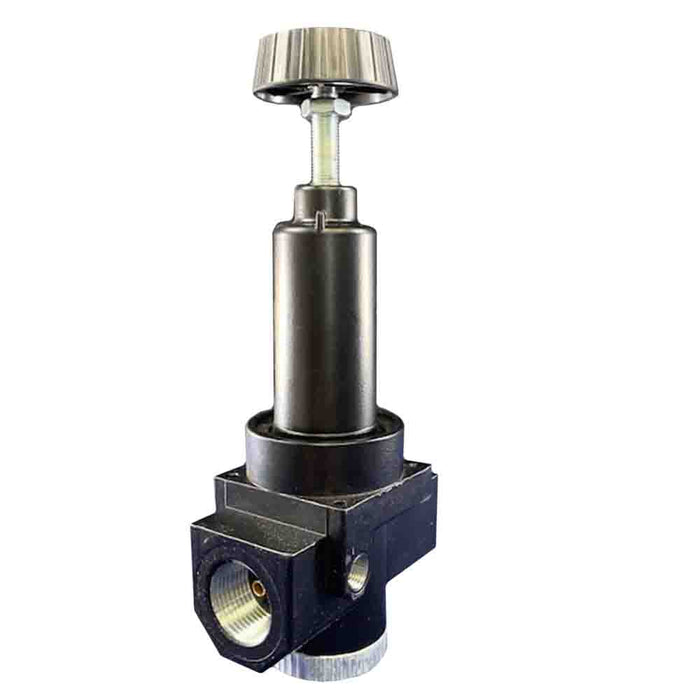

Dixon R40-0B-H00 High Pressure High Flow 1-1/2" Pressure Regulators

Downloads

Catalog Page

Spec Sheet

Installation Sheet

Specifications

  • Part Number: R40-0BR
  • Extended P/N: R40-0B-H000
  • Gauge Included: No
  • Port Size: 1-1/2"
  • Max Operating Pressure: 300 PSIG (20.7 Bar)
  • Temperature Range: 32°F to 150°F (0°C to 65.5°C)
  • Flow: 1200 SCFM
  • Weight: 10.85 lbs.

Features

  • 0-125 PSI adjusting range
  • Self-relieving standard
  • Piston operated
  • Two 1/4" NPT gauge ports standard, can be used for additional outlet ports

Use

  • To increase regulated pressure, pull adjusting knob up and turn clockwise.
  • To reduce pressure, turn knob counter clockwise.

Safety

  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 100 PSIG inlet pressure
