Square D 10 HP Motor Starter, 8536SCO3V02S
Original price
$1,115.00
Current price
$575.00
SKU 8536SCO3V02S

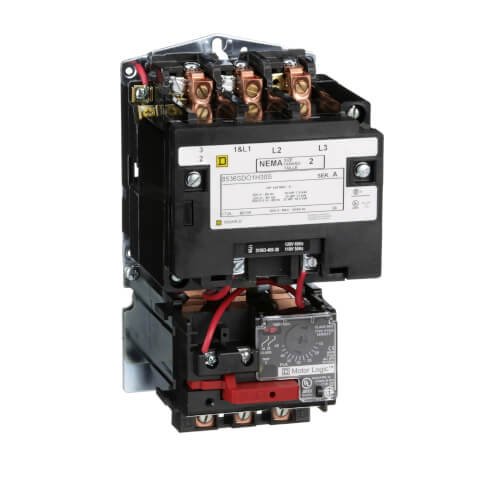

Square D 10 HP Motor Starter
Part Number: 8536SCO3V02S
Includes Amp overload shutdown.
Downloads:
Specifications:
| Product Type | Motor starter |
|---|---|
| Product Range | S |
| Starter Type | Non reversing |
| NEMA Size | 2 | ||||||
|---|---|---|---|---|---|---|---|
| Rated Current | 27 A | ||||||
| Number of Poles | 3P | ||||||
| Maximum Voltage Rating | 600 V AC | ||||||
| Phase | 3 phase | ||||||
| Type of Overload | Melting Alloy 3 | ||||||
| Horsepower Rating |
7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC |
||||||
| SCCR |
Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC |
||||||
| Coil Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
||||||
| Control Circuit Type | Separate control circuit | ||||||
| Control Units | No control units | ||||||
| Pilot Light | Without pilot light | ||||||
| Auxiliary Contacts | Without | ||||||
| Terminal Type | Screw clamp terminals | ||||||
|
| Enclosure Type | Not rated (open device) |
|---|---|
| Certifications | UL Listed CSA NEMA |
| Category | 21192 - 8502,36 SC,SD(NOT S*R,T,W) |
|---|---|
| Discount Schedule | CP1 |
| GTIN | 785901845119 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 4.30 lbs. |
| Country of origin | MX |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Not Compliant
|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information.
|
| PVC free | Yes |
| Warranty | 18 months |
|---|
