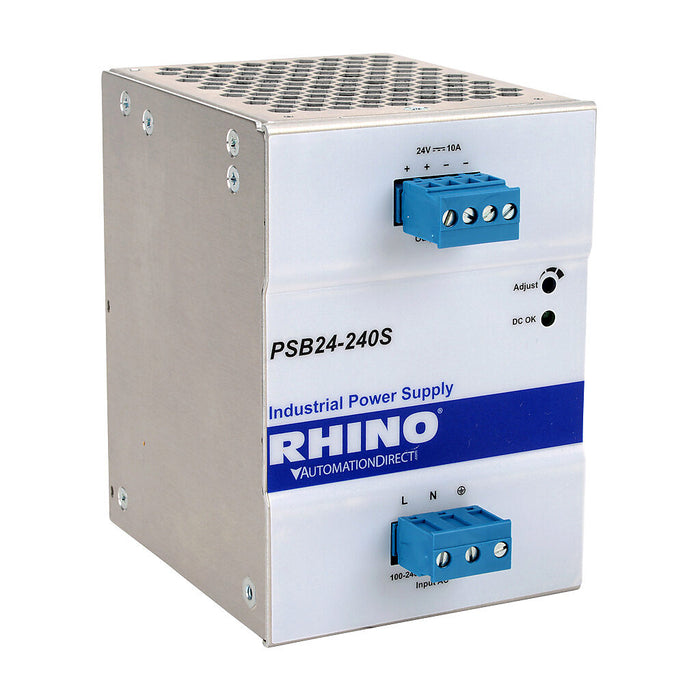

Rhino PSB24-240S 10A Power Supply, 24-28 VDC Output

by Rhino
$195.00
SKU PSB24-240S

Rhino PSB24-240S 10A Power Supply, 24-28 VDC Output

Downloads:

PSB Series Specifications

General:

RHINO SELECT PSB series switching power supply, 22-28 VDC output, 10A, 240W, 120/240 VAC or 120-375 VDC nominal input, 1-phase, enclosed, aluminum housing, 35mm DIN rail mount, removable screw terminal, hazardous location rated.

P/N:  PSB24-240S

Quick Specs:

Brand RHINO SELECT
Item Power supply
Series PSB
Power Supply Type Switching
Efficiency 90% @115 VAC, 92% @230 VAC
Output Configuration Single output
Nominal Output Voltage 24 VDC (adjustable)
Output Voltage Range 22-28 VDC
Amperage Rating 10A
Output Power 240W
Nominal Input Voltage 120/240 VAC or 120-375 VDC
Input voltage range 85-264 VAC/120-375 VDC
Number of Input Phases 1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
Remote On/Off No
Voltage Monitoring Yes
Enclosure Type Enclosed
Housing Material Aluminum
IP Rating IP20
Mounting 35mm DIN rail
Connector Type Removable screw terminal
NEC Class 2 No
Integrated UPS Battery Control No
Operating Temperature -25 to 80 deg C
Application Hazardous location rated

*Standard RYDM by CWI equipment.
