Item:

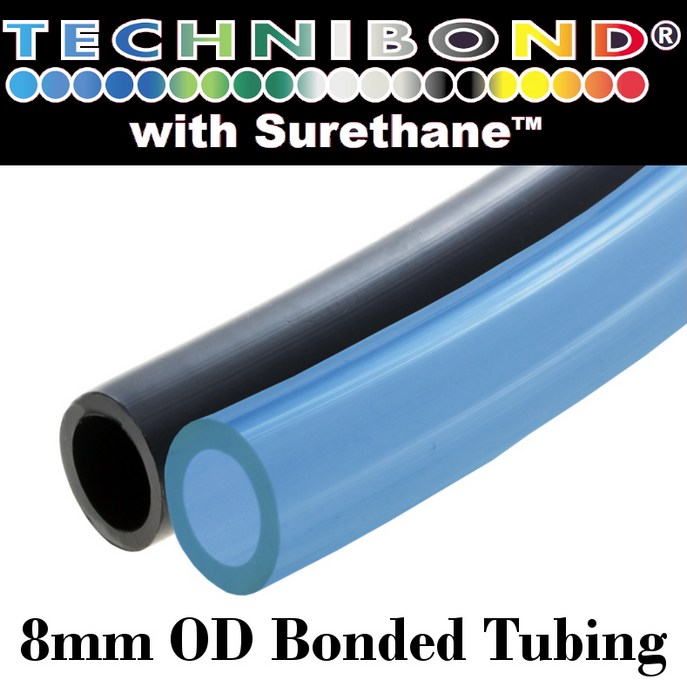

Straight Bonded Pneumatic Technibond® (8mm) Tubing
Downloads:
Chemical Resistance Chart
Specifications:
| 8mm OD Technibond® Models | 2 Bore (Black & Clear) | 2 Bore (Light Blue & Clear) | 3 Bore | 4 Bore |
| 50 ft | 2MP-08M-50-01 | 2MP-08M-50-02 | 3MP-08M-50 | 4MP-08M-50 |
| 10 m | 2MP-08M-A-01 | 2MP-08M-A-02 | 3MP-08M-A | 4MP-08M-A |
| 20 m | 2MP-08M-B-01 | 2MP-08M-B-02 | 3MP-08M-B | 4MP-08M-B |
| 50 m | 2MP-08M-C-01 | 2MP-08M-C-02 | 3MP-08M-C | 4MP-08M-C |
| 100 m | 2MP-08M-D-01 | 2MP-08M-D-02 | 3MP-08M-D | 4MP-08M-D |
| 200 m | 2MP-08M-E-01 | 2MP-08M-E-02 | 3MP-08M-E | 4MP-08M-E |
Quick Specs:
| Tube Size | 8mm x 5mm |
| Material | Polyurethane |
| Hardness | Shore 98A |
| Temperature Range | -40F to 120F |
| Working Pressure at 68°F | 175 psi |
| Vacuum Rating | 28" HG |
| Safety Factor | 3:1 |
| Tolerance | +/- .005" |
| Media | Gasses and Liquids |
| Compliance | RoHS |
| Certifications | NSF 51® (Meets NSF 61®) |
Manufacturer: ATP (MADE IN USA)
Type/Size: Straight Bonded Pneumatic Technibond® (8mm) Tubing
Description:
ATP's Technibond® series utilizes NSF 51® Certified Surethane® 98A polyurethane tubing to create multiple-bore bonded tubing.
CWI has been using (ATP) Advanced Technology Products for years because their products prove themselves reliable time after time. They rely on them to not burst, causing greater up time for your equipment.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
