Morrison Bros Fig. 178, 178AL, 178DT Threaded Style Fill Cap - Drop Tube
Item Series:
Morrison Bros Fig. 178, 178AL, 178DT Threaded Style Fill Cap - Drop Tube
Downloadable Resources:

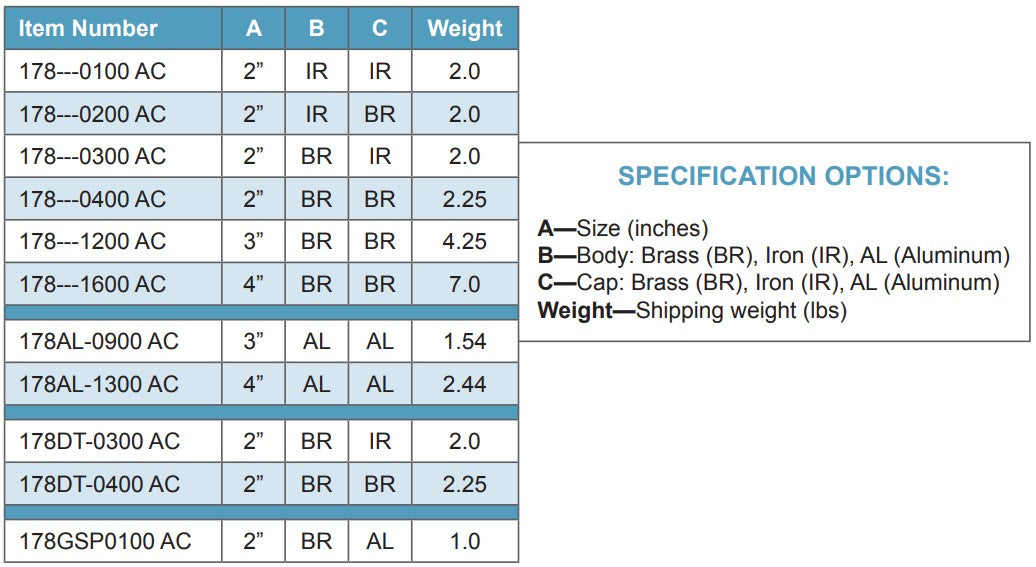

Product Ordering Information:
Products Description & Features:
Description:

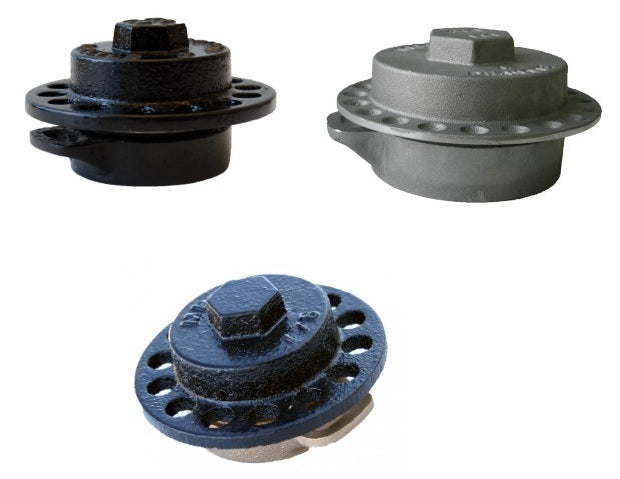

The 178 series tight seal threaded style fill cap is used for the fill port of small storage tanks. It is lockable with a padlock. The 178 iron caps are powder coated for a more durable finish. The 178DT is made for a drop tube with 2” straight pipe threads and
Buna-N gasket. The 178GSP is labeled “Gauge Stick Port.”
Standard Features and Details:
FIG 178 - Lockable with a padlock, Vapor tight when properly secured.

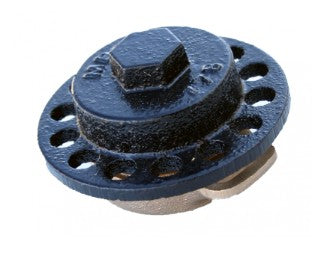

FIG 178DT - Lockable with a padlock, Vapor tight when properly secured, Secures Morrison model 419 drop tubes to fill riser.
Materials of Construction:
FIG 178 - Body: Brass (BB), or cast iron (IB) (powder coated black), Cap: Brass (BC), or cast iron (IC) (powder coated black), Gasket: Buna-N.
FIG 178DT - Made for a drop tube with 2″ straight pipe threads and Buna-N gasket.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
