ROHRflex PA6-D Conduit

$139.00
SKU 0237.202.006
Size

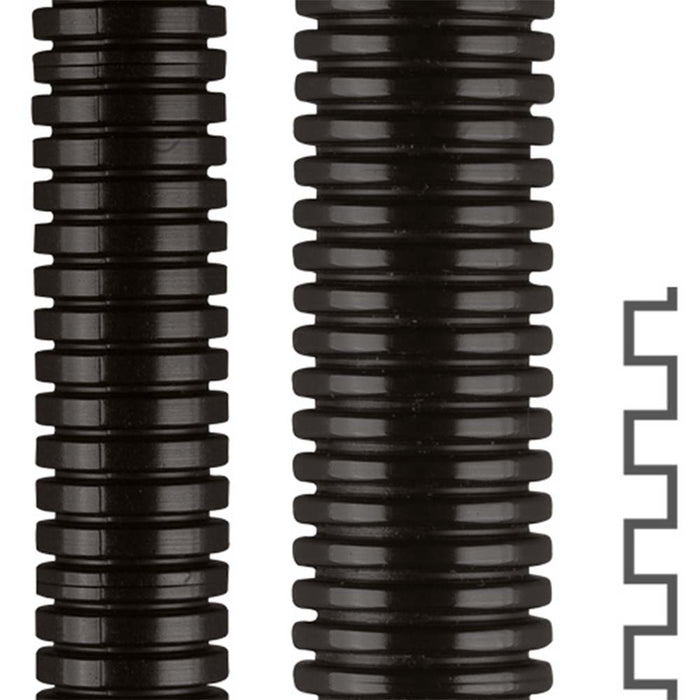

ROHRflex PA6-D Conduit

Corrugated conduit

  • Thick Wall
  • UL94VO
  • Crush Resistant
  • High Impact Resistance

Protective all-plastic tubing, internally and externally corrugated, thick-walled, fine or coarse profile, for heavy applications, V0 (UL 94), EN 45545-2 (HL3).

These heavy walled conduits are made specially for heavy indoor and outdoor applications with high mechanical stresses.  Internally and externally corrugated PA6 conduit.  Designed for electrical installations and applications on machinery and general-purpose applications acc. to DIN EN 60204 and UL 1696.  For indoor and outdoor applications.

Material: PA 6 plastics

Temperature: -40 C to 150 C

Protection Class: IP68, IP69K

Sizes and PN:

Size Product Number Reel Size (ft)
1/4" 0237.202.006 164
5/16" 0237.202.010 164
3/8" 0237.202.012 164
1/2" 0237.202.016 164
3/4" 0237.202.023 164
1" 0237.232.029 82
1-1/4" 0237.232.036 82
1-1/2"  0237.232.048 82

Applications:

  • Automation
  • railway
  • Shipbuilding
  • Electrical installations
  • Automotive
  • Machinery and equipment
  • Renewable energies

Properties:

  • High cross pressure strength and high impact resistance
  • air- and liquid-tight
  • oil resistant up to + 80°C
  • benzine resistant
  • widely resistant to acid and solvents
  • free of silicone, cadmium, halogen
  • flame retardant UL 94 VO
  • black excellent UV-resistant
  • DIN 5510, part 2
  • UL 1696 / CSA C22.2 No 227.3

Call for product discounts and alternative reel lengths today!
