ROHRflex PA12-D Conduit

$183.00
SKU 0258.202.006
Size

ROHRflex PA12-D Conduit

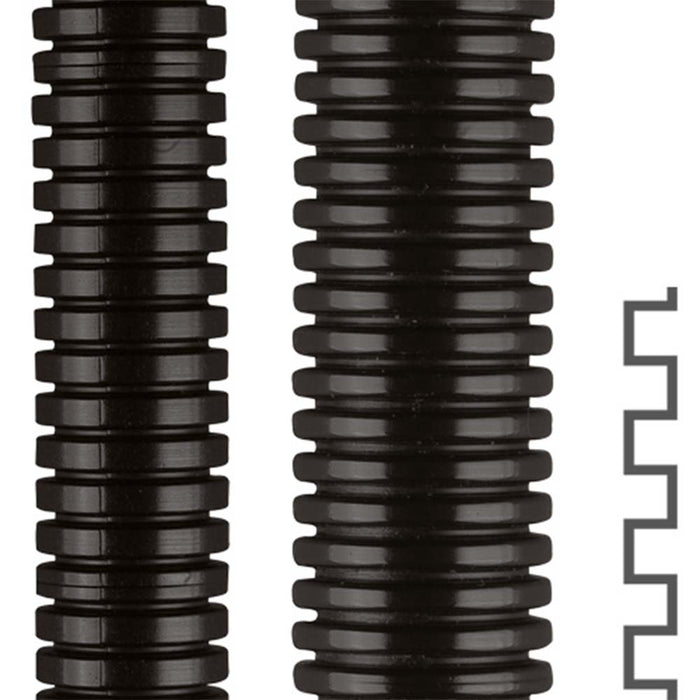

Corrugated conduit

  • For high stress areas
  • Thick wall
  • UL94V2
  • High UV resistance

Protective all-plastic tubing, internally and externally corrugated, thick-walled, fine or coarse profile, for heavy applications, outdoor area, V2 (UL 94), EN 45545-2 (HL2).

These heavy walled, highly flexible conduits are made specially for heavy indoor and outdoor applications with high mechanical stresses and are specially designed for applications requiring frequent reversed bending and continuous motion, e.g.  for robotics.  Internally and externally corrugated PA12 conduit.  Designed for electrical installations and applications on machinery and general-purpose applications acc. to DIN EN 60204 and UL 1696.  Also used for static and dynamic applications indoors and outdoors where additional cross pressure strength and high alternate bending strength is required.

Material: PA 12 plastics

Temperature: -50 C to 130 C

Protection class: IP68, IP69K

Sizes and PN:

Size Product Number Reel Size (ft)
1/4" 0258.202.006 164
5/16" 0258.202.010 164
3/8" 0258.202.012 164
1/2" 0258.202.016 164
3/4" 0258.202.023 164
1" 0258.232.029 82
1-1/4" 0258.232.036 82
 1-1/2" 0258.232.048 82

Applications:

  • Automation
  • railway
  • Shipbuilding
  • Electrical installations
  • Automotive
  • Machinery and equipment
  • Renewable energies

Properties:

  • high alternate bending strength
  • high cross pressure strength
  • air- and liquid-tight
  • oil resistant and benzine resistant
  • widely resistant to acid and solvents
  • free of silicone, cadmium, halogen
  • highly self extinguishing
  • flame retardant UL 94 V2
  • black excellent UV-resistance
  • DIN 5510, part 2
  • UL 1696 / CSA C22.2 No 227.3

Call for price discounts and alternative reel size options.
