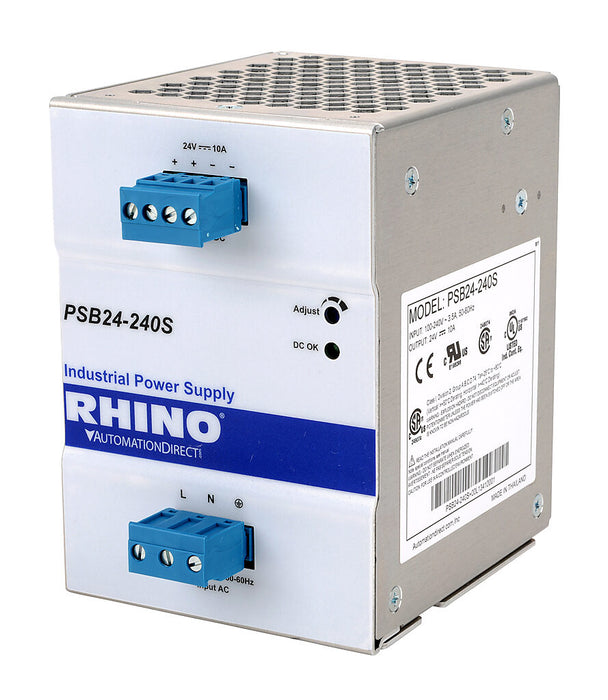

Rhino PSB24-240S 10A Power Supply, 24-28 VDC Output
Downloads:
General:
RHINO SELECT PSB series switching power supply, 22-28 VDC output, 10A, 240W, 120/240 VAC or 120-375 VDC nominal input, 1-phase, enclosed, aluminum housing, 35mm DIN rail mount, removable screw terminal, hazardous location rated.
P/N: PSB24-240S
Quick Specs:
| Brand | RHINO SELECT |
| Item | Power supply |
| Series | PSB |
| Power Supply Type | Switching |
| Efficiency | 90% @115 VAC, 92% @230 VAC |
| Output Configuration | Single output |
| Nominal Output Voltage | 24 VDC (adjustable) |
| Output Voltage Range | 22-28 VDC |
| Amperage Rating | 10A |
| Output Power | 240W |
| Nominal Input Voltage | 120/240 VAC or 120-375 VDC |
| Input voltage range | 85-264 VAC/120-375 VDC |
| Number of Input Phases | 1 |
| Protection Type(s) |
|
| Remote On/Off | No |
| Voltage Monitoring | Yes |
| Enclosure Type | Enclosed |
| Housing Material | Aluminum |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail |
| Connector Type | Removable screw terminal |
| NEC Class 2 | No |
| Integrated UPS Battery Control | No |
| Operating Temperature | -25 to 80 deg C |
| Application | Hazardous location rated |
*Standard RYDM by CWI equipment.
