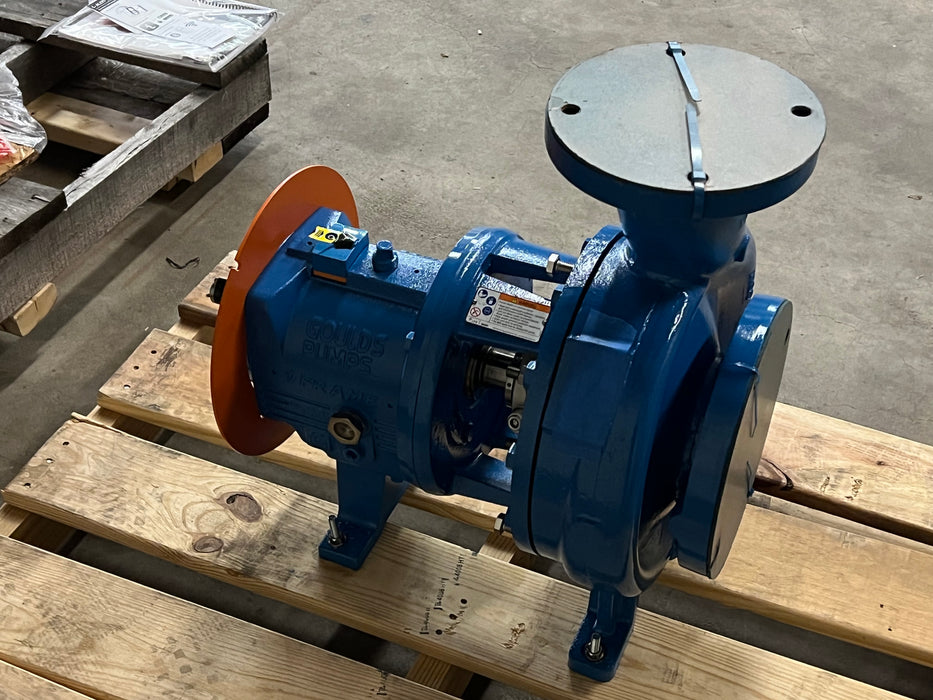

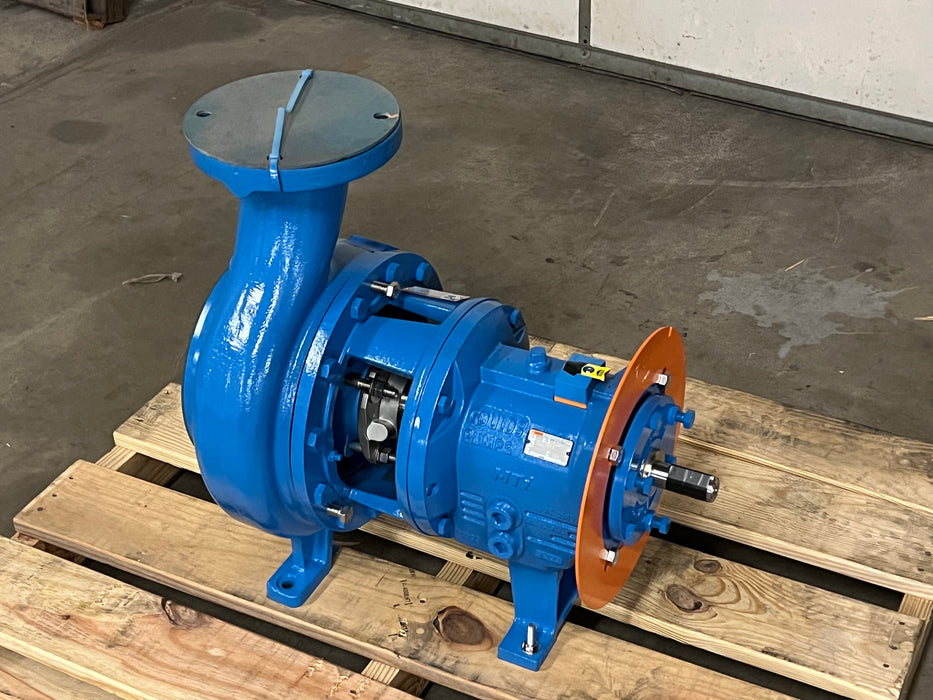

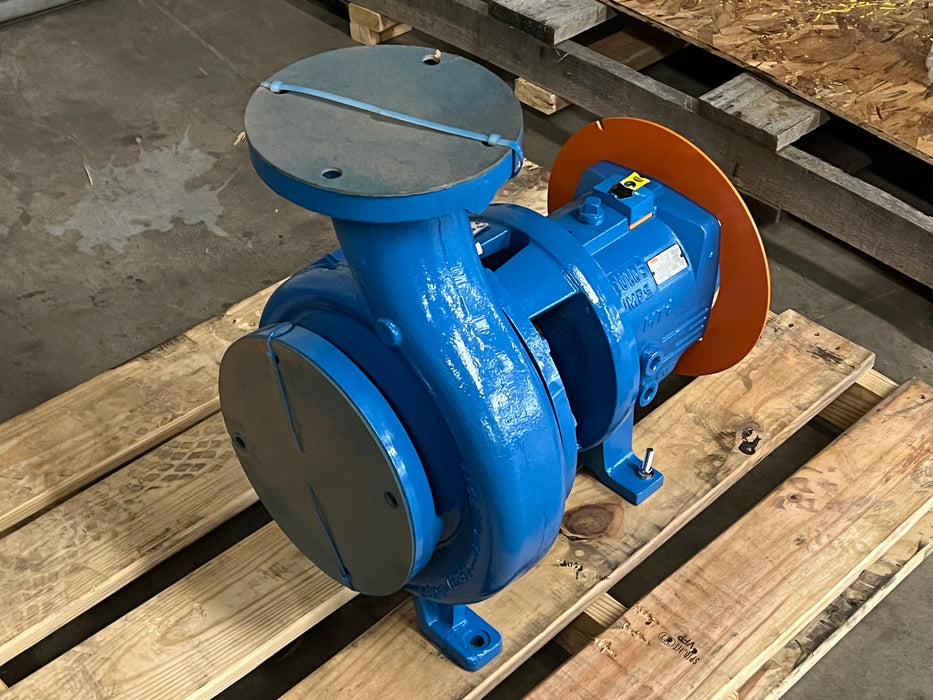

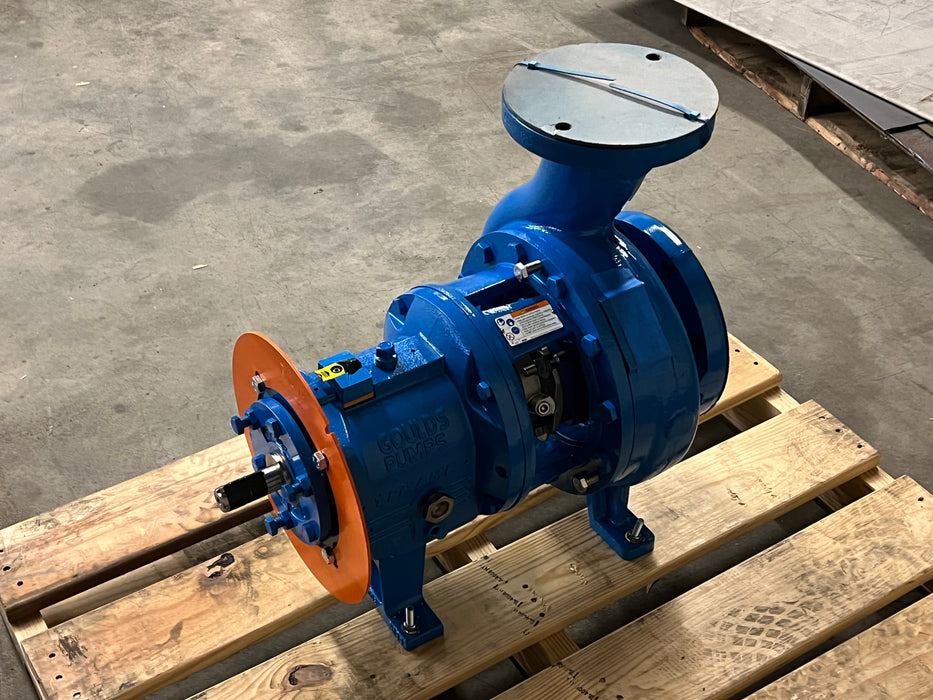

Goulds Diesel Fuel Centrifugal Pump, 3196 MTi Size: 4x6-10G, Pump Only

$14,850.00
SKU 3196MTi-4x6

Goulds Diesel Fuel Centrifugal Pump, 3196 MTi Size: 4x6-10G, Pump Only

Downloads:

IOM

Brochure

Quick Specs:

  • Manufacturer:  Goulds (Xylem/ITT)
  • MODEL: 3196 MTi SIZE: 4x6-10G QTY: 1

Operating Conditions:

SERVICE: Fuel Loading Pump

LIQUID: #2 Fuel Oil , Rated Temp. 70.0 deg F, SP.GR 0.880,

Viscosity 3.520 cp, Rated/Max. suction pressure 10.0 / 10.0

psi g

CAPACITY Rated: 960.0 gpm

HEAD: 230.0 (ft)

AMBIENT TEMP: Min//Max Temp. 70.0/70.0 deg F

Performance at 3560 RPM per HI 14.6 1B

PUBLISHED EFFY: 71.5% (CDS)

RATED EFFY: 71.0% with contract seal

RATED POWER: 70.6 hp (incl. Mech. seal drag 0.44). (Run out 78.2 hp)

NPSHR: 27.5 ft (available NPSH is 30.0 ft)

DISCH PRESSURE (R): 100.0 psi g (115.0 psi g @ Shut off) based on 10.0 psi g rated suction pressure

DISCH PRESSURE: (Max)115.0 psi g based on 10.0 psi g max suction pressure

PERF. CURVE: 5379-2 (Rotation CW viewed from coupling end)

SHUT OFF HEAD: 275.7 ft

MIN. FLOW: Continuous Stable: 403.9 gpm Hydraulic: 403.9 gpm

Thermal: N/A

Materials:

CONSTRUCTION: Ductile iron

CASING: Ductile iron (max.casing pressure @ rated temp. 250.0 psi g)

ST.BOX COVER: Ductile iron

IMPELLER: Ductile iron - Open (8.3750 in rated, max=10.2500 in, min=7.5000 in)

CASING GASKETS: Aramid Fiber with EPDM Rubber

IMPELLER: O-RING Teflon

SHAFT MATERIAL: 316SS

SHAFT TYPE: Less sleeve design- solid shaft

LUBRICATION: Flood oil

SEAL CHAMBER: Taper bore plus with axial ribs

GLAND: 316SS Flush quench and drain

BEARINGS: 6309 (Inboard) / 3309 (Outboard)

Sealing Method:

MECHANICAL SEAL: John Crane 5611Q X(1)F(50)1XO(58)1 (Carbon vs Silicon Carbide with Viton) - (Cartridge -

Single)

Casing Connections:

Casing drain tapped

Flanges:

150# flat face

Frame Connections:

Bearing frame drain

Frame cooler access

Oil fill connection

Frame Features:

Ductile iron frame adapter

Inpro VBXX-D Hybrid Bearing Isolators

Premium Severe Duty Thrust Bearings

Assembly and Testing:

Casing & Cover - Non witnessed hydro test, components, with Certificate of Conformance

Impeller balanced to ISO G6.3

Painting:

Goulds Blue standard painting

Warranty:

5 Year Extended Warranty (All the components, manufactured by ITT Goulds pumps, in the liquid end and power end are

covered).
