Item Series:
Morrison Bros Fig. 610X Hose Retriever
Downloadable Resources:
FIG 610X INSTALLATION INSTRUCTIONS
FIG 610 AND 611 BROCHURE FOR VIEWING

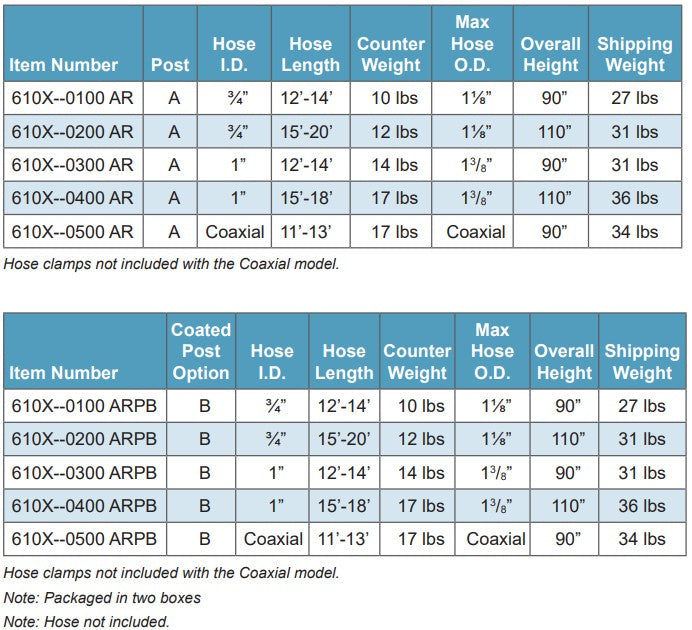

Product Ordering Information:
Products Description & Features:
Description:

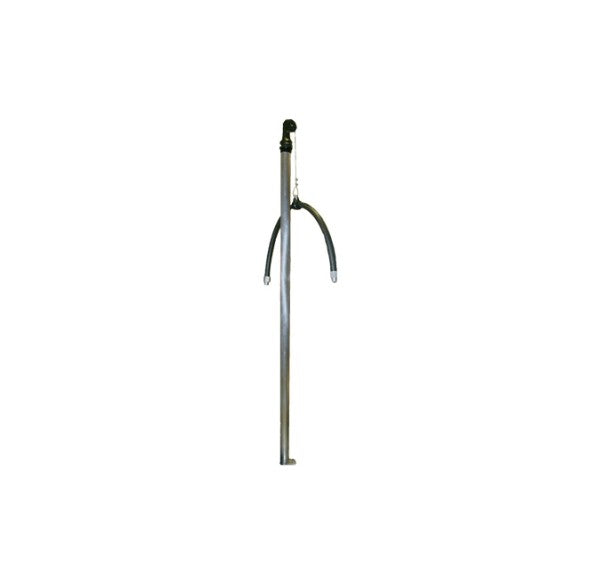

The 610X hose retriever assembly suspends the fueling hose above the dispenser eliminating kinks and tangles while keeping the hose off the drive. *610X comes with post base. *610XB comes with square base. NOTE: Hose not included.
Standard Features:
• Smooth operation—counterweight assemblies matched with specified hose diameters and lengths • 360º rotating retriever head assists the operator in positioning the hose to the fueling point • Pre-cut post and all required components included • Minimal maintenance—durable construction and minimal moving parts.

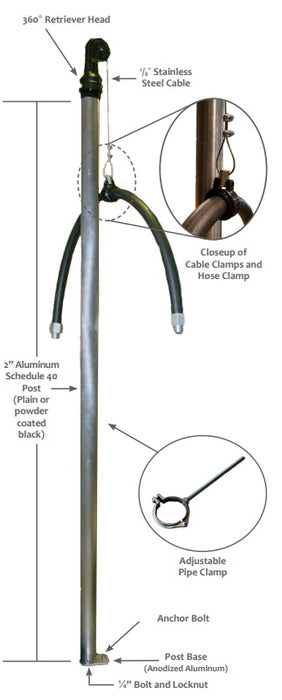

Construction Details:
• Cast iron retriever head (e-coated black) • Stainless steel cable and connectors

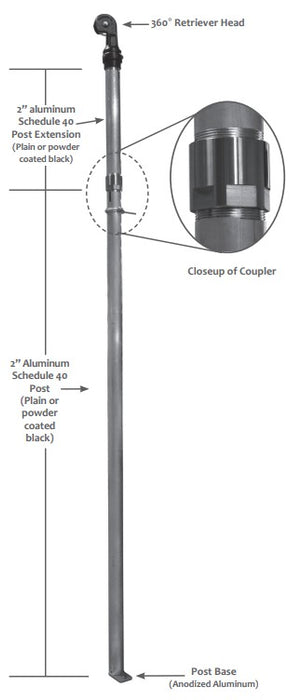

• Aluminum pulley • Stainless steel ball bearing swivel • Passivated aluminum mounting base with ⅜-16x2¾ stainless steel anchor bolts • Aluminum schedule 40 post (A)
(powder coated black (B) optional) included • Steel counterweights • Plastic hose clamp (¾” or 1” sizes) with stainless steel connector • Adjustable pipe clamp secures post to dispenser.
Please inquire about product information, installation services, bulk pricing, variable lengths, quotes or any questions you may have!
